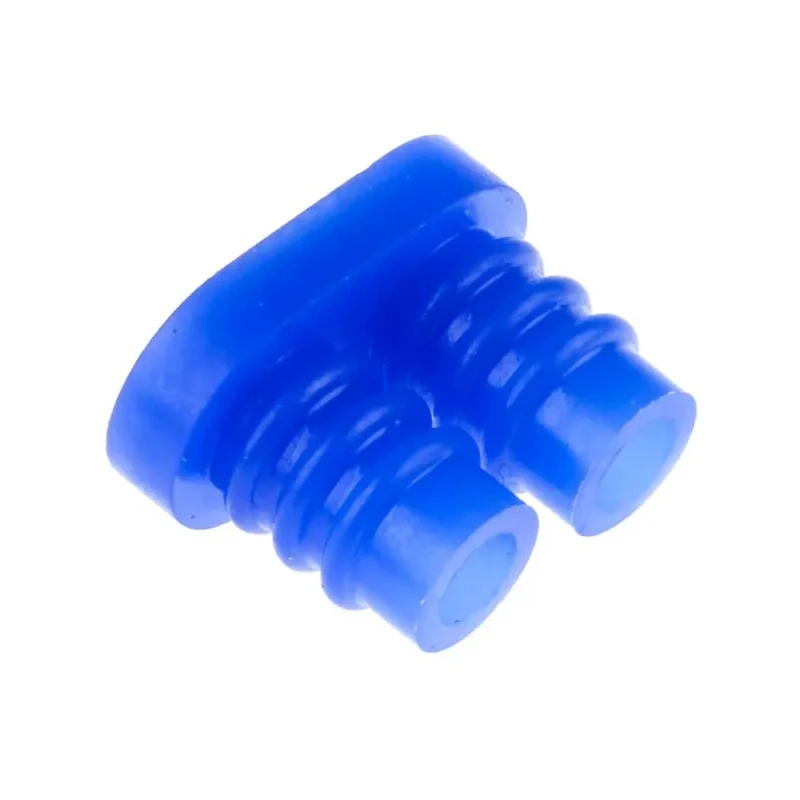

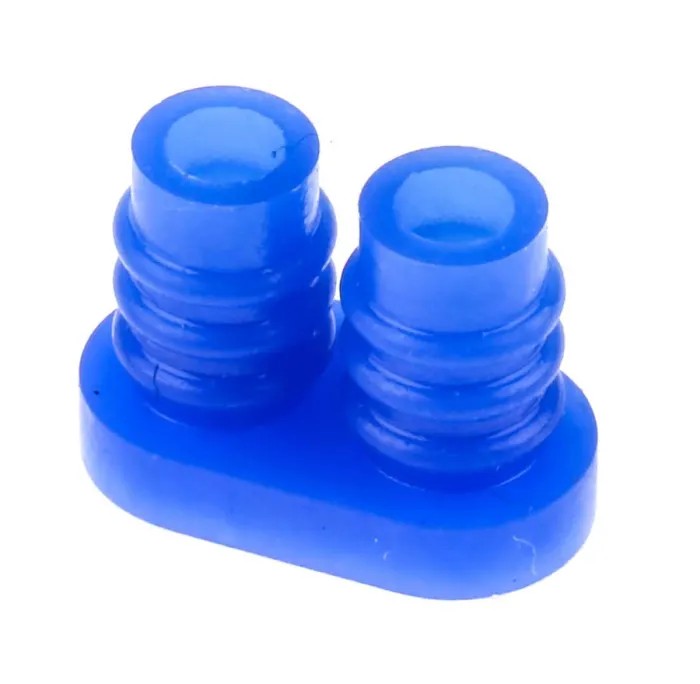

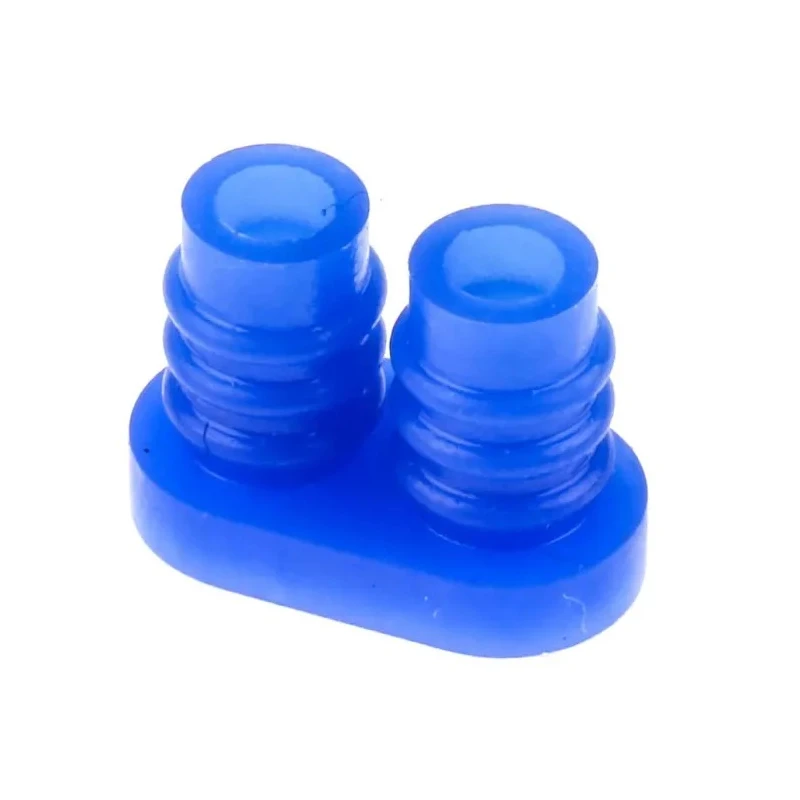

TE Connectivity MATE-N-LOK Series Connector Seal, 10 A Current, Suitable for 16 AWG Min to 24 AWG Max Wiring 794270-1
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Current | 10A |
| Model | 794270-1 |
| Contact Material | Tin Plated, Copper Alloy |
| Series | MATE-N-LOK |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | Housing |
| Contact Plating | Phosphor, Gold, Bronze, Brass, Tin |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 24AWG |
| TE Connectivity HDP20 Series Connector Seal, 28 AWG Min Crimp, 18 AWG MaxBrand | TE Connectivity |
Key Features
- Constructed with tin plated copper alloy contacts ensuring reliable conductivity.
- Contact plating includes phosphor, gold, bronze, brass, and tin for superior corrosion resistance.
- Operates efficiently in temperatures from -30°C up to 105°C.
- Features a blue color for easy identification.
- Compatible with housing connectors requiring sealing against splash and immersion conditions.
- Available in 2 to 15 way versions for flexible connector configurations.
- Requires two wire seals and one interface seal per connector for effective sealing.
- Manufactured in Mexico maintaining high-quality standards.
Product Description
TE Connectivity 794270-1 MATE-N-LOK Series Connector Seal is a precision-engineered connector seal suitable for electronic and electrical applications. It supports a current rating of 10 A and accommodates wire sizes ranging from 16 AWG minimum to 24 AWG maximum, making it ideal for reliable connections in various industrial and commercial scenarios.
The contact material is a tin-plated copper alloy, providing excellent electrical conductivity and resistance to corrosion. Multiple plating options including phosphor, gold, bronze, brass, and tin further enhance contact reliability and durability. This connector seal is designed to operate within an ambient temperature range of -30°C to 105°C, ensuring stable performance under diverse environmental conditions.
Its blue color coding simplifies identification during assembly. The product requires two wire seals and one interface seal for effective splash proof and immersion proof sealing when mating connectors. Available in 2 to 15 way configurations, it offers flexibility for different wiring harness setups. Typically used with universal Mate-N-Lok connectors, it requires crimp contacts stock numbers 366-4376 or 366-4382 to ensure compatibility.
Manufactured in Mexico, this connector seal upholds TE Connectivity's reputation for quality in electrical components. It is suitable for use in industrial, automotive, manufacturing, and electrical equipment assembly sectors, contributing to enhanced connection reliability and environmental protection.
Choose TE Connectivity MATE-N-LOK Series Connector Seal 794270-1 for your PCB connectors and wire housing projects to achieve superior sealing and dependable electrical contact. Constructed with tin plated copper alloy contacts ensuring reliable conductivity.
Contact plating includes phosphor, gold, bronze, brass, and tin for superior corrosion resistance. Operates efficiently in temperatures from -30°C up to 105°C. Features a blue color for easy identification. Compatible with housing connectors requiring sealing against splash and immersion conditions.
Available in 2 to 15 way versions for flexible connector configurations. Requires two wire seals and one interface seal per connector for effective sealing. Manufactured in Mexico maintaining high-quality standards. Explore EnvMart's Electronics & Electricals categories for more TE Connectivity connectors and accessories to meet your technical requirements and project specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector seal has a current rating of 10 A, making it suitable for various electrical applications.
It accommodates wire sizes ranging from 16 AWG minimum to 24 AWG maximum, allowing for flexible wiring options.
This connector seal operates efficiently within a temperature range of -30°C to 105°C, ensuring stable performance in diverse environments.
The contacts are made from a tin-plated copper alloy, which provides reliable conductivity and corrosion resistance.
The contact plating includes phosphor, gold, bronze, brass, and tin, enhancing reliability and durability against corrosion.
Each connector requires two wire seals and one interface seal to achieve effective splash-proof and immersion-proof sealing.
It is available in configurations ranging from 2 to 15 ways, providing flexibility for different wiring harness setups.
The connector seal is blue, which aids in easy identification during assembly processes.
This model is manufactured in Mexico, adhering to high-quality standards set by TE Connectivity.
It is suitable for use in industrial, automotive, manufacturing, and electrical equipment assembly sectors, enhancing connection reliability.
It is typically used with universal Mate-N-Lok connectors, requiring specific crimp contacts for compatibility.
The connector seal is designed to provide sealing against splash and immersion conditions, ensuring reliable electrical connections in challenging environments.
