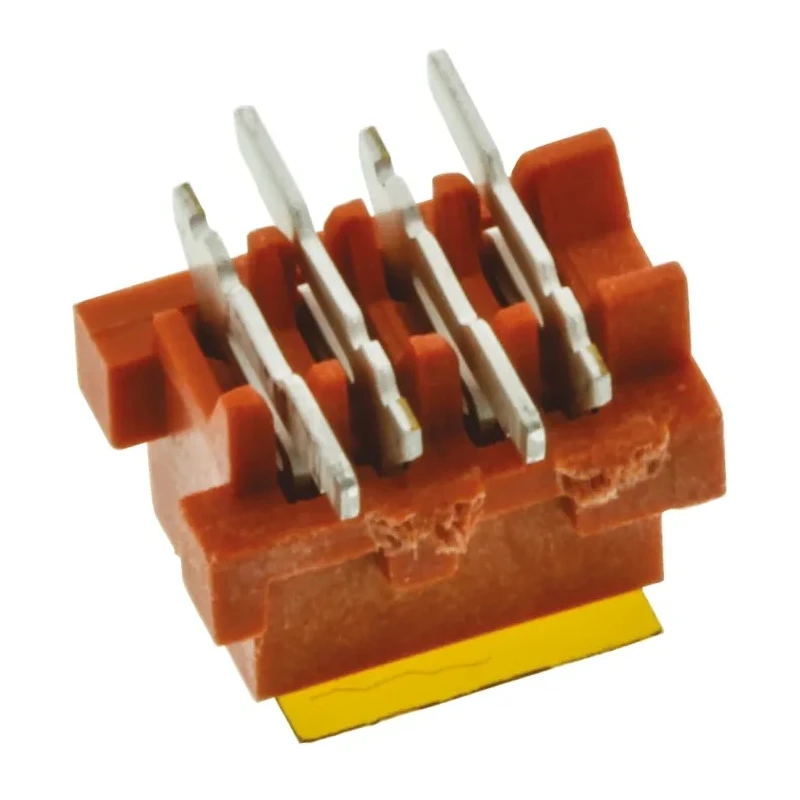

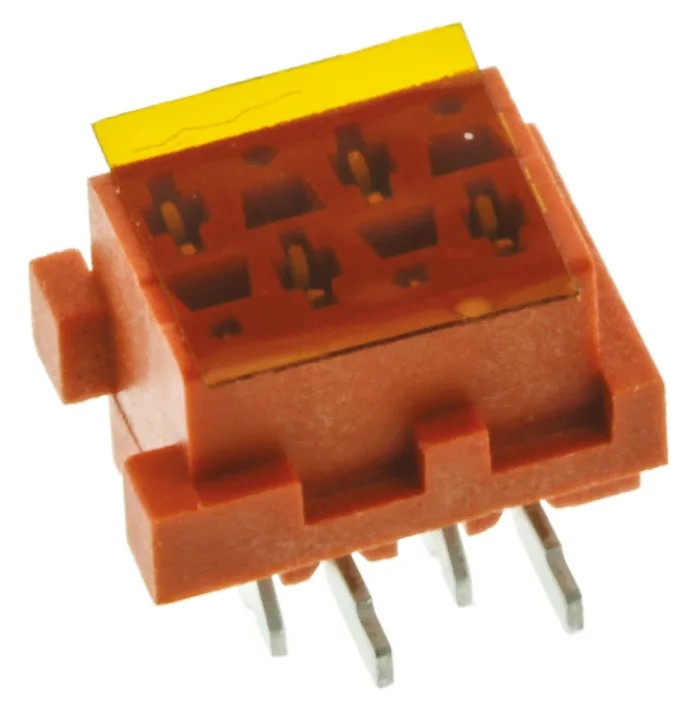

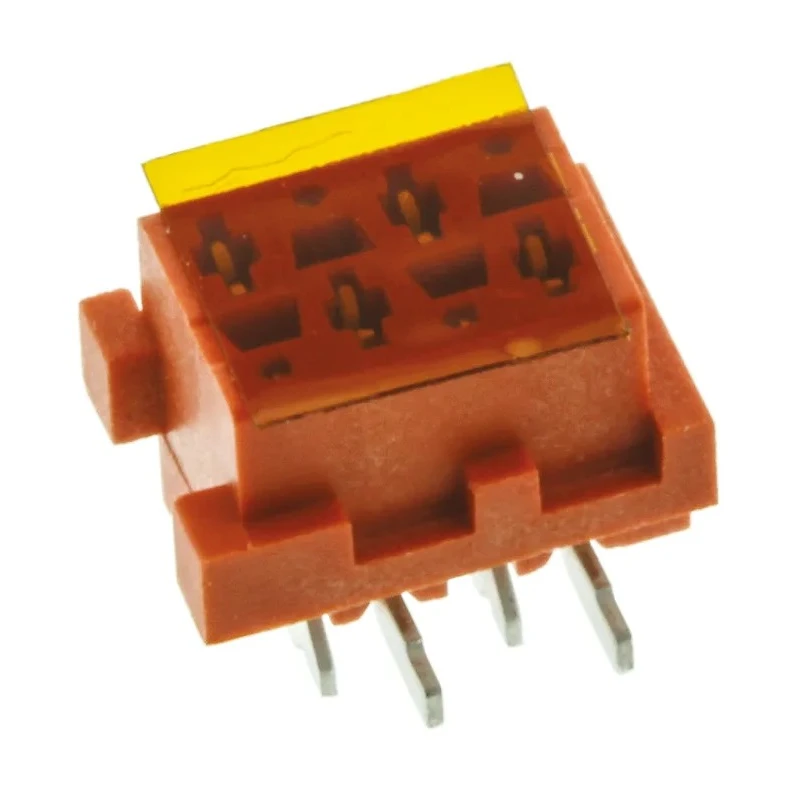

TE Connectivity Micro-MaTch Series Straight Surface PCB Socket 4-Contact 2 Row 1.27 mm Pitch 7-188275-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 230V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.5A |
| Mount Type | Surface |
| Contact Material | Bronze |
| Series | Micro-MaTch |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Female-On-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.54mm |
Key Features
- Compact and space-saving design reduces PCB footprint.
- Fully tin-plated bronze contacts ensure reliable conductivity.
- Contact spring system prevents fretting corrosion for durability.
- Polarized to prevent mismating and enhance reliability.
- Operating voltage up to 230V with a current rating of 1.5A.
- Surface mount termination with solder contacts provides secure connection.
- Wide operating temperature range from -40°C to 105°C.
- Positioning spring absorbs vibration and thermal expansion.
Product Description
TE Connectivity 7-188275-4 Micro-MaTch Series Straight Surface PCB Socket is a female on-board SMT connector with 4 contacts arranged in 2 rows and a 1.27 mm pitch. Designed for board-to-board interconnections, it offers a compact, space-saving solution for electronic component connections.
This PCB socket features fully tin-plated bronze contacts combined with a contact spring system that prevents fretting corrosion, ensuring long-term reliability. The contact spring system creates a gas-tight connection, while the positioning spring absorbs movements caused by vibration and thermal expansion to maintain connection integrity.
The connector is polarized to avoid mismating, providing safe and dependable interconnections. Operating voltage is rated at 230 V with a current carrying capacity of 1.5 A. The socket mounts directly to the surface and uses a solder termination type for secure attachment to the PCB.
With an operating temperature range from -40°C to 105°C, it is suitable for various industrial and commercial electronics environments including production and material handling equipment, robots, motors, control units, central heating units, car radios, navigation and dashboard systems, base stations, set top boxes, and audio equipment.
Compact and space-saving design reduces PCB footprint. Fully tin-plated bronze contacts ensure reliable conductivity. Contact spring system prevents fretting corrosion for durability. Polarization design prevents mismating of connectors.
Operating voltage rated at 230 V with 1.5 A current capacity. Surface mount termination with solder contacts. Wide temperature operation range from -40°C to 105°C. Positioning spring absorbs vibration and thermal expansion.
Optional locking latches available for secure mating connection. Designed for diverse applications in industrial and commercial electronics.
This PCB socket fits well within industrial electrical systems, manufacturing electronics, telecommunication equipment, and automotive electronics, ensuring performance in demanding environments. Explore the PCB Sockets category on EnvMart for compatible connectors and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage is rated at 230V with a current carrying capacity of 1.5A.
It features a 1.27 mm pitch with 4 contacts arranged in 2 rows.
This model uses a solder termination type for secure attachment to the PCB.
The contacts are made of fully tin-plated bronze to ensure reliable conductivity.
It operates within a temperature range of -40°C to 105°C.
The positioning spring absorbs vibration and thermal expansion, helping to maintain connection integrity.
Yes, it is polarized to avoid mismating, enhancing reliability in connections.
It is suitable for various applications including industrial and commercial electronics such as robots, motors, and control units.
The orientation of this connector is straight.
This PCB socket has a total of 4 contacts.
The country of origin for this PCB socket is India.
Yes, optional locking latches are available for a more secure mating connection.
