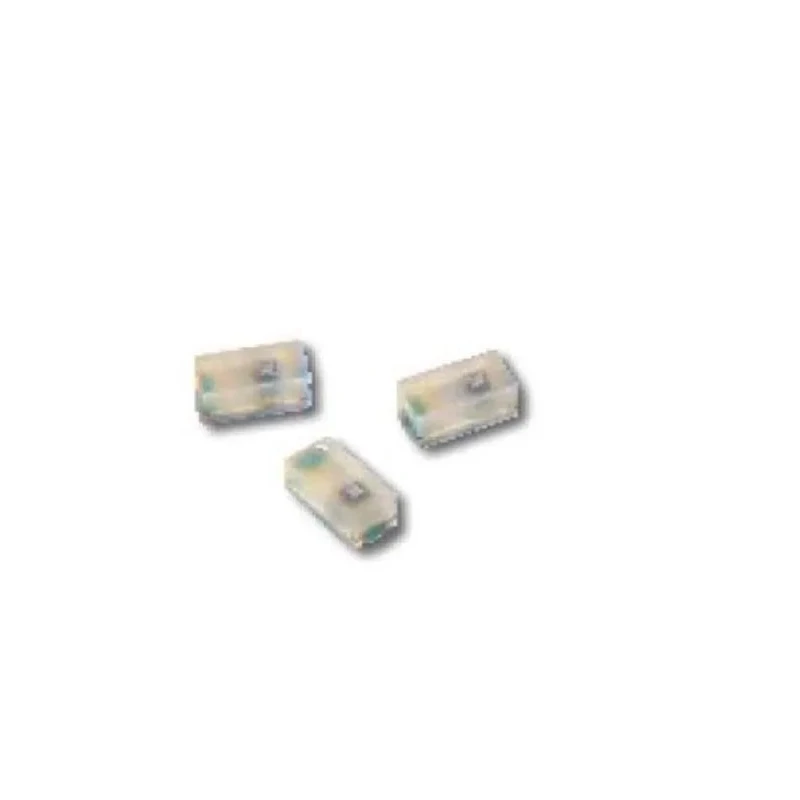

Broadcom 2.4 V Amber LED 0402 Surface Mount with 20mA Forward Current HSMA-C280

Broadcom HSMA-C280 is a high-quality amber LED designed for surface mount applications with the 0402 package size (1.0 x 0.5 mm). It operates at a forward voltage of 2.4 V and supports a maximum forward current of 20 mA with a power dissipation of 52 mW. This LED offers clear rectangular lens optics and a wide viewing angle of 130 degrees, providing bright and focused amber illumination with a luminous intensity of 90 mcd and a dominant wavelength centered at 592 nm.

The compact height of 0.4 mm is ideal for applications in small portable handheld devices where space and component height is critical. The product is compatible with infrared soldering processes and is supplied in tape and reel packaging for ease of automated assembly. The device conforms to RoHS directive ensuring it is environmentally compliant.

This amber LED is designed to operate across a wide temperature spectrum from - 40°C to +85°C, assuring reliability in various industrial, consumer electronics, and communication device applications. It is manufactured to precise industrial standards in Taiwan, Province Of China.

Clear rectangular lens with a 130° wide viewing angle. Maximum forward current rating of 20 mA and power dissipation up to 52 mW. Bright amber LED with 90 mcd luminous intensity and 592 nm wavelength. Packaged in tape and reel format for automated surface mount assembly.

Operating temperature range from - 40°C to +85°C for robust performance. Compatible with IR soldering processes ensuring assembly flexibility. RoHS compliant for environmental safety. Compact 0402 package footprint: 1.0 x 0.5 mm size and 0.4 mm height.

This Broadcom HSMA-C280 amber LED is suitable for industrial and electronic applications including indicators, displays, and lighting in consumer electronics, communication devices, and instrumentation. Its ultra-compact dimensions and reliable performance make it a preferred choice for high-density PCB layouts, small handheld electronics, and other space-constrained usage.
