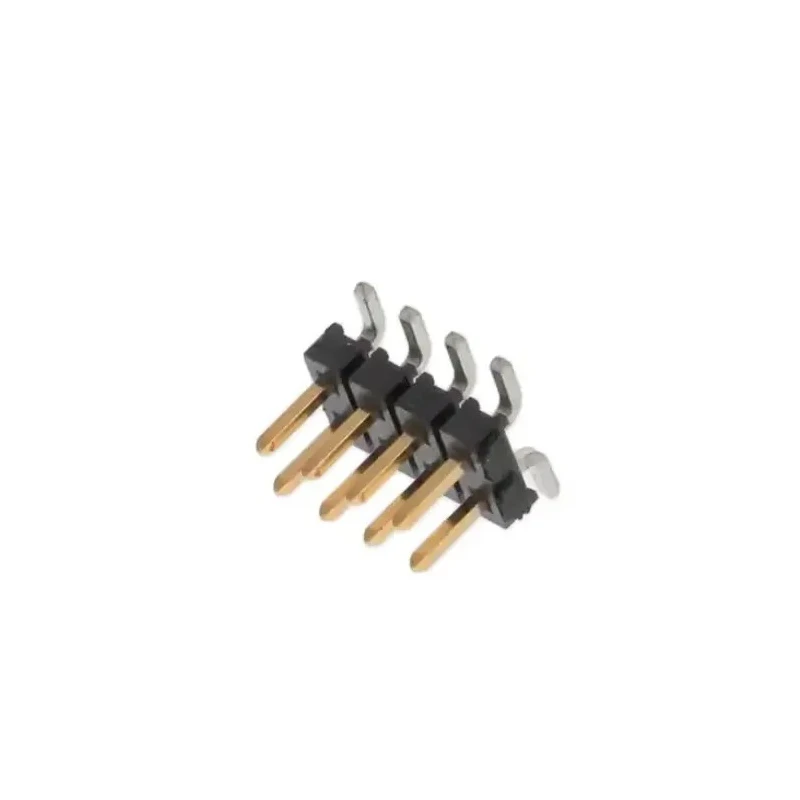

Samtec TMM Series Vertical Surface Mount Unshrouded Pin Header 8 Contacts 2 mm Pitch 2 Row TMM-104-01-L-D-SM-P-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec TMM Series Vertical Surface Mount Unshrouded Pin Header 8 Contacts 2 mm Pitch 2 Row TMM-104-01-L-D-SM-P-TR

Name: Samtec TMM Series Vertical Surface Mount Unshrouded Pin Header 8 Contacts 2 mm Pitch 2 Row TMM-104-01-L-D-SM-P-TR
Brand: Samtec
SKU: 172200
Price: 1.56 USD
Availability: InStock



Category PCB Headers Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	281V
Brand	Samtec
Orientation	Vertical
Current	3.2A
Model	TMM-104-01-L-D-SM-P-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	TMM
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	8
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board

Key Features

The 2 mm pitch and dual row design provide compact and reliable board-to-board connections.
Constructed with phosphor bronze contacts plated with gold for superior conductivity and durability.
Housing is made of liquid crystal polymer, ensuring excellent thermal and mechanical stability.
Rated for a current of 3.2 A and voltage of 281 V for robust electrical performance.
Suitable for surface mount technology with solder termination type.
Operates reliably in a temperature range of -55°C to 125°C, ideal for demanding electronic applications.
Unshrouded male contact design allows easy mating with complementary connectors.
Packaged in tape and reel format to facilitate automated assembly processes.

Product Description

Samtec TMM-104-01-L-D-SM-P-TR is a high-quality vertical surface mount pin header designed for advanced electronic applications requiring reliable board-to-board connections.

This pin header series features 8 male contacts arranged in 2 rows with a standard 2 mm pitch, facilitating compact layouts where space optimization is important. The housing material is liquid crystal polymer, providing high heat resistance and excellent mechanical strength for durability during automated processing and long-term field use.

The contacts are made from phosphor bronze and plated with a light selective gold coating at the contact points, ensuring low electrical resistance and corrosion resistance. The tails of the contacts feature a matte tin finish, optimized for soldering and surface mount assembly techniques.

The connector supports a current rating of 3.2 A and can handle operating voltages up to 281 V, making it suitable for a variety of industrial and commercial electronic devices. The temperature operating range from -55°C to 125°C ensures performance stability in harsh environments.

This unshrouded header is generally used in board-to-board connections, enabling versatile and robust PCB interfaces. The tape and reel packaging format supports automated pick-and-place assembly lines, enhancing manufacturing efficiency.

The 2 mm pitch and dual row layout deliver a compact and robust connection solution. Premium gold plating on phosphor bronze contacts ensures excellent conductivity and reliability. Liquid crystal polymer housing offers superior thermal and mechanical properties.

Supports a current of 3.2 A and voltage of 281 V for demanding electronic applications. Wide operating temperature range from -55°C to 125°C enhances durability. Unshrouded male contacts facilitate easy mating and PCB integration.

Solder termination type compatible with surface mount technology. Tape and reel packaging optimizes manufacturing and component handling.

This Samtec pin header is widely employed in electronics manufacturing, telecommunications, consumer electronics, and industrial control equipment, offering reliable electrical performance and long service life.

Explore more PCB header solutions and related connectors in our Electronics Components category at EnvMart.

Explore more products in our PCB Headers category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business
