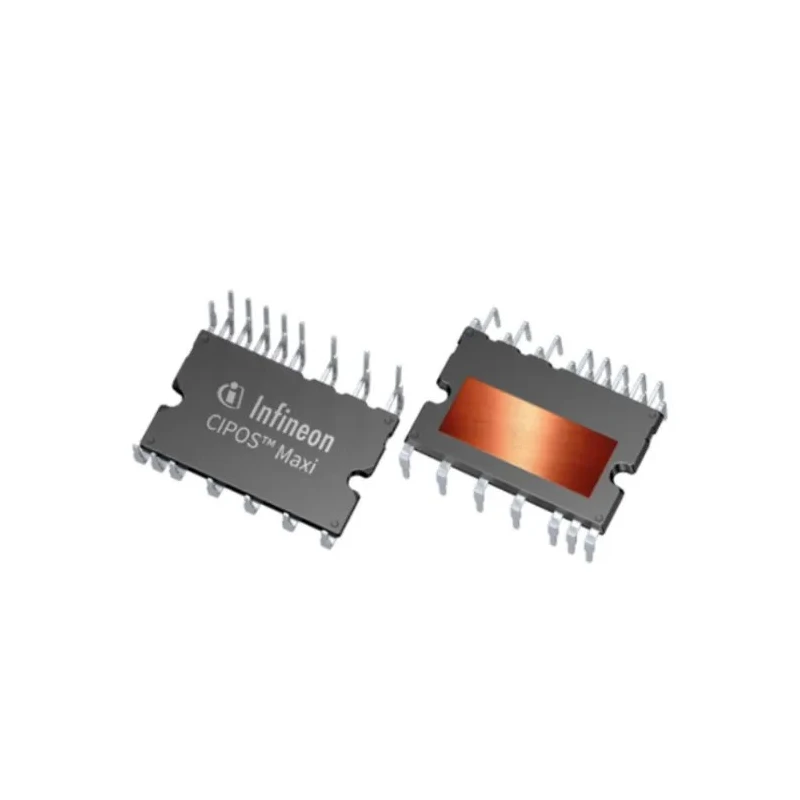

Infineon MOSFET Gate Driver 24-Pin 18.5V DIP IM818MCCXKMA1

Infineon IM818MCCXKMA1 MOSFET Gate Driver 24-Pin 18.5V DIP is a high-performance power management IC designed for precise control of three phase AC motors and permanent magnet motors in variable speed drive applications. This device enables efficient motor control for low power motor drives including general purpose inverters and servo drives, as well as pumps, fan drives, and active filters in HVAC systems.

It integrates essential features such as bootstrap functionality for driving high side MOSFETs, over current shutdown to protect the circuit from damage, and a built-in NTC thermistor for continuous temperature monitoring. The under-voltage lockout on all channels ensures operational safety by preventing malfunction under insufficient voltage conditions. Packaged in a fully isolated Dual In-Line (DIP) molded module, the IM818MCCXKMA1 is designed for easy through-hole mounting on PCBs, offering a robust solution for industrial, HVAC, manufacturing, and commercial applications.

The device operates across a wide temperature range from -40°C to 150°C, making it suitable for demanding environments. It features fast switching characteristics, with a rise time of 45ns and a fall time of 100ns, thereby supporting high-speed motor control. The compact package dimensions (36mm length, 22.7mm width, and 8.1mm height) help optimize PCB space. With 24 pins and 4 outputs, this MOSFET gate driver facilitates multiple output channel control.

Designed for reliable and efficient three phase and permanent magnet motor control in variable speed drives. Integrated bootstrap functionality enhances the high side MOSFET drive capabilities. Over current shutdown provides circuit protection ensuring device longevity.

Built-in NTC thermistor supports real-time temperature monitoring for enhanced safety. Under-voltage lockout protects all channels from low-voltage conditions. Fully isolated DIP molded module package enables secure PCB mounting and integration.

Operating temperature range from -40°C to 150°C supports harsh industrial environments. Fast rise and fall times (45ns and 100ns) enable responsive motor control performance. Compact size aids in conserving PCB space in electronic assemblies.

Four output channels allow versatile MOSFET driving capability for complex motor control schemes.

Ideal for use in industrial motor drives, laboratory servo drives, HVAC systems, water treatment pump controls, and various manufacturing automation applications requiring precise and reliable motor control.

Explore the Infineon MOSFET Gate Driver range for advanced power management ICs tailored to your electronics and automation needs at EnvMart.
