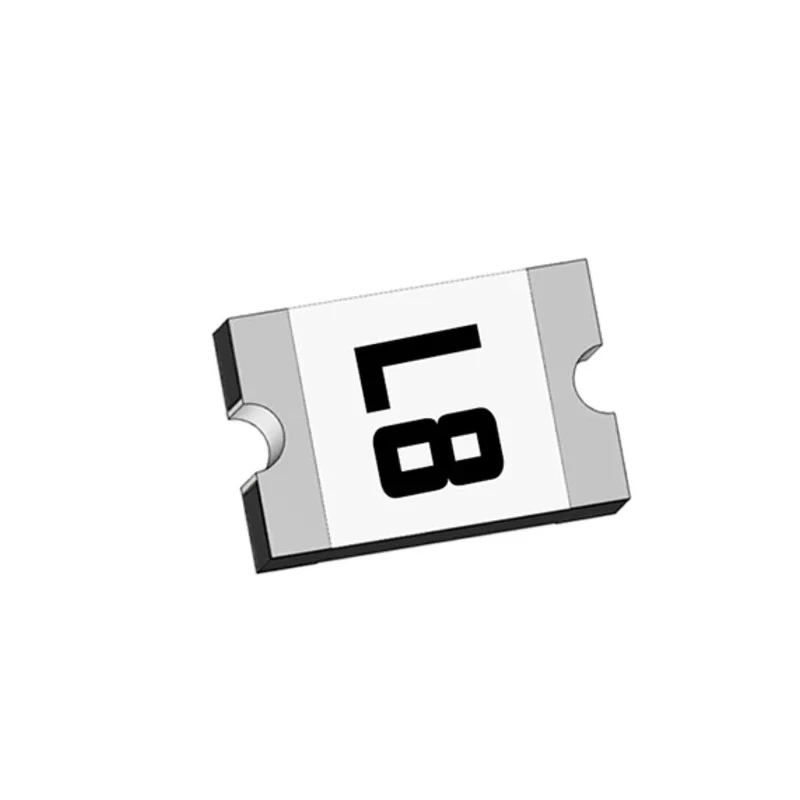

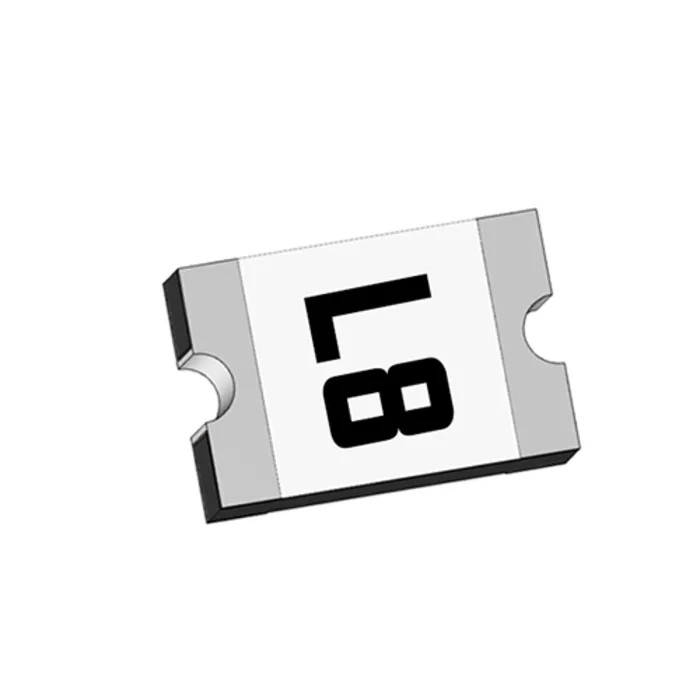

Eaton 5 A Resettable Fuse 6V Low Resistance SMD PTC, Compact 1206 Footprint PTSLR12066V500
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 6V |
| Brand | Eaton |
| Height | 1.2mm |
| Length | 3.5mm |
| Model | PTSLR12066V500 |
| Width | 1.8mm |
| Current Rating | 50A |
| Series | Bussmann |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Trip Current | 10A |
| Power Dissipation | 0.8W |
| Standards/Approvals | UL, cURus, RoHS |
| Time to Trip | 2s |
| Hold Current | 5A |
| Minimum Resistance | 1mΩ |
| Maximum Resistance | 0.01Ω |
Key Features
- Compact 1206 SMD form factor enables space-saving PCB design.
- Fast time-to-trip of 2 seconds ensures effective circuit protection.
- Designed for low voltage application at 6V rating.
- Hold current specification at 5 A and trip current at 10 A.
- Power dissipation rated at 0.8 W for efficient thermal performance.
- Application in data ports, micromotors, fans, USB protection, and battery charging circuits.
- Compliant with UL, cURus, and RoHS safety standards.
- Offered in reel packaging for convenient surface mount technology assembly.
Product Description
The Eaton PTSLR12066V500 is a resettable fuse designed for reliable circuit protection in low voltage handheld and electronic devices. It features a compact 1206 surface-mount device footprint, allowing efficient use of printed circuit board space. Operating at 6 volts, this fuse exhibits a hold current of 5 amperes and a quick trip time of approximately 2 seconds at 10 amperes, making it effective for safeguarding against overcurrent conditions.
Its low resistance characteristic supports minimal voltage drop and power loss with a maximum resistance of 0.01 ohms, ensuring efficient circuit operation. With a power dissipation of 0.8 watts, it can maintain safe thermal levels during transient events. The fuse is suitable for applications such as data ports, micromotors, cooling fans, USB protection circuits, and battery charging and connection safety, providing versatile use in diverse electrical and electronic equipment.
The device meets internationally recognized certifications including UL, cURus, and RoHS, guaranteeing safety and compliance with environmental standards. It is manufactured under the Bussmann series and is supplied in reel packaging, facilitating automated component placement in manufacturing environments.
Operating temperature ranges from a minimum of -40°C to a maximum of 85°C, providing robust performance under varied environmental conditions. Adopting this fuse enhances the overall durability and reliability of electrical protection systems in industrial, commercial, and electronic device applications.
Compact 1206 SMD form factor enables space-saving PCB design. Fast time-to-trip of 2 seconds ensures effective circuit protection. Designed for low voltage application at 6V rating. Hold current specification at 5 A and trip current at 10 A.
Power dissipation rated at 0.8 W for efficient thermal performance. Application in data ports, micromotors, fans, USB protection, and battery charging circuits. Compliant with UL, cURus, and RoHS safety standards. Offered in reel packaging for convenient surface mount technology assembly.
Choose Eaton Resettable Fuses for quality, reliability, and industry compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this resettable fuse is 5 A.
The trip current for this model is 10 A.
This resettable fuse is designed for a low voltage application at 6 V.
The time to trip for this fuse is approximately 2 seconds.
The dimensions of this model are 3.5 mm in length, 1.8 mm in width, and 1.2 mm in height.
The maximum operating temperature for this fuse is 85°C.
The power dissipation rating is 0.8 W.
The minimum operating temperature is -40°C.
This fuse complies with UL, cURus, and RoHS safety standards.
The maximum resistance of this resettable fuse is 0.01 ohms.
This model is suitable for applications such as data ports, micromotors, cooling fans, USB protection circuits, and battery charging.
It is supplied in reel packaging for convenient surface mount technology assembly.
