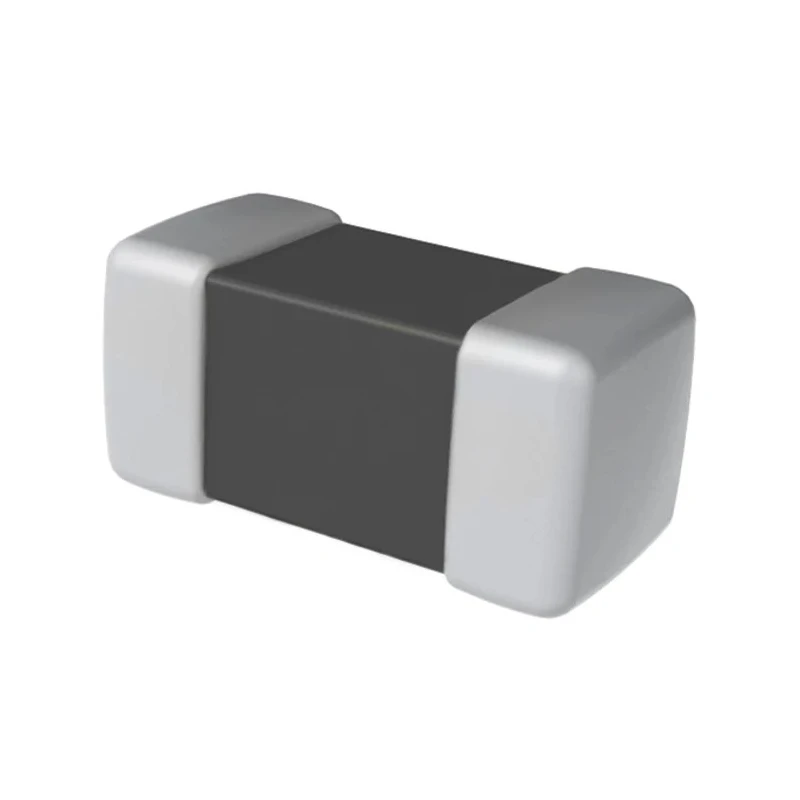

KEMET Ferrite Bead 0.063 mm Tape & Reel Chip Bead 56.1 Ω Impedance at 25 MHz, 72 Ω at 100 MHz Z1806C720APWST

Free Delivery in India | Lowest Global Shipping Charges

KEMET Ferrite Bead 0.063 mm Tape & Reel Chip Bead 56.1 Ω Impedance at 25 MHz, 72 Ω at 100 MHz Z1806C720APWST

Name: KEMET Ferrite Bead 0.063 mm Tape & Reel Chip Bead 56.1 Ω Impedance at 25 MHz, 72 Ω at 100 MHz Z1806C720APWST
Brand: KEMET
SKU: 171849
Price: 0.2 USD
Availability: InStock



Category Ferrite Bead Brand KEMET Condition New

Specifications

Country of Origin	Philippines
Brand	KEMET
Material	Ferrite
Height	0.063mm
Length	0.177mm
Model	Z1806C720APWST
Depth	0.063mm
Packaging	Tape & Reel
Current Rating	6A
Series	Z-PWZ
Maximum Operating Temperature	125°C
Package Type	Tape & Reel
Sub Type	Chip Bead
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS and REACH compliant
Maximum DC Resistance	0.45Ω
Impedance at 100 MHz	72Ω
Impedance at 25 MHz	56.1Ω
Impedance at 300 MHz	78.3Ω
Impedance at 50 MHz	65Ω
Impedance at 1 GHz	78.9Ω

Key Features

Chip bead design ideal for high impedance and large current applications.
Provides waveform correction of digital signals and high-frequency noise suppression.
Operates efficiently between −40°C to +125°C.
Low stray capacitance ensured by wire wound structure.
High reliability with resistance to high energy pulses.
Material composed of ferrite compliant with RoHS and REACH standards.
Compact dimensions with 0.177 mm length, 0.063 mm height and depth.
Maximum DC resistance is 0.45 Ω for minimal power loss.

Product Description

KEMET Z1806C720APWST ferrite bead chip bead features a compact 0.063 mm size and high impedance, designed specifically for advanced electronic circuit noise suppression on power lines.

This ferrite bead is part of the Z-PWZ series, offering impedance values ranging from 32 to 2,000 Ω and current ratings from 0.5 A to 4 A, suitable for digital mobile equipment requiring low power consumption and reduced radiated noise.

Constructed with high-quality ferrite material, it ensures minimal stray capacitance due to its wire wound structure, enhancing high-frequency suppression performance across 25 MHz (56.1 Ω), 50 MHz (65 Ω), 100 MHz (72 Ω), 300 MHz (78.3 Ω), and 1 GHz (78.9 Ω).

The device maintains stable operation within a temperature range of −40°C to +125°C and exhibits a maximum DC resistance of 0.45 Ω, contributing to low power loss in high current applications up to 6 A.

The chip dimension of 0.177 mm length by 0.063 mm height and depth enables integration into compact PCBs. Packaging is done in tape and reel format facilitating high-volume automated assembly processes.

Certifications include compliance with RoHS and REACH directives, assuring environmental and safety standards. High impedance for effective noise suppression on power lines. Compact chip bead footprint suitable for dense PCB layouts.

Wide operating temperature range ensures reliability in harsh environments. Low DC resistance minimizes power loss in circuits. High current rating of up to 6 A supports demanding applications. Environmentally compliant material in accordance with RoHS and REACH.

Suitable for use in industrial electronics, telecommunications, and mobile digital equipment. Tape and reel packaging supports efficient manufacturing workflows. This ferrite bead is a dependable component for designers targeting EMI reduction in industrial, laboratory, telecommunication, and consumer electronic applications.

Browse more advanced Ferrite Bead solutions and electronic passive components at EnvMart for your project needs.
