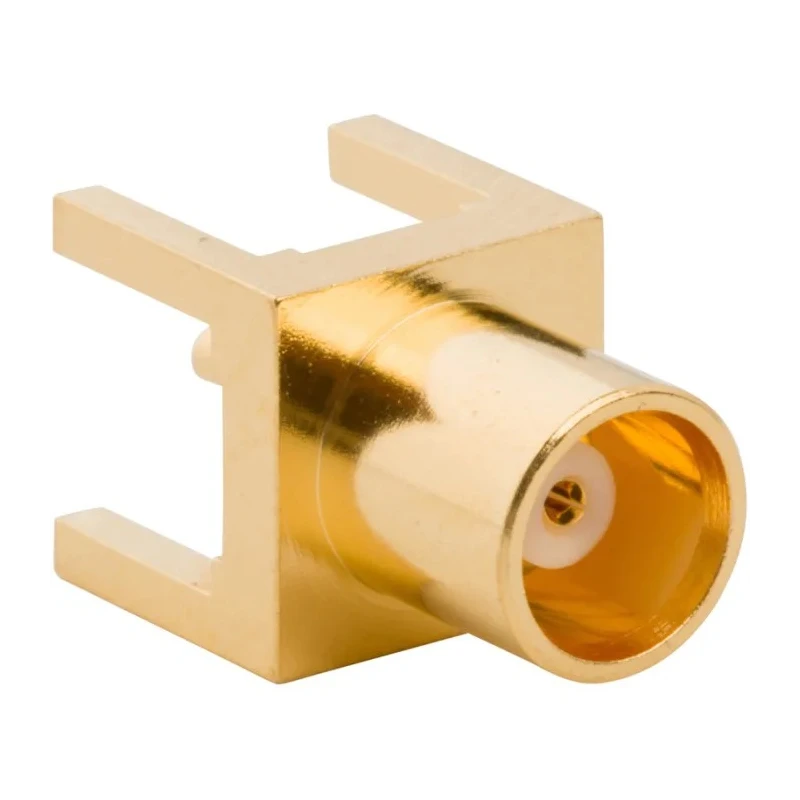

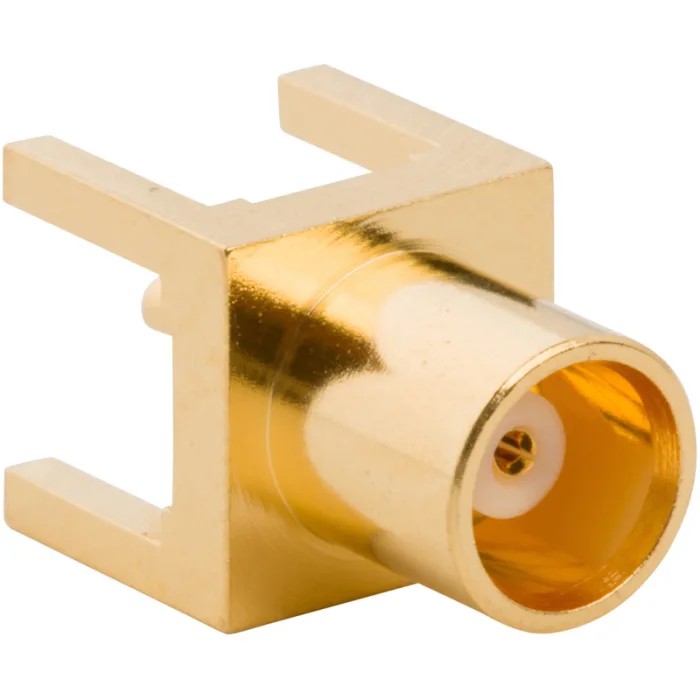

Amphenol RF Coaxial Connector PCB Female MCX 50 Ω Straight Body Through Hole 919-109J-51PX
Specifications
| Country of Origin | China |
|---|---|
| Size | Standard |
| Brand | Amphenol RF |
| Orientation | Straight |
| Model | 919-109J-51PX |
| Mount Type | PCB |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | 919-109J-51PX |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -15°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Gold |
Key Features
- Features MCX type coaxial connector with a female contact.
- Operates efficiently up to 6 GHz frequency.
- Gold plated body and beryllium copper alloy contact ensure excellent conductivity and corrosion resistance.
- Mount type is PCB with through-hole termination for secure attachment.
- Wide operating temperature range from -15°C to 155°C suitable for various environments.
- Standard size with normal polarity and straight orientation for PCB mounting.
- Contact plating is gold to provide durability and low signal loss.
- Manufactured to precise industry standards with country of origin as China.
Product Description
Amphenol RF 919-109J-51PX is a high-quality coaxial connector designed for PCB mounting in RF applications. It features a female MCX connector with 50 Ω impedance and a straight body style, ensuring reliable signal transmission up to 6 GHz frequency range.
This connector uses a gold-plated body and beryllium copper alloy contacts plated in gold to guarantee high conductivity and resistance to wear and corrosion. The through-hole termination type provides robust mechanical and electrical connection with printed circuit boards, ideal for demanding electronics assembly.
Operating effectively in temperature ranges from -15°C to 155°C, this component is suitable for use in telecommunication, RF circuitry, industrial electronics, and laboratory equipment environments. Its standard size and normal polarity complement existing systems with easy replacement and installation.
MCX type coaxial connector with female contact ensures precise connectivity. Gold plating on body and contacts enhances performance and durability. PCB mount with through-hole termination guarantees secure fixing. Operates reliably within a broad temperature range (-15°C to 155°C).
Compatible with industry RF standards for seamless integration. Ideal for use in electronic components, power connectors, and RF applications. Manufactured in China with strict quality controls and compliance.
This Amphenol RF series connector offers a dependable solution for electronic engineers and manufacturers needing robust PCB RF connectors. Explore similar Coaxial Connectors and accessories for tailored RF system designs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates efficiently up to a maximum frequency of 6 GHz.
The impedance of this connector is 50 Ω, making it suitable for RF applications.
It features a PCB mount with a through-hole termination type for secure attachment.
The contact is made of beryllium copper alloy, which is plated in gold to ensure high conductivity and corrosion resistance.
It operates effectively within a temperature range from -15°C to 155°C.
The orientation of this model is straight, suitable for standard PCB mounting.
Yes, it is designed to be compatible with industry RF standards for seamless integration into existing systems.
This connector features a female contact, ensuring precise connectivity in RF applications.
The body of this model is gold plated, enhancing its performance and durability.
This coaxial connector is manufactured in China.
It is designed in a standard size, which allows for easy replacement and installation in existing systems.
This model is part of the 919-109J series by Amphenol RF.
