Renesas Electronics High-Speed CMOS TTL-Compatible Bus Switch 1 x 1:1, 20-Pin QSOP QS3245QG8

Free Delivery in India | Lowest Global Shipping Charges

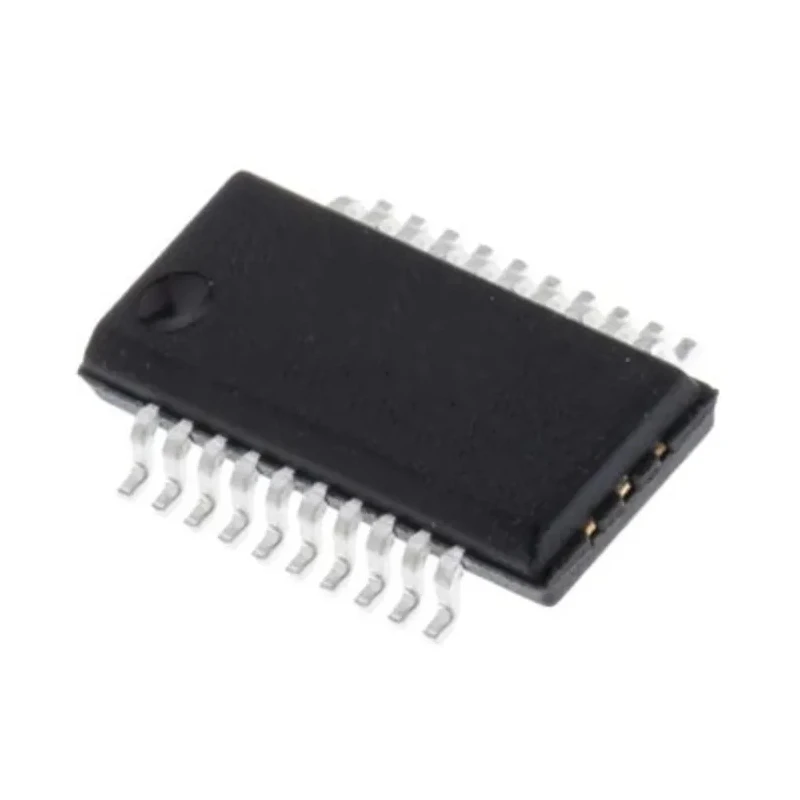

Renesas Electronics High-Speed CMOS TTL-Compatible Bus Switch 1 x 1:1, 20-Pin QSOP QS3245QG8

Name: Renesas Electronics High-Speed CMOS TTL-Compatible Bus Switch 1 x 1:1, 20-Pin QSOP QS3245QG8
Brand: Renesas Electronics
SKU: 170217
Price: 0.59 USD
Availability: InStock



Category Power Switch IC Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Height	1.47mm
Length	8.7mm
Model	QS3245QG8
Mount Type	Surface
Series	QS3245
Configuration	1 x 1:1
Maximum Operating Temperature	85°C
Package Type	QSOP
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	20
Number of Elements per Chip	9
Maximum Supply Voltage	3.6V
Logic Family	CMOS
Minimum Supply Voltage	2.3V
Maximum Propagation Delay Time @ CL	0.25ns
Maximum Quiescent Current	3μA
Maximum On State Resistance	15Ω
Configuration1 x 1	1
Renesas Electronics QS3245QG8, Bus Switch, 1 x 1	1, 20-Pin QSOP

Key Features

Contains nine CMOS logic elements ensuring reliable signal integrity.
Low maximum ON state resistance of 15Ω for minimal signal loss.
Supports a wide operating voltage range from 2.3V to 3.6V.
Operates efficiently within a temperature range of -40°C to 85°C for robust industrial applications.
Surface mount package type QSOP with 20 pins ensures easy PCB integration.
Maximum propagation delay time of 0.25ns minimizes timing issues in circuits.
RoHS compliant with CMOS technology for power conservation and reduced noise.
Compatible with various 8-bit transceivers like 74FCT245, 74ALS/AS/LS245 series.

Product Description

Renesas Electronics QS3245QG8 is a high-performance 1 x 1:1 bus switch designed using high-speed CMOS technology compatible with TTL logic levels. Featuring a 20-pin QSOP surface mount package, it offers nine elements per chip making it suitable for complex logic switching tasks. Its low ON resistance of 15Ω reduces signal distortion by allowing inputs to connect directly to outputs without added propagation delays or ground bounce noise.

This bus switch operates over a broad voltage range of 2.3V to 3.6V and is optimized for reliable operation in harsh industrial environments with temperatures ranging from -40°C up to 85°C. The device includes undershoot clamp diodes on all switch and control inputs and supports voltage translation from 5V to 3.3V, hot-swapping, and clock gating functionalities, making it versatile for power-sensitive and hot-pluggable systems.

The QS3245QG8 is RoHS compliant, ensuring environmental safety standards compliance, and widely used in industrial, communication, manufacturing, and automation equipment. The device is pin-compatible with common 8-bit transceivers such as 74FCT245 and 74ALS245, facilitating straightforward replacements or upgrades in existing circuits.

The device's enhanced N channel FET design eliminates inherent diode to Vcc, improving signal integrity. Zero propagation delay and zero ground bounce ensure stable data transmission in timing-sensitive applications. Capacitance reduction and isolation features contribute to lower power consumption and noise reduction.

Hot-swapping and hot-docking capabilities add resilience in live system integrations. Voltage translation support enables mixed-voltage system compatibility.

Set in the category of Power Switch ICs within Semiconductors, this bus switch is ideal for use in industrial manufacturing, telecommunications, automation, and other commercial electronic systems requiring precise, rapid logic switching. EnvMart offers comprehensive selections for electronic components including semiconductors and bus switches facilitating efficient sourcing and integration.
