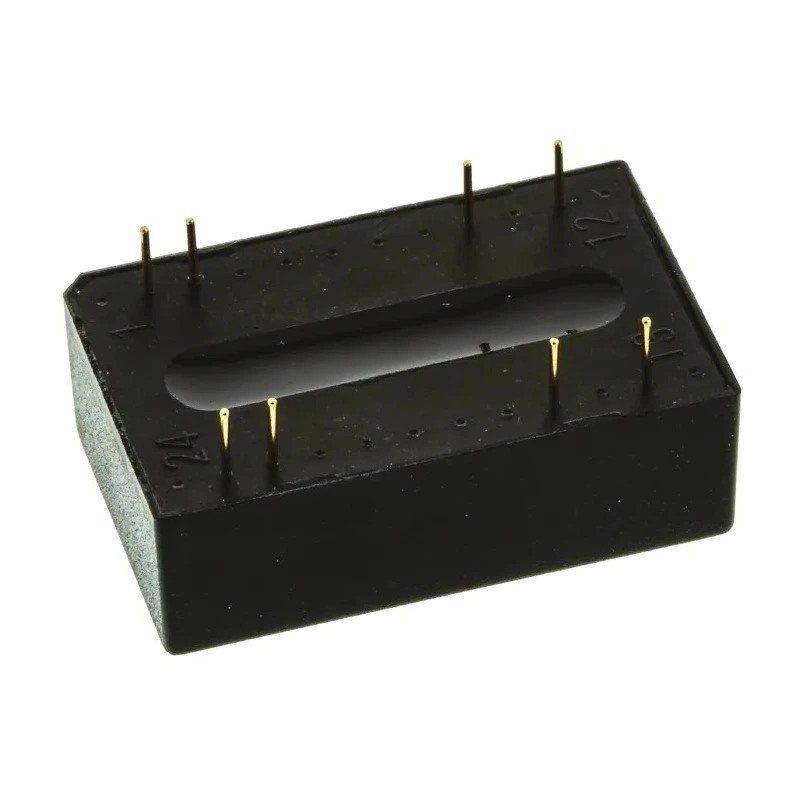

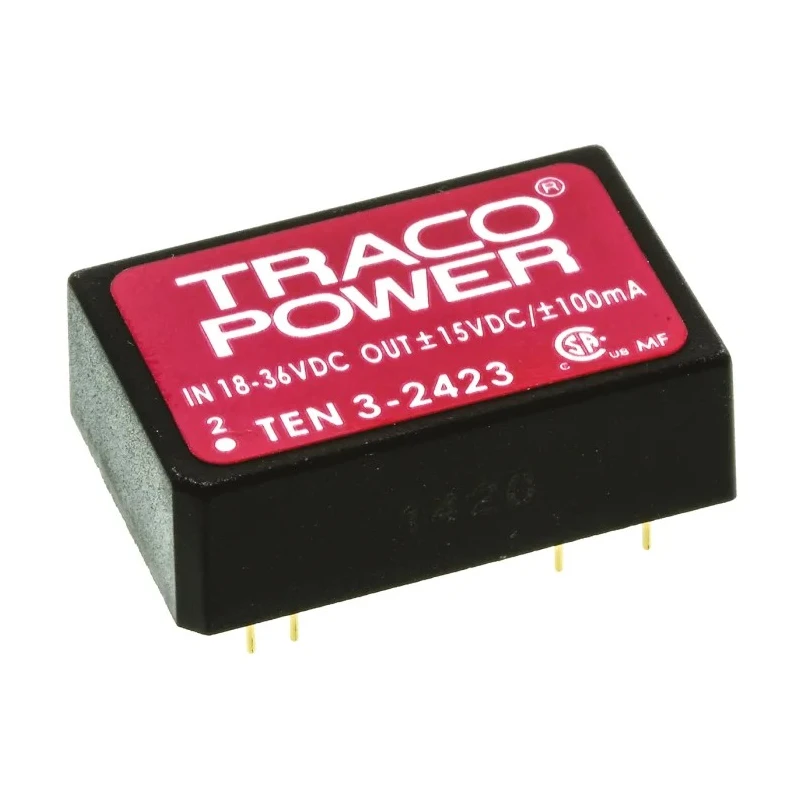

TRACOPOWER TEN 3-2423 DC/DC Converter Dual Output ±15 V 100 mA 3 W PCB Mount 18-36 V Input 85°C Max Temp
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 3 DC/DC Converter, 15V, -15 V/ 100 |
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 32mm |
| Model | TEN 3-2423 |
| Depth | 10.2mm |
| Mount Type | PCB |
| Series | TEN 3 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 2 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 15, -15V |
| Output Current 1 | 100mA |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Provides stable dual output voltages of +15 V and -15 V with 100 mA output current.
- Operates efficiently with 82% efficiency, minimizing heat dissipation.
- Compact DIP-24 surface mount package with dimensions 32 mm length and 10.2 mm depth.
- Designed for industrial, communication, and automotive applications requiring isolated power supply.
- Wide operating temperature range from -40°C to 85°C suitable for harsh environments.
- Indefinite short-circuit protection with automatic recovery ensures reliability and safety.
- Features electrical isolation of 1.5 kV DC between input and output to protect circuits.
- Mean time between failures (MTBF) of 700,000 hours guarantees long service life.
Product Description
TRACOPOWER TEN 3-2423 DC/DC Converter offers dependable dual output voltages of +15 V and -15 V at 100 mA, rated at 3 W power, ideal for providing isolated and regulated power solutions on printed circuit boards.
This converter features a compact DIP-24 surface mount package measuring 32 mm in length and 10.2 mm in depth, facilitating space-saving integration into electronic systems.
Designed to operate with a wide input voltage range of 18 V to 36 V DC, the TEN 3-2423 supports dual outputs with 2:1 input ratio capability suitable for various power supply conditions. Its high efficiency of 82% reduces energy loss and heat generation, eliminating the need for additional heatsinks.
It withstands harsh industrial environments with an operating temperature range from -40°C up to 85°C, making it suitable for industrial automation, communication infrastructure, and automotive electronics.
Key safety features include 1.5 kV DC isolation voltage between input and output, ensuring protection against high-voltage surges and faults. The device also provides indefinite short-circuit protection with automatic recovery to minimize downtime and prevent damage.
The robust FR4 plastic housing ensures both electrical insulation and fire resistance, enhancing safety during use. Stable dual ±15 V, 100 mA output suitable for precision electronics. Efficient 3 W power rating with 82% energy efficiency.
Compact DIP-24 package with standardized pinout for easy PCB mounting. Wide 18-36 V input voltage range with 2:1 input ratio flexibility. High isolation voltage of 1.5 kV DC protects against surges. Extensive operating temperature range (-40°C to 85°C) for reliability.
Long MTBF of 700,000 hours ensures extended device lifespan. FR4 plastic non-flammable housing ensures safe handling. Indefinite short-circuit protection with automatic recovery enhances durability.
This DC/DC converter is widely used in communication systems, industrial automation, and automotive applications where reliable and isolated dual output voltage conversion is required.
Explore our extensive category of DC/DC Converters for more industrial-grade power solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual output voltages of +15 V and -15 V.
The maximum input voltage for the TEN 3-2423 is 36 V DC.
It operates with an efficiency of 82%, minimizing heat dissipation.
The operating temperature range is from -40°C to 85°C, suitable for harsh environments.
This model features two outputs, providing both +15 V and -15 V.
The maximum output power of this converter is 3 W.
It is designed for PCB mounting with a compact DIP-24 surface mount package.
The isolation voltage between input and output is 1.5 kV DC, providing protection against high-voltage surges.
The MTBF for the TEN 3-2423 is rated at 700,000 hours, indicating a long service life.
This unit measures 32 mm in length and 10.2 mm in depth.
It includes indefinite short-circuit protection with automatic recovery, enhancing reliability and safety.
This model is designed for industrial, communication, and automotive applications requiring isolated power supply.
