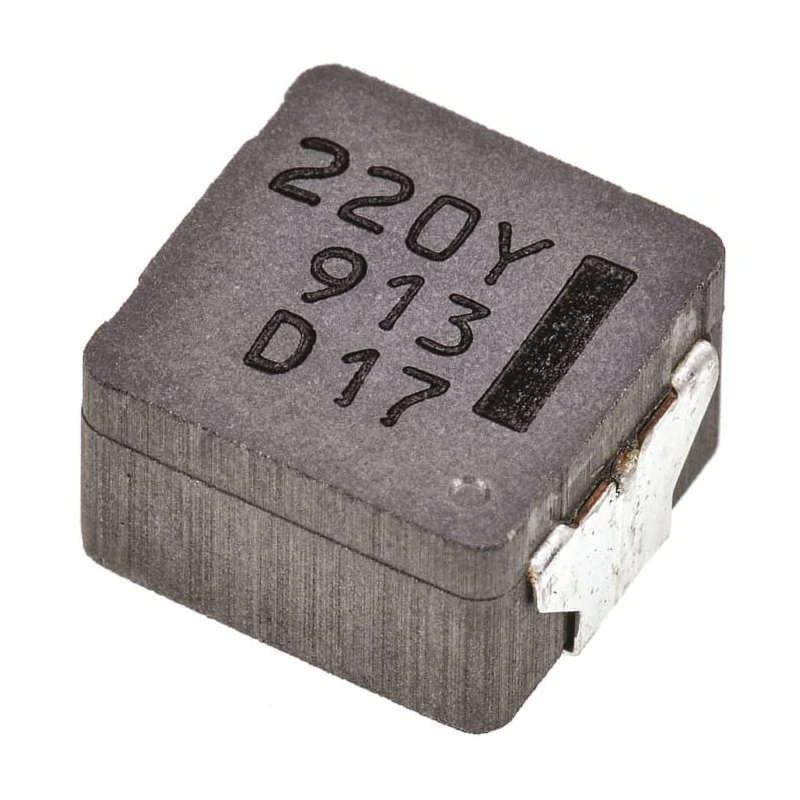

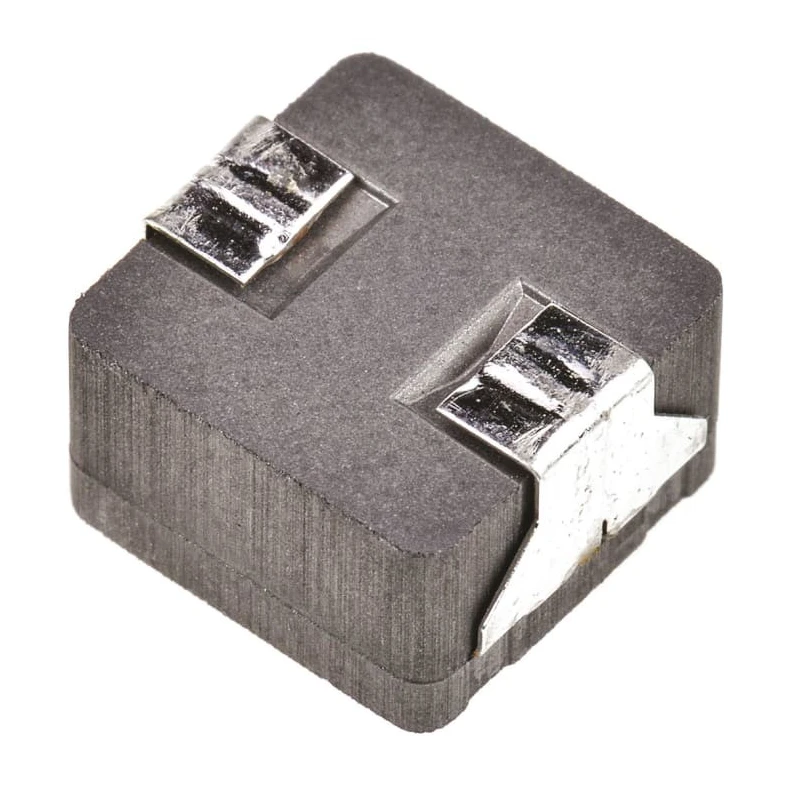

Panasonic Shielded Wirewound Surface Mount Inductor Metal Composite Core 22 μH ±20 %, 4.8 A Idc ETQP5M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 5.4mm |
| Length | 8.5mm |
| Model | ETQP5M |
| Depth | 8mm |
| Series | ETQP5M |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 0854 |
| Maximum DC Current | 4.8A |
| Pin Count | 4 |
| Maximum DC Resistance | 70mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a metal composite core for durability and efficiency.
- Features a compact 0854 package size measuring 8.5mm in length.
- Complies with automotive standard AEC-Q200 for high reliability.
- Includes shielding to reduce electromagnetic interference effects.
- Operates within a temperature range of -40°C to 105°C.
- Wirewound construction ensures high bias current capability and stability.
- Designed for surface mount applications with 4 pins providing secure termination.
- Low DC resistance of 70 mΩ leads to improved performance and efficiency.
Product Description
Panasonic ETQP5M Shielded Wirewound Surface Mount Inductor with a metal composite core delivers 22 μH inductance with ±20 % tolerance at a maximum DC current of 4.8 A. Its 0854 package is designed for compact surface mount applications requiring efficient noise filtering and stable inductance performance.
The ETQP5M series utilizes a metal composite core with a wirewound inductor construction, ensuring high reliability and stable operation under harsh conditions. Classified under the automotive standard AEC-Q200, it offers heat resistance up to 105°C and low DC resistance of 70 mΩ. The device provides magnetic shielding to minimize electromagnetic interference, making it ideal for use in automotive and industrial electronics.
With a length of 8.5 mm, a height of 5.4 mm, and a depth of 8 mm, this surface mount inductor is suitable for dense PCB layouts. It features 4 pins for robust termination and includes molded construction for mechanical strength.
Typical applications include DC-DC converters and noise filters where high peak current and temperature tolerance are vital. The inductor’s design reduces buzz noise and eddy current losses, supporting high efficiency electronic circuits.
Constructed with a metal composite core for durability and efficiency. Features a compact 0854 package size measuring 8.5mm in length. Complies with automotive standard AEC-Q200 for high reliability. Includes shielding to reduce electromagnetic interference effects.
Operates within a temperature range of -40°C to 105°C. Wirewound construction ensures high bias current capability and stability. Designed for surface mount applications with 4 pins providing secure termination. Low DC resistance of 70 mΩ leads to improved performance and efficiency.
RoHS compliant manufacturing for environmental safety. Suitable for DC-DC converters and noise filters in automotive and industrial electronics. Explore more high-quality Surface Mount Inductors and electronic components at EnvMart, your reliable source for industrial and automotive electronic parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 22 μH with a tolerance of ±20%.
It can handle a maximum DC current of 4.8 A.
This inductor has dimensions of 8.5 mm in length, 5.4 mm in height, and 8 mm in depth.
The operating temperature range is from -40°C to 105°C.
It features a wirewound construction with a metal composite core.
The inductor includes shielding to minimize electromagnetic interference effects.
The DC resistance is low at 70 mΩ, which contributes to improved performance and efficiency.
It complies with the automotive standard AEC-Q200 and is RoHS compliant.
This model has 4 pins for secure termination.
It uses a compact 0854 package size.
The country of origin for this inductor is India.
