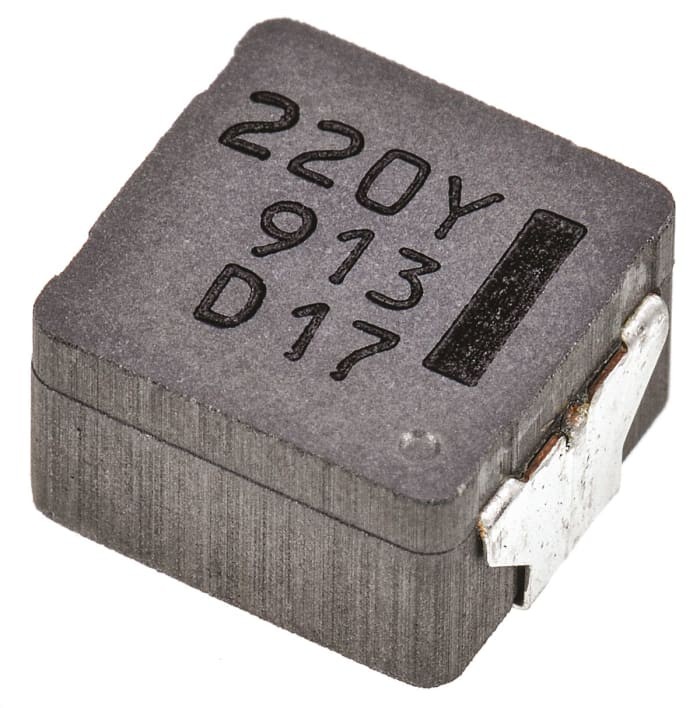

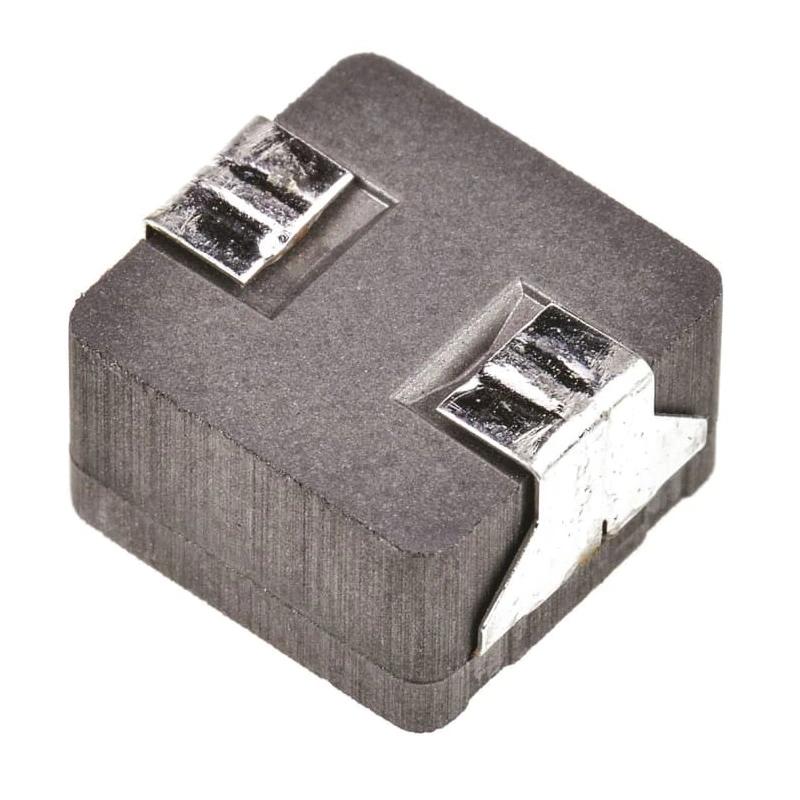

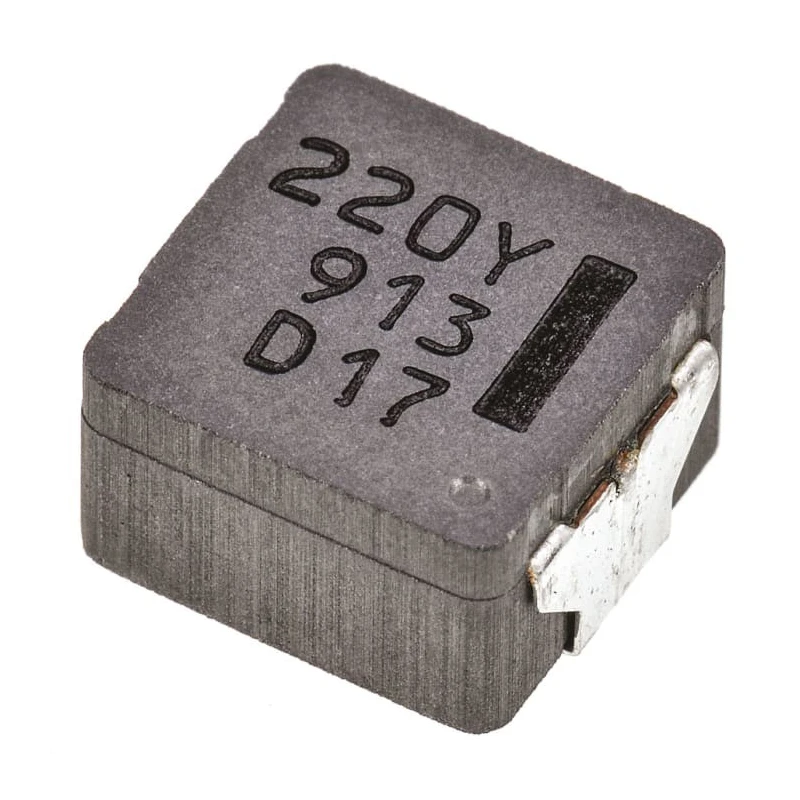

Panasonic 22 μH Shielded Wirewound Surface Mount Inductor with Metal Composite Core 4.8 A Idc ETQP5M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 5.4mm |
| Length | 8.5mm |
| Model | ETQP5M |
| Depth | 8mm |
| Series | ETQP5M |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal Composite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 0854 |
| Maximum DC Current | 4.8A |
| Pin Count | 4 |
| Maximum DC Resistance | 70mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a wirewound design featuring a metal composite core.
- Inductance tolerance of ±20 % ensures consistent electrical performance.
- Equipped with 4 pins for stable surface mounting.
- Designed to handle a maximum DC current of 4.8 A safely.
- Complies with AEC-Q200 automotive reliability standards.
- Operates within temperature range of -40°C to 105°C.
- Includes magnetic shielding to reduce electromagnetic interference.
- Maximum DC resistance is 70 milliohms, reducing power losses.
Product Description
Panasonic ETQP5M shielded wirewound surface mount inductor featuring a metal composite core provides reliable inductance of 22 μH with ±20 % tolerance and supports a maximum DC current of 4.8 A. Part of the ETQP5M series, it is engineered for high reliability and automotive applications, being AEC-Q200 qualified.
This inductor is designed with a wirewound construction and metal composite core technology that delivers excellent inductance stability, low noise operation, and high vibration resistance. Its integrated magnetic shielding enhances electromagnetic compatibility, making it suitable for noise filtering and DC-DC converter circuits in automotive and industrial environments.
With a compact 0854 package size, the component dimensions are 8.5 mm in length, 5.4 mm in height, and 8 mm in depth, which suits surface mount assembly on PCBs. The inductor’s electrical specifications include a maximum DC resistance of 70 milliohms and an operating temperature range from -40°C to 105°C, ensuring durability and steady operation in harsh conditions.
Typical applications include automotive electronic control units, power management circuits, and industrial noise suppression setups. The ETQP5M inductor supports improved circuit efficiency through low eddy current loss and minimal power dissipation. It complies with RoHS standards, ensuring environmentally responsible manufacturing.
Constructed with wirewound technology and metal composite magnetic core. Offers 22 μH inductance with ±20 % tolerance for precise circuit design. Maximum DC current rating of 4.8 A with low DC resistance of 70 milliohms.
AEC-Q200 qualified for automotive reliability and safety standards. Includes magnetic shielding for enhanced EMI mitigation. Compact surface mount 0854 package suitable for dense PCB layouts. Rated for operation between -40°C and 105°C for industrial and automotive use.
Low buzz noise and high vibration resistance characteristics. RoHS compliant to meet environmental regulations.
Explore the Panasonic ETQP5M series for advanced Surface Mount Inductors that deliver high performance in industrial, automotive, and electronic power applications. Check further details and discover complementing components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 22 μH with an inductance tolerance of ±20%.
This unit can handle a maximum DC current of 4.8 A safely.
The dimensions of this inductor are 8.5 mm in length, 5.4 mm in height, and 8 mm in depth.
It features a wirewound construction with a metal composite core.
This model operates within a temperature range of -40°C to 105°C.
It is equipped with 4 pins for stable surface mounting.
The maximum DC resistance is 70 milliohms, which helps reduce power losses.
Yes, it complies with AEC-Q200 automotive reliability standards.
Typical applications include automotive electronic control units, power management circuits, and industrial noise suppression setups.
This model uses a surface mount termination style.
Yes, it includes magnetic shielding to enhance electromagnetic compatibility and reduce interference.
It complies with RoHS standards, ensuring environmentally responsible manufacturing.
