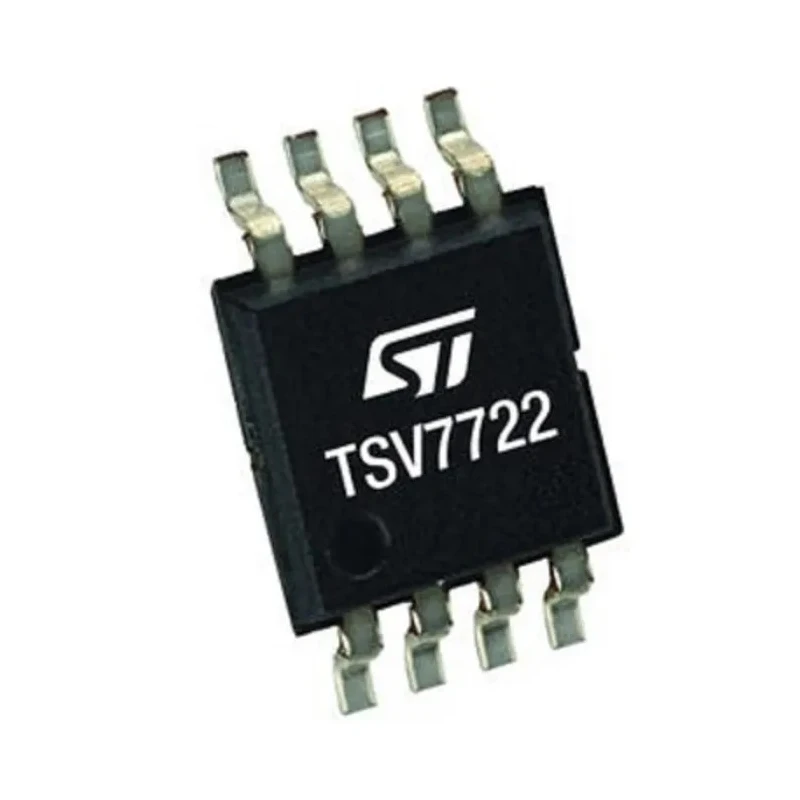

STMicroelectronics Operational Amplifier Surface Mount 22 MHz Gain Bandwidth 5.5V 8-Pin Dual Channel TSV7722IST
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 5mm |
| Model | TSV7722IST |
| Width | 4mm |
| Mount Type | Surface |
| Series | TSV7722 |
| Output Current | 40mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| GBP - Gain Bandwidth Product | 22MHz |
| Input Bias Current | 20 pA |
| Slew Rate | 11V/μs |
| Input Offset Current | 75 pA |
Key Features
- The device features a gain bandwidth product of 22 MHz ensuring adequate frequency response for high-speed applications.
- Designed for a maximum supply voltage of 5.5V with low input offset voltage of 650 µV ensuring high accuracy.
- Dual channel configuration with 8-pin SO package supports integration in compact PCB designs.
- Wide operating temperature range from -40°C to 125°C suitable for automotive and industrial environments.
- Low input bias current of 20 pA and fast slew rate of 11 V/µs provide superior dynamic performance.
- Compliant with RoHS standards and automotive AEC-Q100 certification enhance reliability and environmental safety.
- Output current capability of 40 mA supports a variety of electronic load conditions.
Product Description
STMicroelectronics TSV7722IST is a surface-mount operational amplifier optimized for precision applications requiring a 22 MHz gain bandwidth product. This dual-channel amplifier housed in an 8-pin SO package operates at a maximum voltage of 5.5V, making it ideal for low-side current measurements and general signal amplification.
Its low input offset voltage of 650 µV and input bias current of 20 pA enable high precision and low noise in sensitive electronic circuits. The device supports a fast slew rate of 11 V/µs ensuring minimal distortion in dynamic signal conditions.
Designed to withstand temperature extremes from -40°C to 125°C, the TSV7722IST meets automotive-grade standards with AEC-Q100 qualification. This robustness makes the amplifier suitable for both industrial and automotive electronics.
Compact dimensions (5 mm length, 4 mm width, and 1.75 mm height) and the SO package type facilitate dense PCB layouts. With an output current capacity of 40 mA, it can drive a variety of loads efficiently.
The product complies with RoHS regulations, ensuring environmentally safe materials and manufacturing processes. High accuracy input offset voltage and low input bias current for sensitive measurements. Fast slew rate minimizes signal distortion during rapid changes.
Automotive standard certification AEC-Q100 provides enhanced reliability. Compact footprint supports space-constrained electronic designs. Wide operating temperature range accommodates harsh environments.
This Operational Amplifier is ideal for electronic, automotive, industrial, and instrumentation applications requiring reliable performance and precision. Explore a wide range of STMicroelectronics electronic components and amplifiers at EnvMart for your project or production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSV7722IST features a gain bandwidth product of 22 MHz, ensuring adequate frequency response for high-speed applications.
This operational amplifier operates at a maximum supply voltage of 5.5V.
The input offset voltage of this model is 650 µV, which contributes to its high accuracy in sensitive applications.
It has an output current capability of 40 mA, allowing it to support a variety of electronic load conditions.
The operational amplifier operates within a wide temperature range from -40°C to 125°C, making it suitable for automotive and industrial environments.
This model features a fast slew rate of 11 V/µs, which helps minimize distortion in dynamic signal conditions.
The dimensions of this operational amplifier are 5 mm in length, 4 mm in width, and 1.75 mm in height.
It is housed in an 8-pin SO (Surface Mount) package, which supports integration in compact PCB designs.
This operational amplifier complies with RoHS standards and has automotive AEC-Q100 certification, enhancing its reliability and environmental safety.
The TSV7722IST is a dual-channel operational amplifier, providing two amplification paths in a single package.
The input bias current for this operational amplifier is 20 pA, which contributes to its precision and low noise performance.
This operational amplifier is suitable for electronic, automotive, industrial, and instrumentation applications requiring reliable performance and precision.
