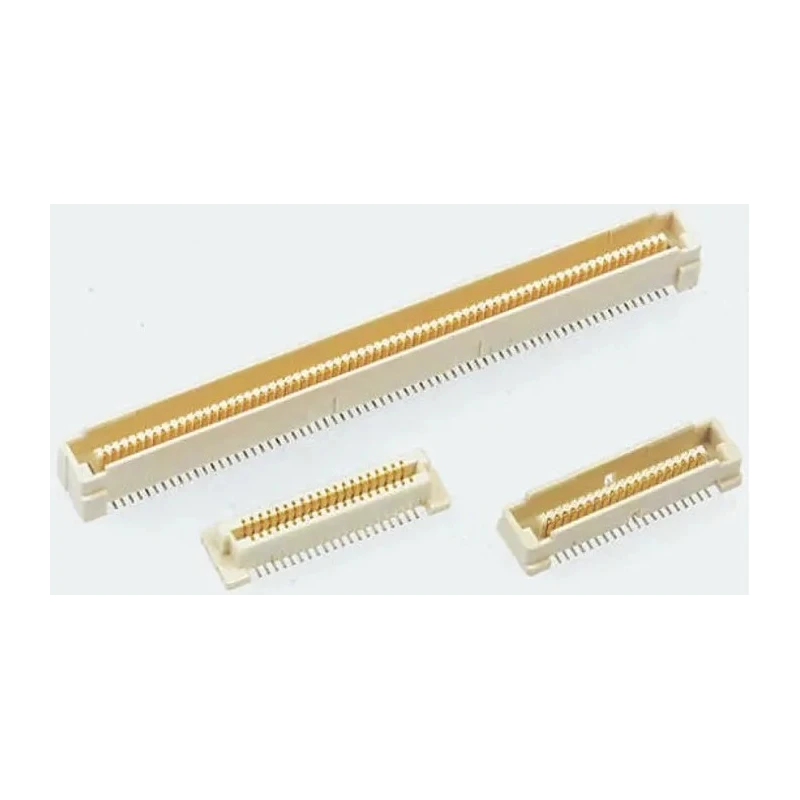

TE Connectivity Free Height Series Straight Surface PCB Socket 100-Contact 2 Row 0.8 mm Pitch Solder 5-5179009-4

TE Connectivity 5-5179009-4 Free Height Series Straight Surface PCB Socket is a high precision 0.8 mm pitch board-to-board connector with 100 contacts arranged in 2 rows. Manufactured using durable Liquid Crystal Polymer housing and featuring gold-plated Beryllium Copper Alloy contacts, it provides a reliable electrical connection with an operating voltage of 100 V and a current rating of 500 mA.

This PCB socket supports parallel board stacking with its free height mezzanine design, offering stacking heights from 5 mm up to 16 mm depending on the mate configuration. The bellows type spring contacts resist common mechanical damages such as scooping and stubbing during mating cycles, ensuring long-lasting performance.

Its compact subminiature packaging reduces PCB space usage by more than 50% over traditional 1.27 mm centerline connectors, making it ideal for space-constrained designs typically found in modern electronic devices like notebook PCs, mobile phones, and pen pads.

The socket features polarization to prevent incorrect mating and includes PCB positioning bosses to ensure accurate alignment during assembly. The surface mount solder termination assures secure mechanical and electrical connection to the PCB.

Designed for reliable operation across a wide temperature range from -40°C to 125°C, this TE Connectivity socket is suitable for demanding electronic component applications. It is manufactured in China and conforms to stringent quality standards but bears no specific approvals.

Suitable for parallel board stacking applications. High density subminiature packaging saves PCB space. Bellows type spring design ensures reliable electrical contact. Polarization and positioning bosses for accurate mating.

Operating voltage of 100 V and current rating of 500 mA. Durable Liquid Crystal Polymer housing. Gold-plated Beryllium Copper Alloy contacts resist corrosion. Surface mount solder termination type. Wide operating temperature range (-40°C to 125°C).

Ideal for miniaturized electronics fastening.

These connectors enable flexible stack heights from 5 mm to 16 mm when combined with different board mount plugs, supporting versatile industrial, commercial, and consumer electronic device applications. Browse more PCB Sockets and connectors on EnvMart for extensive industrial-grade component selections.
