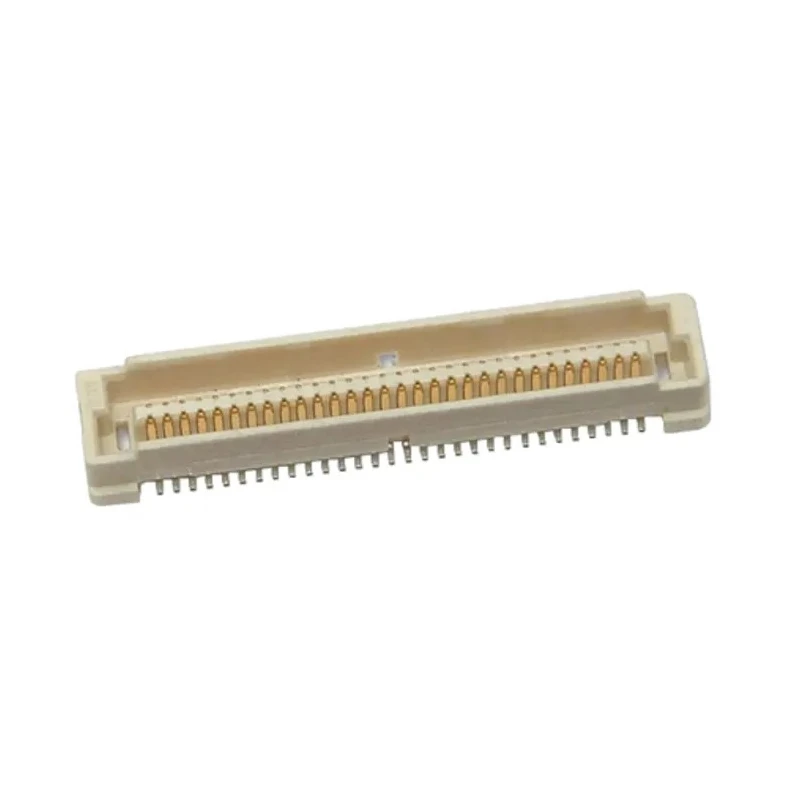

TE Connectivity Free Height Series Straight Surface PCB Header, 60 Contact, 0.8 mm Pitch, 2 Row, Shrouded 5177984-2

TE Connectivity 5177984-2 Free Height Series Straight Surface PCB Header is a high-quality board-to-board connector designed for miniature parallel board stacking applications. Featuring 60 gold-plated male copper alloy contacts spaced at a 0.8 mm pitch, this 2-row header offers a compact, high-density configuration to optimize PCB layout and save valuable space.

The connector's thermoplastic housing includes polarization features to prevent mis-mating, along with locating bosses to ensure precise PCB placement during assembly. The shrouded design adds mechanical protection and alignment support.

Its bellows-type spring contact design provides excellent signal integrity and resistance to contact damage during mating and unmating cycles, ensuring dependable electrical performance. Rated for currents up to 500mA and voltages up to 100V, it is suitable for a variety of electronic applications including telecommunications, industrial, military, aerospace, and high-end computing equipment.

Operating temperature ranges from -55°C to 105°C make the 5177984-2 suitable for demanding environments. The surface mount solder termination allows for easy integration with SMT assembly lines and automated production processes.

Compact high-density design saves PCB space. 60 male contacts arranged in 2 straight rows. Gold-plated copper alloy contacts ensure reliable electrical connection. Thermoplastic housing with polarization prevents mis-mating.

Supports board-to-board mounting in parallel board stacking applications. Rated for 500mA current and 100V voltage. Operates reliably between -55°C and 105°C. Surface mount solder termination type for SMT assembly. Includes locating bosses for accurate PCB placement.

Manufactured in China under the Free Height series specification.

This PCB Header is ideal for downsizing electronic devices requiring high-density parallel board stacking, including test cards, card extenders, and communications equipment. It is widely used in industrial, laboratory, manufacturing, aerospace, and military electronic systems where reliable, compact board-to-board connection is essential.
