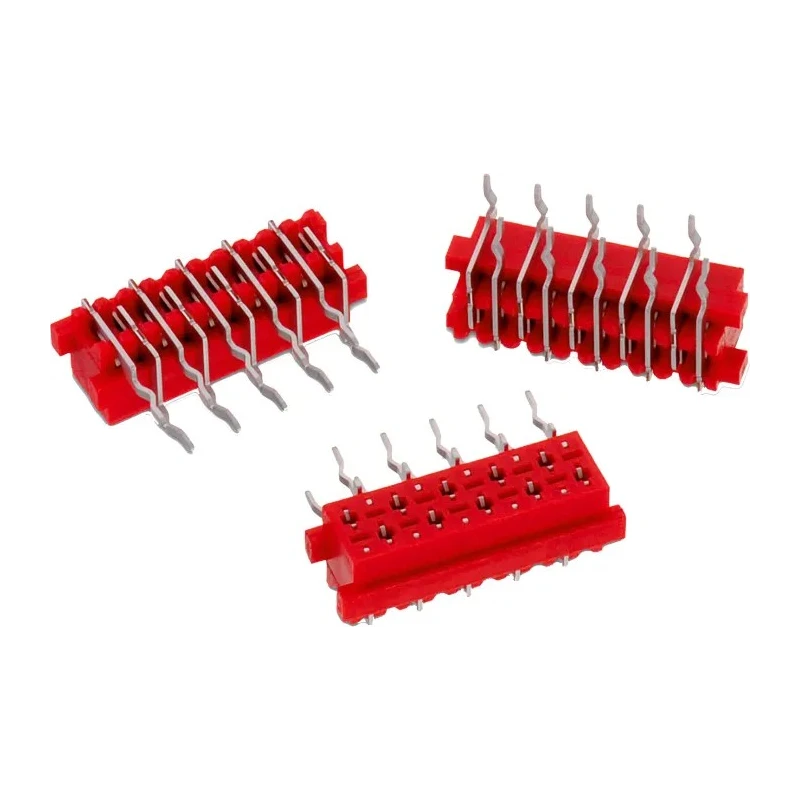

Wurth Elektronik WR-MM Series Right Angle Through Hole PCB Header, 22 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 690368182272

Wurth Elektronik 690368182272 is a WR-MM Series Right Angle Through Hole PCB Header with 22 contacts arranged in 2 rows and 2.54 mm pitch. Designed for high-reliability wire-to-board connections, this shrouded, female connector is built for electronic component applications requiring compact and rugged solutions.

The polybutylene terephthalate housing offers excellent UL94 V-0 flame retardance and mechanical stability. The right angle orientation optimizes PCB assembly layouts while maintaining electrical integrity. Contact pins are phosphor bronze, plated with matt tin over nickel for corrosion resistance and enhanced conductivity.

This PCB header supports electrical currents up to 1.5A and voltages as high as 250V, making it suitable for a wide range of industrial and commercial electronic devices. It operates efficiently within a temperature range from -40°C to +105°C, suitable for demanding environmental conditions.

The through-hole solder termination ensures a secure mechanical mount and robust solder connection on the printed circuit board. The shrouded design protects contacts from damage and accidental shorts, enhancing device reliability.

Tail pins are 2.9 mm in length, compatible with standard PCB footprints. The product complies with RoHS and UL E323964, demonstrating adherence to international safety and environmental standards.

Applications include industrial electronics assemblies, power supplies, communication devices, and embedded systems requiring dependable PCB mounting solutions. Wurth Elektronik connectors are known for quality, precision, and durability in electronic manufacturing and design.

The connector features a right angle orientation with 2 rows of contacts for compact PCB mounting. It uses a polybutylene terephthalate housing material with UL94 V-0 flammability rating for safety. Contacts are female, made of phosphor bronze with matt tin over nickel plating to ensure durability.

Suitable for currents up to 1.5A and voltages up to 250V, suitable for various electronic circuits. Operating temperature range is from -40°C to 105°C, ensuring performance in harsh environments. Mounting type is through hole with solder termination for stable mechanical and electrical connection.

The connector is shrouded to prevent accidental short circuiting and improve contact reliability. Tail pin length is 2.9 mm, compatible with standard PCB layouts and designs. Meets RoHS and UL E323964 standards, ensuring compliance with industry safety and environmental regulations.
