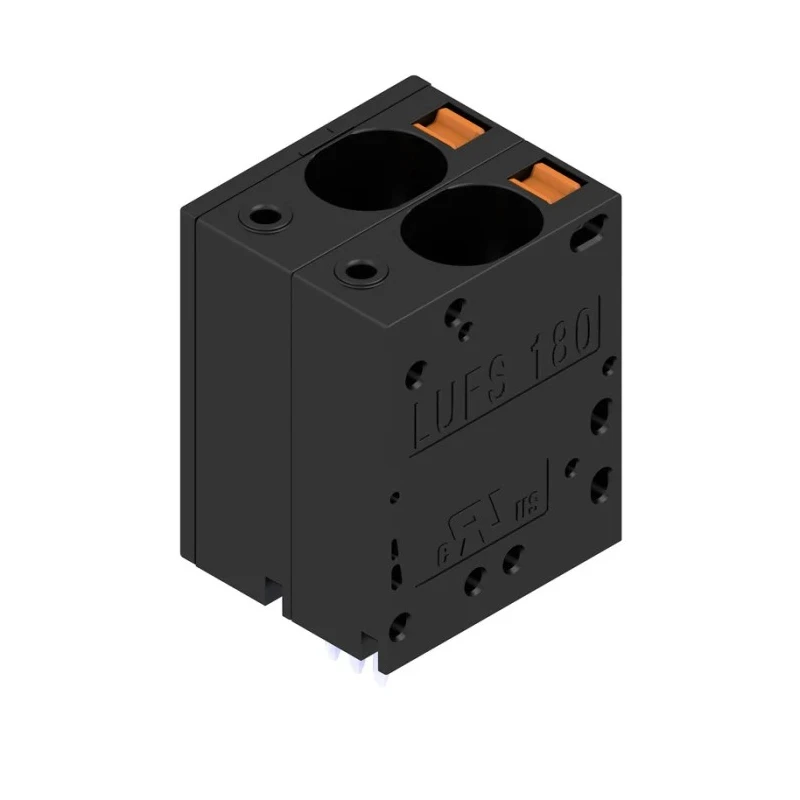

Weidmüller LU Series PCB Terminal Block 6-Contact 15 mm Pitch 1 Row 600V Black Polyamide 2492250000
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 600V |
| Brand | Weidmüller |
| Colour | Black |
| Orientation | 180° |
| Current | 57A |
| Depth | 24.7mm |
| Width | 86.58mm |
| Housing Material | Polyamide |
| Series | LU |
| Number of Rows | 1 |
| Pitch | 15mm |
| Standards/Approvals | cURus, CSA |
| Number of Contacts | 6 |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 16mm² |
| Minimum Wire Size AWG | 18AWG |
| Maximum Wire Size AWG | 4AWG |
| Wire Connection Method | Push-in with Actuator |
Key Features
- Supports a maximum current of 57A for reliable power transmission.
- Features a 15 mm pitch suitable for precise PCB mounting.
- Constructed with durable black polyamide housing for robust insulation.
- 180° conductor outlet orientation with push-in wire connection using an actuator.
- Compatible with wire sizes ranging from 0.5 mm² (18 AWG) to 16 mm² (4 AWG).
- Rated for voltage up to 600 volts, meeting cURus and CSA standards.
- Ideal for applications including solar inverters, frequency converters, servo-controllers, and power supplies.
Product Description
Weidmüller 2492250000 LU Series PCB Terminal Block is a high-performance connector designed to meet demanding current and voltage requirements in power electronics. With 6 contact points arranged in a single row and a 15 mm pitch, it provides secure and efficient PCB connection.
The terminal block features a robust polyamide housing colored black, ensuring excellent electrical insulation and durability. Its push-in wire connection method with actuator facilitates easy and reliable wiring, supporting wire sizes from 0.5 mm² to 16 mm² (18 AWG to 4 AWG).
Rated for a maximum current of 57A and voltage of 600V, this component complies with cURus and CSA safety standards, ensuring safe operation in industrial environments.
The conductor outlet is oriented at 180°, accommodating various installation requirements. Its compact size with a depth of 24.7 mm and width of 86.58 mm allows integration into tight spaces on PCBs.
This terminal block is widely used in industrial applications such as solar inverters, frequency converters, servo-controllers, and power supplies, making it an essential component for reliable and efficient power electronics systems.
Supports a maximum current of 57A for reliable power transmission. Features a 15 mm pitch suitable for precise PCB mounting. Constructed with durable black polyamide housing for robust insulation. 180° conductor outlet orientation with push-in wire connection using an actuator.
Compatible with wire sizes ranging from 0.5 mm² (18 AWG) to 16 mm² (4 AWG). Rated for voltage up to 600 volts, meeting cURus and CSA standards. Compact dimensions: depth 24.7 mm, width 86.58 mm ensuring space-efficient installation.
Ideal for applications including solar inverters, frequency converters, servo-controllers, and power supplies. Explore more PCB Terminal Blocks and related power connectors on EnvMart for your electronic component sourcing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum current of 57A for reliable power transmission.
This model is rated for a voltage of up to 600V, meeting cURus and CSA standards.
It is compatible with wire sizes ranging from 0.5 mm² (18 AWG) to 16 mm² (4 AWG).
The contacts are arranged with a pitch of 15 mm, suitable for precise PCB mounting.
The conductor outlet is oriented at 180°, accommodating various installation requirements.
It is constructed with durable black polyamide housing, ensuring robust insulation.
The compact dimensions are a depth of 24.7 mm and a width of 86.58 mm, allowing for space-efficient installation.
It features a push-in wire connection method with an actuator for easy and reliable wiring.
This model has 6 contact points arranged in a single row.
It is ideal for applications including solar inverters, frequency converters, servo-controllers, and power supplies.
It complies with cURus and CSA safety standards, ensuring safe operation in industrial environments.
This terminal block is part of the Weidmüller LU Series.
