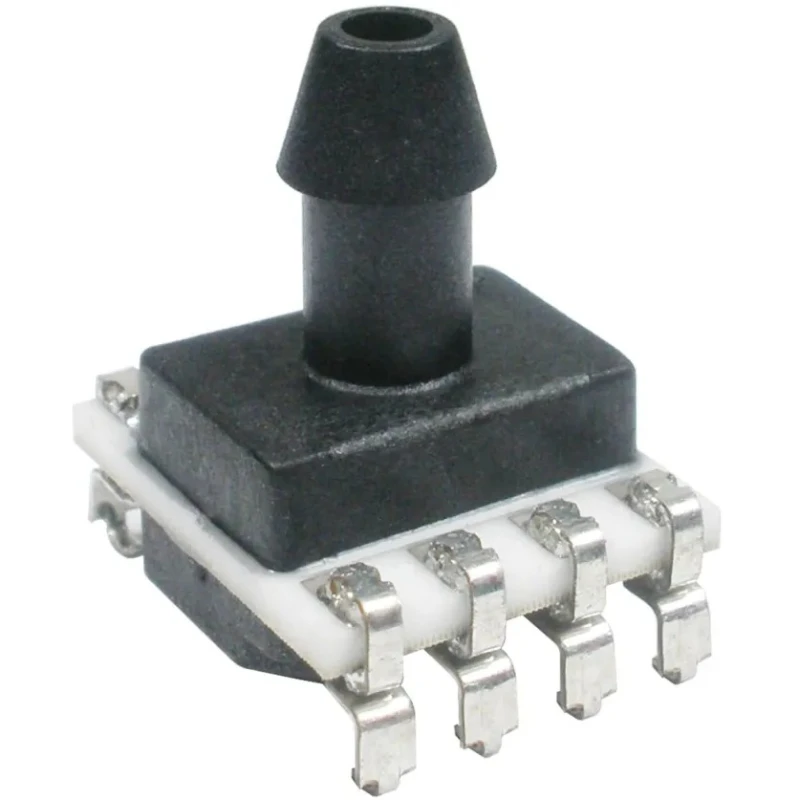

Honeywell Technologies Gauge Pressure Sensor Surface Mount 4 Pin SIP Package HSCSANN015PGAA3
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 15 psi |
| Height | 13.75mm |
| Length | 10mm |
| Model | HSCSANN015PGAA3 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 13.3mm |
| Mount Type | Surface |
| Series | HSC |
| Maximum Operating Temperature | 85°C |
| Port Type | Single Axial Barbed |
| Package Type | SIP |
| Minimum Operating Temperature | -20°C |
| Maximum Output Voltage | 6V |
| Pin Count | 4 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3.3V |
| Minimum Output Voltage | -0.30V |
| Minimum Operating Pressure | 0psi |
| Maximum Overload Pressure | 30psi |
Key Features
- Offers gauge pressure sensing with a maximum operating pressure of 15 psi.
- Features a piezoresistive pressure sensor for precise analog output.
- Compact SIP package suitable for surface mounting with 4 pins.
- Wide operating temperature range from -20°C to 85°C.
- High accuracy of ±0.25% ensures reliable measurements.
- Single axial barbed port for pressure interface.
- Supports supply voltage range from 3.3V to 5V.
- Maximum overload pressure of 30 psi for durability.
Product Description
Honeywell Technologies HSCSANN015PGAA3 is a high-precision gauge pressure sensor designed for surface mounting applications, housed in a 4 pin SIP package. Operating within a voltage range of 3.3V to 5V, this piezoresistive pressure sensor delivers an analog output that is ideal for various industrial, electronic component, and semiconductor applications.
With a maximum operating pressure of 15 psi and an overload protection up to 30 psi, it ensures reliable performance and robustness under demanding conditions. The sensor offers excellent accuracy at ±0.25%, making it suitable for precise pressure measurement tasks.
The sensor is compact, with dimensions of 13.75 mm height, 13.3 mm width, and 10 mm length, and includes a single axial barbed port for pressure measurement. It operates effectively over a temperature range of -20°C to 85°C, enhancing its versatility in different environments.
This model complies with RoHS and REACH directives, emphasizing its environmental safety credentials. The package type is SIP, facilitating easy integration into surface mount circuit boards commonly used in electronics manufacturing.
Typical applications include instrumentation for industrial machines, electronics, HVAC systems, laboratory equipment, and semiconductor device assemblies where precise pressure sensing is critical.
Offers gauge pressure sensing with a maximum operating pressure of 15 psi. Features piezoresistive technology for accurate analog output. Compact SIP package with surface mount capability and 4 pins. High accuracy of ±0.25% for precise measurement.
Wide operating temperature range from -20°C to 85°C. Single axial barbed port design for pressure interface. Supports supply voltages between 3.3V and 5V. Maximum overload pressure of 30 psi ensures durability. Complies with RoHS and REACH environmental standards.
Compact dimensions for space-efficient PCB integration. Explore more in the Electronics & Electricals Sensors category at EnvMart to find compatible pressure sensing solutions and related components.
Explore more products in our Pressure Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 15 psi.
It has an accuracy of ±0.25%, ensuring reliable measurements for various applications.
This sensor operates effectively within a temperature range of -20°C to 85°C.
It features a single axial barbed port for pressure measurement.
The dimensions of this model are 13.75 mm in height, 13.3 mm in width, and 10 mm in length.
It supports a supply voltage range from 3.3V to 5V.
The maximum overload pressure is 30 psi, providing added durability.
This model is designed for surface mounting and comes in a SIP package.
It is suitable for applications in instrumentation for industrial machines, HVAC systems, laboratory equipment, and semiconductor device assemblies.
It utilizes piezoresistive technology for accurate analog output.
This model complies with RoHS and REACH directives, indicating its environmental safety credentials.
This sensor has a pin count of 4, suitable for easy integration into circuits.
