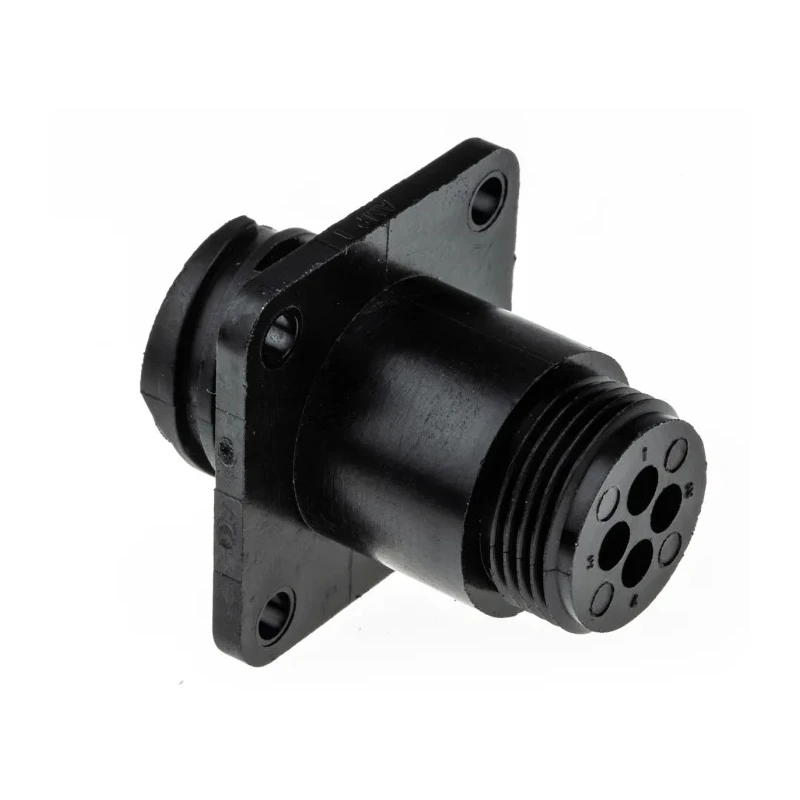

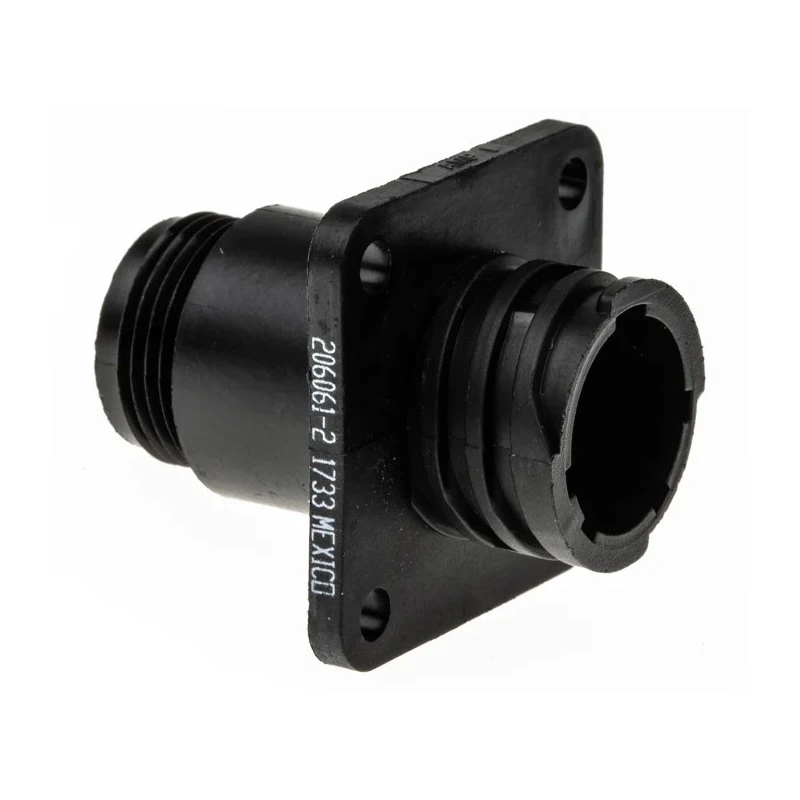

TE Connectivity Circular Connector 4 Contacts Panel Mount Socket Male CPC Series 600V 11mm 206061-2
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 206061-2 |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Series | CPC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 4 |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shell Size | 11 |
| Mating Type | Keyed |
| Connector Size | Standard |
| Plug/Socket | Socket |
| Coding | A |
Key Features
- Features a straight body orientation for easy panel mounting.
- Rated for voltage up to 600V and current up to 45A per contact.
- Constructed with thermoplastic housing for durability and strength.
- Operates reliably between -55°C and 105°C temperature range.
- Uses a crimp termination method to ensure secure contact connections.
- Polarized design ensures proper mating and prevents mismatching.
- Shell size measures 11 mm for standard connector compatibility.
- Male contact gender with socket plug type for secure electrical connection.
Product Description
TE Connectivity 206061-2 Circular Connector 4 Contacts is a high-quality panel mount socket male connector from the CPC Series, engineered to meet demanding industrial requirements. This connector supports a voltage rating of 600V and is capable of handling current up to 45A per contact, making it suitable for a wide range of electrical and electronic equipment.
The connector features a straight body orientation to facilitate easy and secure panel mounting. Its thermoplastic housing material ensures robust protection against mechanical impact and environmental factors. Designed for unshielded applications, it employs a crimp termination type for reliable and consistent contact connections. The shell size measures 11 mm, conforming to standard industry dimensions.
Operating temperatures range from -55°C to 105°C, enabling stable performance in harsh industrial environments. The connector includes built-in pin and socket protection and is polarized to guarantee correct mating and prevent damage due to incorrect assembly.
Keyed mating type and a positive lock mechanism allow quick connect and disconnect while preventing accidental disengagement. This makes it ideal for industrial automation systems and commercial electronics where dependable connector systems are essential.
Manufactured in Mexico, the connector complies with UL and CSA standards, ensuring safety and quality. It does not include additional approvals but is UL approved and CSA certified for industrial use.
Features a straight body orientation for easy panel mounting. Rated for voltage up to 600V and current up to 45A per contact. Constructed with thermoplastic housing for durability and strength. Operates reliably between -55°C and 105°C temperature range.
Uses a crimp termination method to ensure secure contact connections. Polarized design ensures proper mating and prevents mismatching. Shell size measures 11 mm for standard connector compatibility. Male contact gender with socket plug type for secure electrical connection.
Offers keyed mating type to prevent improper coupling. Ideal for industrial automation and commercial electronics applications.
This TE Connectivity circular connector is a reliable choice for industrial electrical connections requiring secure, durable, and efficient connectivity solutions. For more Industrial Circular Connectors and related products, explore EnvMart's extensive catalogue.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of up to 600V.
It can handle a maximum current of 45A per contact.
The connector operates reliably between -55°C and 105°C.
It employs a crimp termination method to ensure secure contact connections.
The shell size measures 11 mm, conforming to standard connector compatibility.
This connector features 4 contacts.
The housing is constructed from thermoplastic, providing durability and strength.
Yes, it has a polarized design to ensure proper mating and prevent mismatching.
It features a straight body orientation for easy panel mounting.
The connector is manufactured in Mexico.
It is ideal for industrial automation systems and commercial electronics applications.
It utilizes a keyed mating type to prevent improper coupling.
