Wurth Elektronik DC Input 4-Channel Optocoupler Through Hole 4-Pin DIP 140816140110

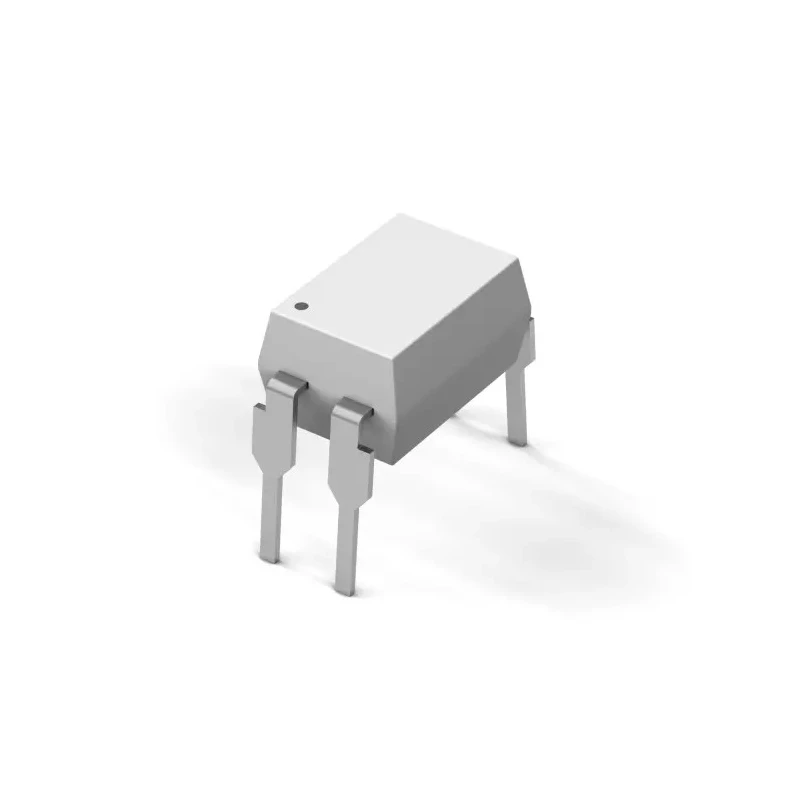

Wurth Elektronik 140816140110 is a DC input 4-channel optocoupler designed with a through-hole 4-pin DIP package measuring 6.5 mm x 4.58 mm x 3.5 mm. It features a phototransistor output type capable of handling a maximum forward voltage of 1.4 V and input current up to 60 mA, with power dissipation at 200 mW. This device offers high electrical isolation rated at 5000 Vrms which enhances safety and signal integrity in electronic circuits.

Its fast typical rise time of 3 microseconds and fall time of 4 microseconds provide swift switching for controlling loads, making it suitable for applications such as test and measurement equipment, data communications, power supply circuits, and various sensor interfaces. The 4-channel configuration allows simultaneous isolation of multiple signals in a compact form factor.

Operating temperature ranges from -55°C to 110°C ensuring reliable performance under harsh environmental conditions. The device complies with multiple industry standards including VDE, RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21, assuring quality and compliance. The optocoupler is packaged in tubes for easy handling during assembly in through-hole mounting processes.

Contains 4 channels in a compact DIP package. Phototransistor output ensures stable switching performance. Maximum forward voltage is 1.4 volts. Offers high isolation voltage of 5000 Vrms for electrical safety. Supports input current up to 60 mA DC for robust operation.

Typical rise and fall times are 3 μs and 4 μs respectively for fast switching. Operating temperature ranges from -55°C to 110°C. Maximum current transfer ratio is 600% with a minimum of 50%. Complies with industry standards including VDE, RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21.

Packaged in a tube suitable for through-hole mounting applications.

This optocoupler is widely used in industrial and electronic circuits requiring electrical isolation and noise reduction. Typical use cases include industrial control systems, instrumentation, power supplies, communications equipment, and sensor input isolation. The high isolation voltage protects sensitive electronics from high voltage surges and improves noise immunity in harsh electrical environments.
