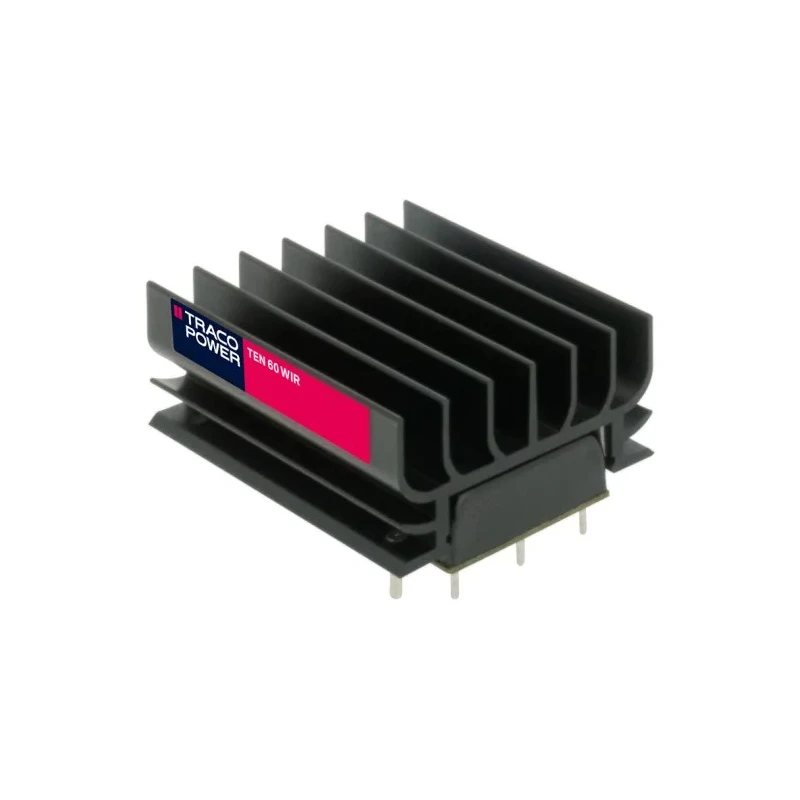

TRACOPOWER Ruggedized Railway Approved 60W DC/DC Converter 12V DC 5A 160V DC Input 36V Input PCB TEN 60-7212WIR

TRACOPOWER TEN 60-7212WIR is a rugged, railway-approved DC/DC converter designed to supply a stable 12V DC output at 5A from a wide input voltage range of 36V to 160V DC. Featuring an encapsulated metal package optimized for PCB mounting, this converter provides enhanced resistance to electromagnetic interference, shock, vibration, and thermal shocks, making it ideal for demanding industrial and railway applications.

This model delivers a maximum output power of 60 watts with a high efficiency rate of up to 92%, contributing to energy-efficient operation and reduced heat generation, supported further by a preassembled heatsink. The unit operates reliably within a temperature range of -40 °C to +90 °C, maintaining performance without derating up to 70 °C ambient temperature.

Key technical highlights include a 4:1 input voltage ratio, 3 kV isolation voltage for electrical safety, 125 mV ripple and noise to ensure signal integrity, and adjustable output voltage along with remote On/Off control for advanced system design flexibility.

The TEN 60-7212WIR meets rigorous railway standards EN 50155 and EN 61373, certifying its capability to withstand harsh railway environmental conditions including mechanical shocks and vibrations. Additionally, it is rated for fire behavior compliance according to EN 45545-2, enhancing safety in transport applications.

Compact and lightweight, the converter measures 50.8mm in length, 40.7mm in width, and 25.4mm in depth, weighing just 66.9 grams. These physical dimensions enable ease of integration into space-constrained systems requiring durable power conversion solutions.

The converter features a rugged encapsulated metal package designed for PCB mounting. It offers high efficiency up to 92% and a maximum operating temperature of 90 °C. The device includes isolation voltage of 3 kV and low ripple noise of 125 mV peak-to-peak.

It supports adjustable output voltage and remote On/Off control functionality. Complies with EN 50155 and EN 61373 standards for railway applications. Designed to operate reliably between -40 °C and +90 °C, suitable for harsh environments.

Compact size with dimensions approximately 50.8mm x 40.7mm x 25.4mm and a weight of 66.9g.

This DC/DC converter is well-suited for industrial, railway, transportation, and rugged electronic applications demanding reliable power conversion from wide input voltages. Its proven standards compliance, thermal management, and robust design allow dependable performance in harsh operating conditions.
