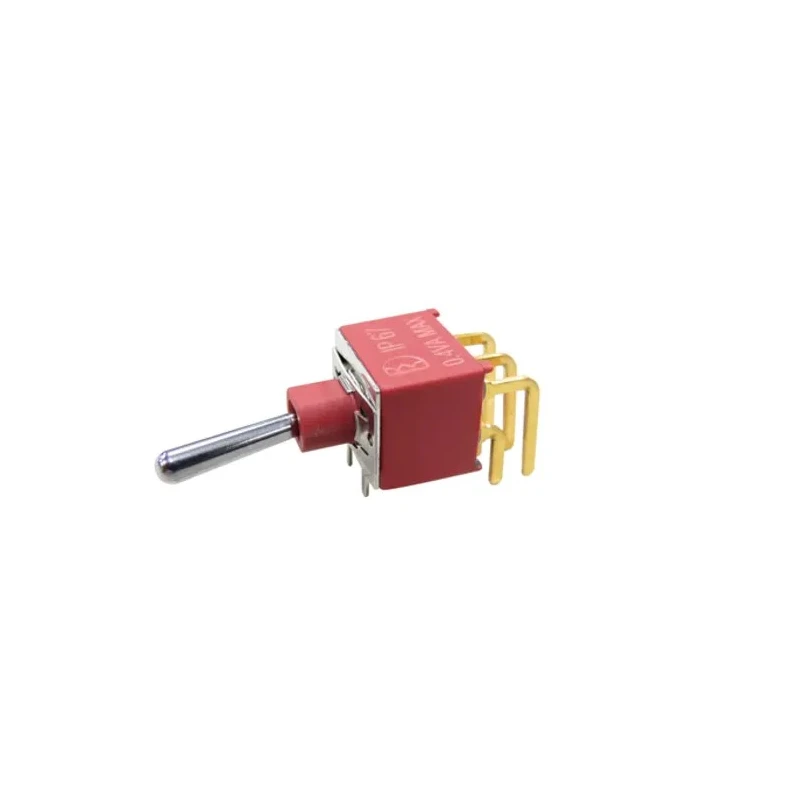

RS PRO Toggle Switch Through Hole Mount On-None-On SPDT Right Angle Terminal IP67 5A Current 209-9345
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Length | 12.7mm |
| Model | 209-9345 |
| IP Rating | IP67 |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Right Angle Through Hole |
| Standards/Approvals | RoHS 2011/65/EU & 2015/863 |
| Switch Operation | On-None-On |
| Switch Contact Current | 5A |
| Actuator Material | Chrome Plated Brass |
Key Features
- This toggle switch operates as a single pole double throw (SPDT) providing versatile circuit control.
- The switch has a rugged chrome plated brass actuator for durable operation.
- Designed for use in harsh environments with an IP67 rating ensuring dust and water resistance.
- It supports a current rating of 5 amperes suitable for various electrical applications.
- The operating temperature range spans from -40°C to 85°C allowing use in wide ambient conditions.
- Features a right angle through hole terminal mount for PCB installation.
- This switch provides a mechanical life of up to 30,000 cycles ensuring long-term reliability.
- Complies with RoHS directives 2011/65/EU & 2015/863 for environmental standards.
Product Description
RS PRO 209-9345 is a sealed miniature toggle switch with a through hole mount design, featuring On-None-On SPDT switching operation and right angle through hole terminals. This toggle switch supports a contact current of 5A and meets IP67 standards, providing excellent protection against dust and water ingress. The actuator is made from chrome plated brass, ensuring durability and reliable mechanical life of 30,000 cycles. The switch operates reliably within a temperature range of -40°C to 85°C, making it suitable for use in various industrial, telecommunications, and electrical control applications.
The switch is constructed with three copper alloy terminals plated with gold, enhancing electrical conductivity and corrosion resistance. The right angle mounting style facilitates easy PCB installation while maintaining secure electrical connections. The IP67 rating certifies the switch for use in wet or contaminated environments, protecting sensitive equipment from ingress damage. Compliance with RoHS environmental standards guarantees lead-free and eco-friendly manufacturing processes.
This RS PRO miniature toggle switch is ideal for use in telecommunications and networking equipment, industrial controls such as joysticks and power supplies, elevator control panels, marine control systems, and medical devices like wheelchair motor switches. It also suits instrumentation applications requiring reliable shut-off switches and is widely used in test and measurement equipment.
This toggle switch operates as a single pole double throw (SPDT) providing versatile circuit control. The switch has a rugged chrome plated brass actuator for durable operation. Designed for use in harsh environments with an IP67 rating ensuring dust and water resistance.
It supports a current rating of 5 amperes suitable for various electrical applications. The operating temperature range spans from -40°C to 85°C allowing use in wide ambient conditions. Features a right angle through hole terminal mount for PCB installation.
This switch provides a mechanical life of up to 30,000 cycles ensuring long-term reliability. Complies with RoHS directives 2011/65/EU & 2015/863 for environmental standards. Explore more RS PRO Toggle Switches and other electrical components at EnvMart for reliable industrial and commercial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch supports a contact current rating of 5A, making it suitable for various electrical applications.
It features a right angle through hole terminal mount, designed for easy PCB installation.
This switch has an IP67 rating, ensuring protection against dust and water ingress, suitable for harsh environments.
The switch operates reliably within a temperature range of -40°C to 85°C, allowing use in a wide variety of ambient conditions.
It provides a mechanical life of up to 30,000 cycles, ensuring long-term reliability in operation.
The actuator is made from chrome plated brass, which contributes to its durability and reliable operation.
It complies with RoHS directives 2011/65/EU & 2015/863, ensuring environmentally friendly manufacturing processes.
The switch operates as a single pole double throw (SPDT), providing versatile circuit control.
The dimensions of this unit are 12.7mm in length and 6.6mm in width.
It is suitable for telecommunications equipment, industrial controls, elevator control panels, marine systems, and medical devices.
It features three copper alloy terminals plated with gold, enhancing electrical conductivity and corrosion resistance.
The model number of this toggle switch is 209-9345, which identifies its specific design and specifications.
