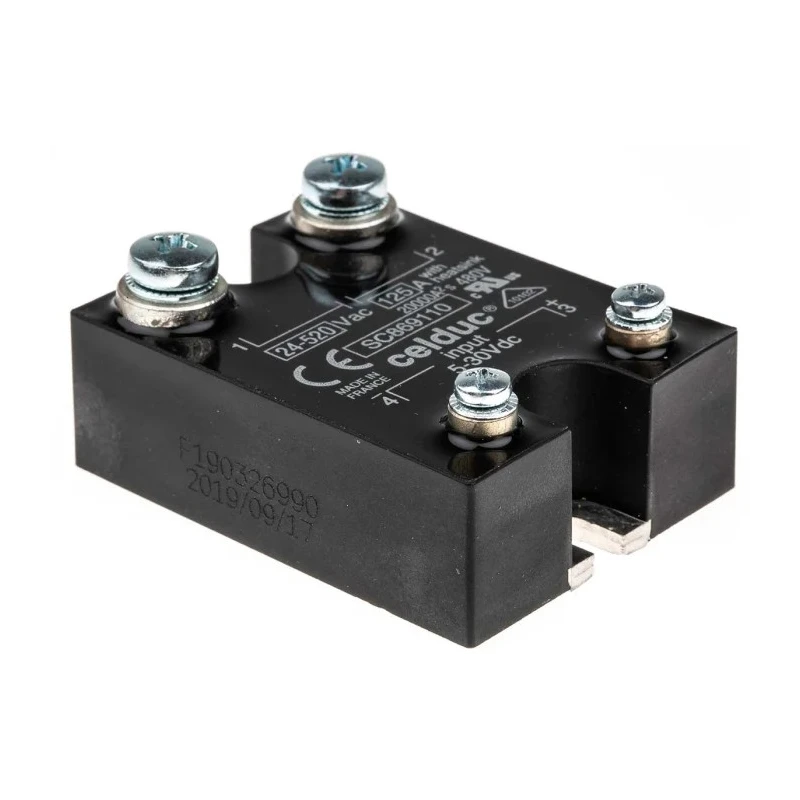

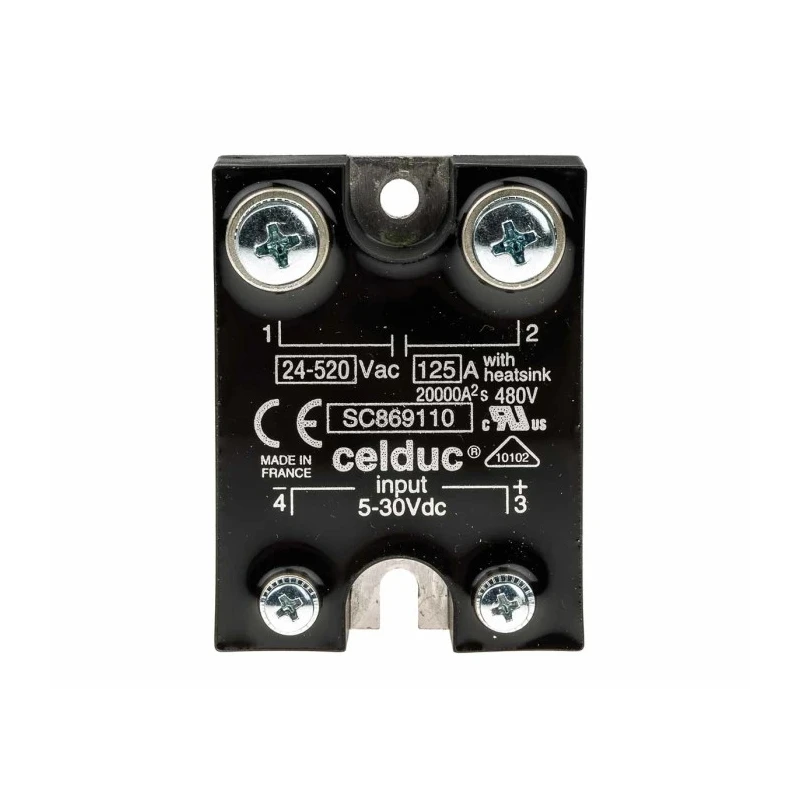

Celduc SC8 Series Solid State Relay, 125 A Load Current, 400 Vrms Load Voltage, DIN Rail Mount, 30V Control SC869110

Celduc SC869110 SC8 Series Solid State Relay is engineered to handle heavy-duty industrial and automation control tasks with a maximum load current of 125 A and a load voltage of 400 Vrms. This DIN rail mount relay integrates advanced synchronous solid state power relay technology, featuring zero voltage and zero current switching to minimize electrical noise and improve system reliability.

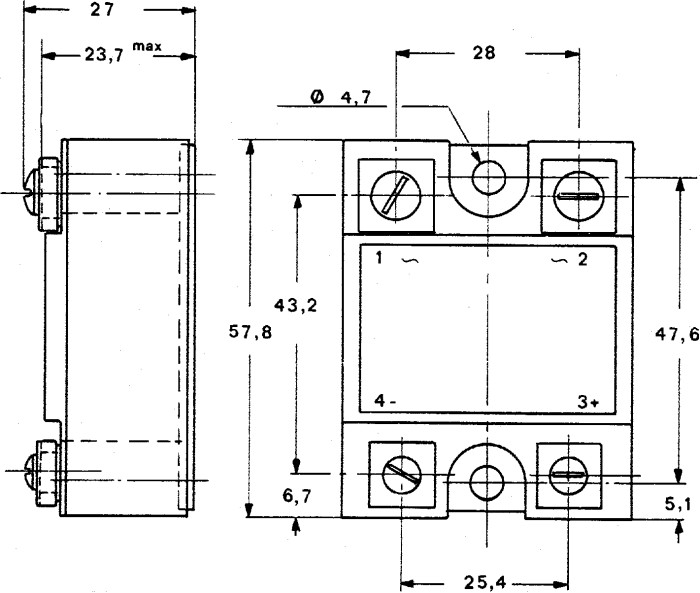

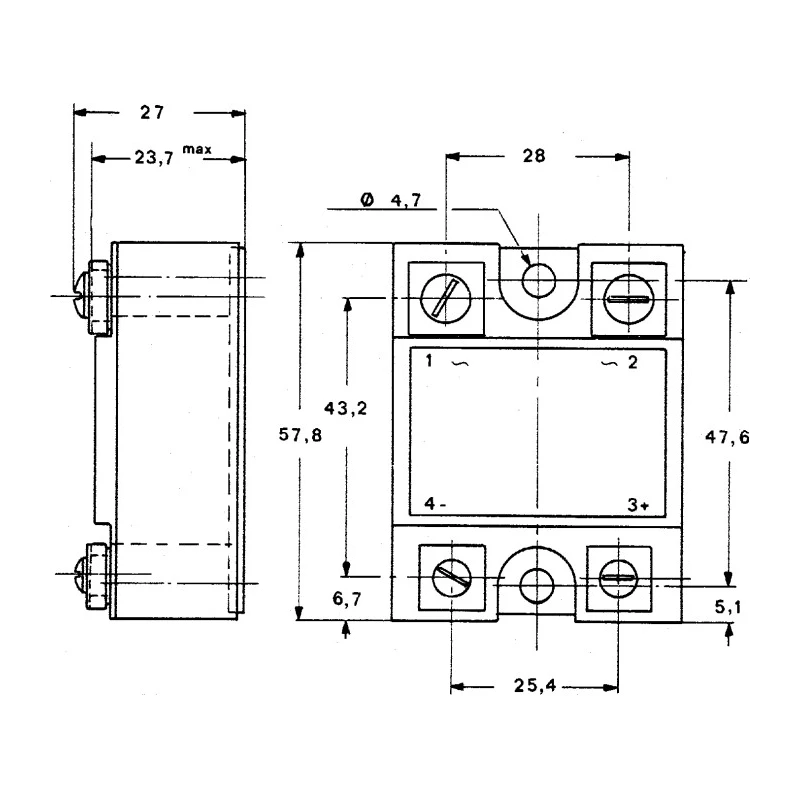

Designed with an off-state leakage current of only 3 mA and a thyristor output type, the relay ensures silent, long-life switching operations. Its compact dimensions (Length: 60 mm, Width: 35 mm, Height: 32 mm) allow easy integration into control panels with DIN rail provision.

Operating within a broad temperature range from -30°C to 80°C, this relay is well suited for demanding industrial environments. The screw terminal connection facilitates secure and stable electrical contacts. The device is rated IP20 for protection against solid objects and complies with international standards including CE and EAC, assuring high safety and quality levels.

Typical applications include power control in furnaces, extruders, presses, heating systems, motor control, solenoids, and brakes, commonly found in manufacturing, HVAC, and automation industries.

Single-phase synchronous solid state power relay designed for robust industrial applications. Compact DIN rail mount construction for standardized panel setup. Zero cross switching technology for reduced electrical interference.

Low leakage current improves overall energy efficiency. Thyristor output ensures reliable and noise-free switching. Wide operating temperature range suitable for harsh environments. Screw terminals provide convenient wiring and connection safety.

Rated IP20 for basic protection against foreign objects. Certified to CE and EAC standards for international compliance. Made in France, underscoring quality manufacturing standards.

This Celduc SC8 Series Solid State Relay is a dependable choice for industrial process control, automation systems, and electrical interfaces requiring long-term reliability and performance. For more specialized industrial relay solutions, browse the Solid State Relay category at EnvMart.
