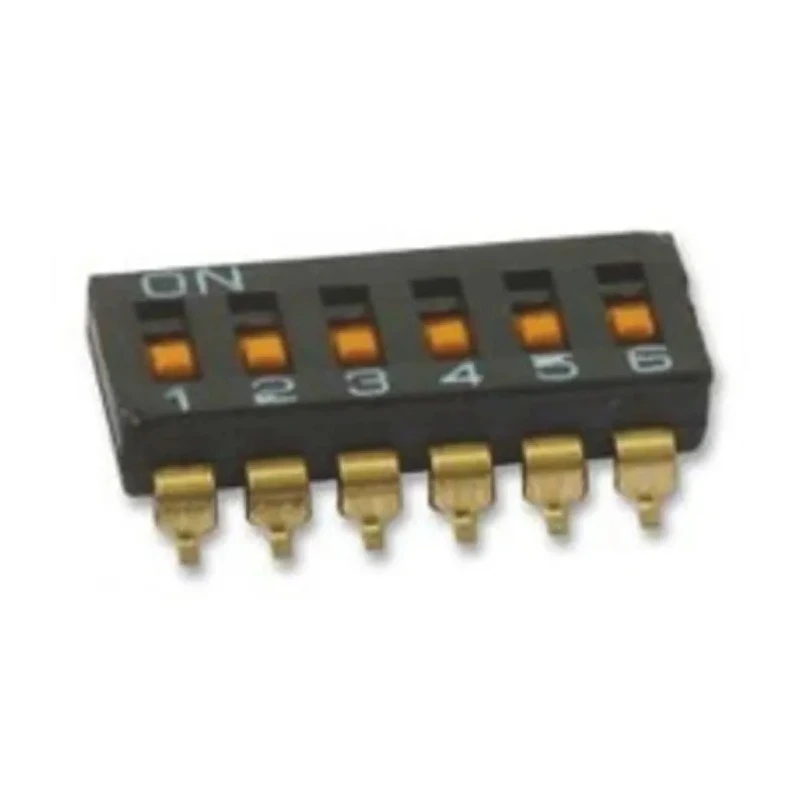

Omron Slide Rotary Coded DIP Switch Surface Mount A6S-6104-H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Model | A6S-6104-H |
| Mount Type | Surface Mount |
| Actuator Type | Slide |
| Insulation resistance | 100MΩ min at 250Vdc |
| Contact Resistance | 200mΩ max |
| Mechanical Life | 1000 operations |
| Omron Slide Rotary Coded DIP Switch Surface MountBrand | Omron |
| Omron 6 Way PCB DIP Switch 6PBrand | Omron |
Key Features
- Features gold-plated contacts for reliable electrical connections.
- Contact resistance is rated at a maximum of 200mΩ ensuring minimal signal loss.
- Insulation resistance is 100MΩ minimum at 250Vdc providing excellent insulation performance.
- Mechanical life of 1000 operations ensures durable and long-lasting functionality.
- Surface mount design allows for automatic mounting with IC insertion machines.
- Flat actuator slide type is available as sealed tape versions for ease of assembly.
- Designed according to Dual-In-Line standards for compatibility.
- Compliant with RoHS environmental standards.
Product Description
Omron A6S-6104-H Slide Rotary Coded DIP Switch Surface Mount is a compact and reliable switch designed for easy surface mounting on printed circuit boards. It utilizes a slide actuator for precise rotary coded switching, making it highly suitable for electronics, automation, and electrical control applications.
This switch features gold-plated contacts that ensure consistent and low-resistance connections, rated at a maximum contact resistance of 200mΩ. The insulation resistance is outstanding at 100MΩ minimum at 250 volts DC, guaranteeing excellent performance even in demanding electrical environments.
With a mechanical life rated at 1000 operations, this switch offers dependable operation for industrial and commercial use. The surface mount design complies with Dual-In-Line (DIL) standards and supports automatic assembly using IC insertion machines. Flat actuation provides easy manipulation and is available in sealed tape packaging for efficient volume mounting.
Manufactured under RoHS compliance, this component contributes to environmentally conscious designs, eliminating hazardous substances. Gold-plated contacts for enhanced conductivity and corrosion resistance. Contact resistance: 200mΩ maximum ensuring high signal integrity.
Insulation resistance: 100MΩ minimum at 250V DC for safety and performance. Mechanical life: 1000 operations for durability and reliability. Surface mounting designed for automated assembly processes. Slide actuator type with sealed tape packaging available.
This switch is ideal for use in industrial machines, electronics manufacturing, automation systems, and other electrical applications requiring precise and reliable rotary coded switching.
Explore more switches and components within our Electronics & Electricals category to find compatible parts for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact resistance is rated at a maximum of 200mΩ, ensuring minimal signal loss.
The insulation resistance is a minimum of 100MΩ at 250V DC, providing excellent insulation performance.
It has a mechanical life rated at 1000 operations, ensuring reliable functionality over time.
This switch is designed for surface mounting, allowing for automatic assembly with IC insertion machines.
It utilizes a slide actuator type, which allows for precise rotary coded switching.
Yes, it is compliant with RoHS environmental standards, which eliminates hazardous substances.
It is ideal for use in industrial machines, electronics manufacturing, automation systems, and other electrical applications requiring precise rotary coded switching.
The country of origin is China.
It is available in sealed tape packaging for efficient volume mounting.
Yes, it is designed according to Dual-In-Line (DIL) standards for compatibility.
The gold-plated contacts ensure reliable electrical connections and enhance conductivity and corrosion resistance.
Yes, its surface mount design supports automatic assembly using IC insertion machines.
