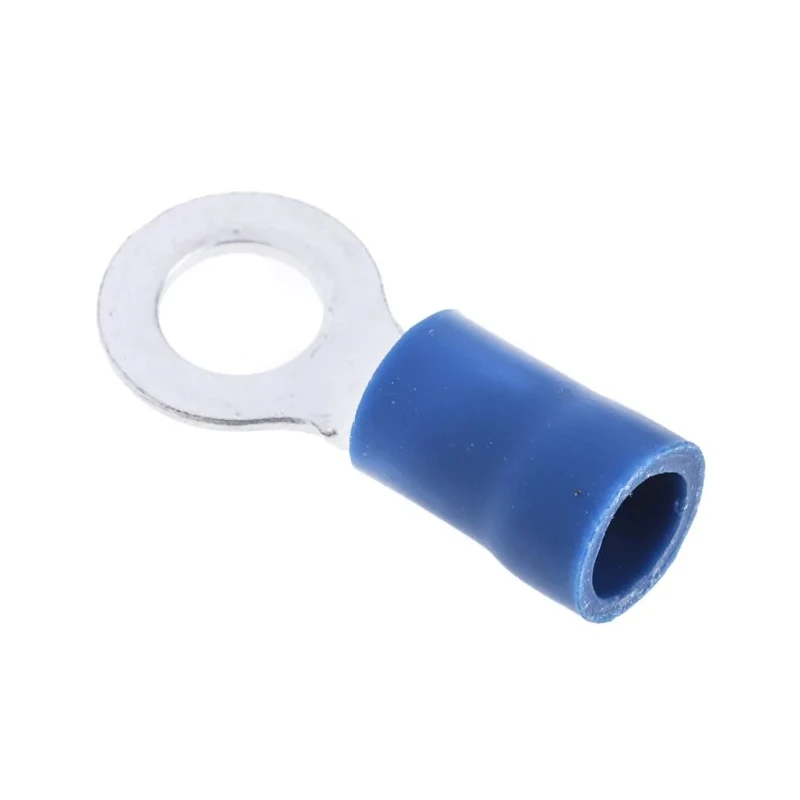

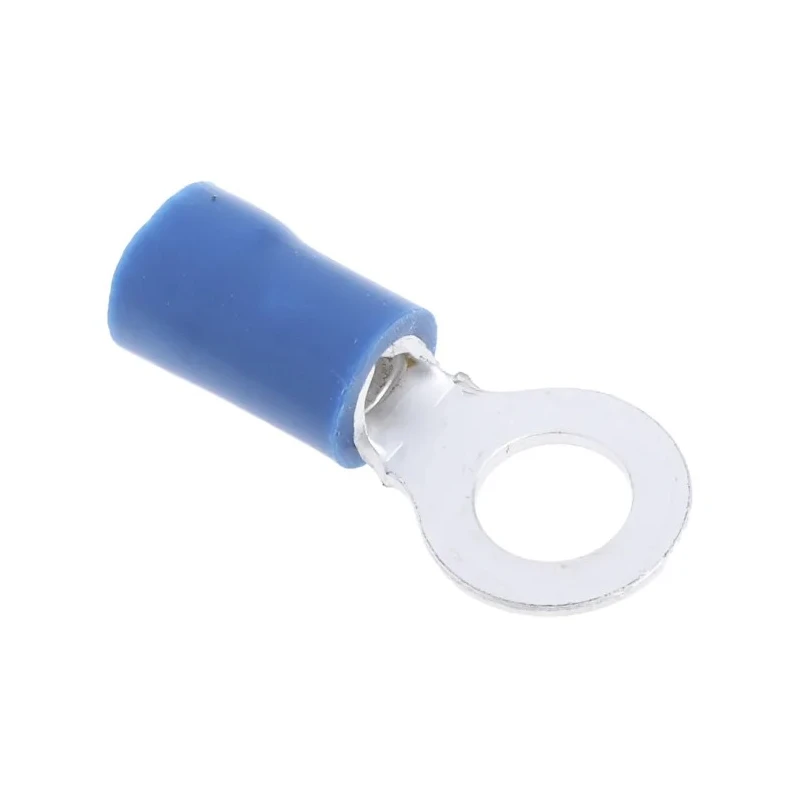

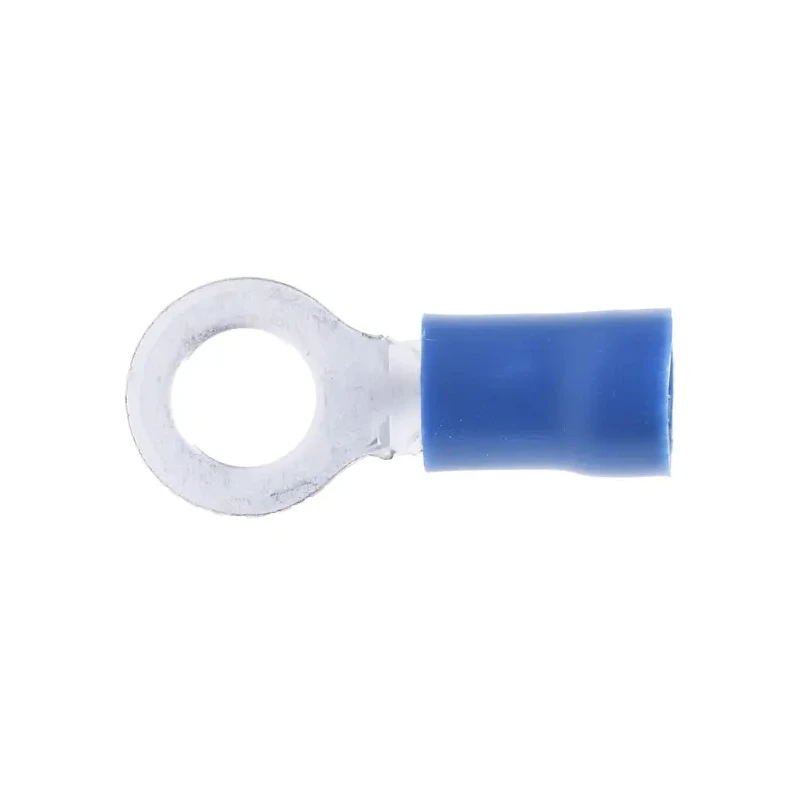

RS PRO Insulated Ring Terminal M5 Stud Size 16 AWG 14 AWG Wire Size, Blue 534-575

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Insulated Ring Terminal M5 Stud Size 16 AWG 14 AWG Wire Size, Blue 534-575

Name: RS PRO Insulated Ring Terminal M5 Stud Size 16 AWG 14 AWG Wire Size, Blue 534-575
Brand: RS PRO
SKU: 167403
Price: 0.19 USD
Availability: InStock



Category Ring Terminal Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Blue
THICKNESS	0.8mm
Model	534-575
Insulation	Insulated
Overall Length	21mm
Contact Material	Copper
Maximum Operating Temperature	75°C
Insulation Material	Polyvinyl Chloride
Contact Plating	Tin
Minimum Wire Size mm²	1.5mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	14AWG
Outer Ring Diameter	9.5mm
Inner Ring Diameter	5.3mm
Stud Size	M5
CRIMP CONNS-EYELET 2BABrand	NEUTRAL
RS PRO Insulated Ring Terminal, M6 Stud Size 16 AWG 14 AWG Wire Size, BlueBrand	RS PRO

Key Features

Constructed from highly conductive copper with tin plating for corrosion resistance.
Blue polyvinyl chloride insulation ensures electrical insulation and terminal protection.
Fits M5 stud size wires sized 16 AWG to 14 AWG (1.5mm² to 2.5mm²).
Overall length of 21 mm and thickness of 0.8 mm for reliable installation.
Suitable for wiring in industrial controls, automotive, and communication equipment.
Expanded insulation entry allows easy wire insertion during crimping.
Rated for a maximum operating temperature of 75°C.
Color-coded insulation enables quick terminal size identification.

Product Description

RS PRO 534-575 Insulated Ring Terminal is a copper-based, tin-plated electrical connector designed for high conductivity and corrosion resistance. Featuring a polyvinyl chloride vinyl insulation, it provides excellent electrical insulation and terminal protection. The blue color coding assists quick identification of terminal size.

This ring terminal suits wire sizes 16 AWG to 14 AWG (1.5 mm² to 2.5 mm²) with an overall length of 21 mm and fits M5 stud sizes. Its thickness of 0.8 mm guarantees durability and reliable crimp connections.

Ideal for industrial control systems, automotive wiring, communication equipment, power supplies, and domestic appliances, this terminal delivers efficient and secure electrical connections.

The expanded insulation entry design facilitates easy wire insertion, ensuring quick and accurate connections during crimping. The product is rated to operate safely at temperatures up to 75°C. It complies with no specific industrial standards or approvals but is trusted for consistent performance.

Constructed from copper for high conductivity and easy crimping. Tin plating offers corrosion resistance and electrical conductivity. Vinyl insulation provides electrical protection and stress relief. Color-coded blue insulation aids quick identification of wire and terminal size.

Fits M5 stud and wire sizes 16 AWG to 14 AWG. Overall length: 21mm; Thickness: 0.8mm. Suitable for industrial, automotive, communication, and domestic electrical wiring applications.

Choose RS PRO insulated Ring Terminals for reliable and efficient electrical connections in various industrial and commercial environments. Browse our extensive collection for compatible crimp tools and connectors in the Electronics & Electricals category at EnvMart.
