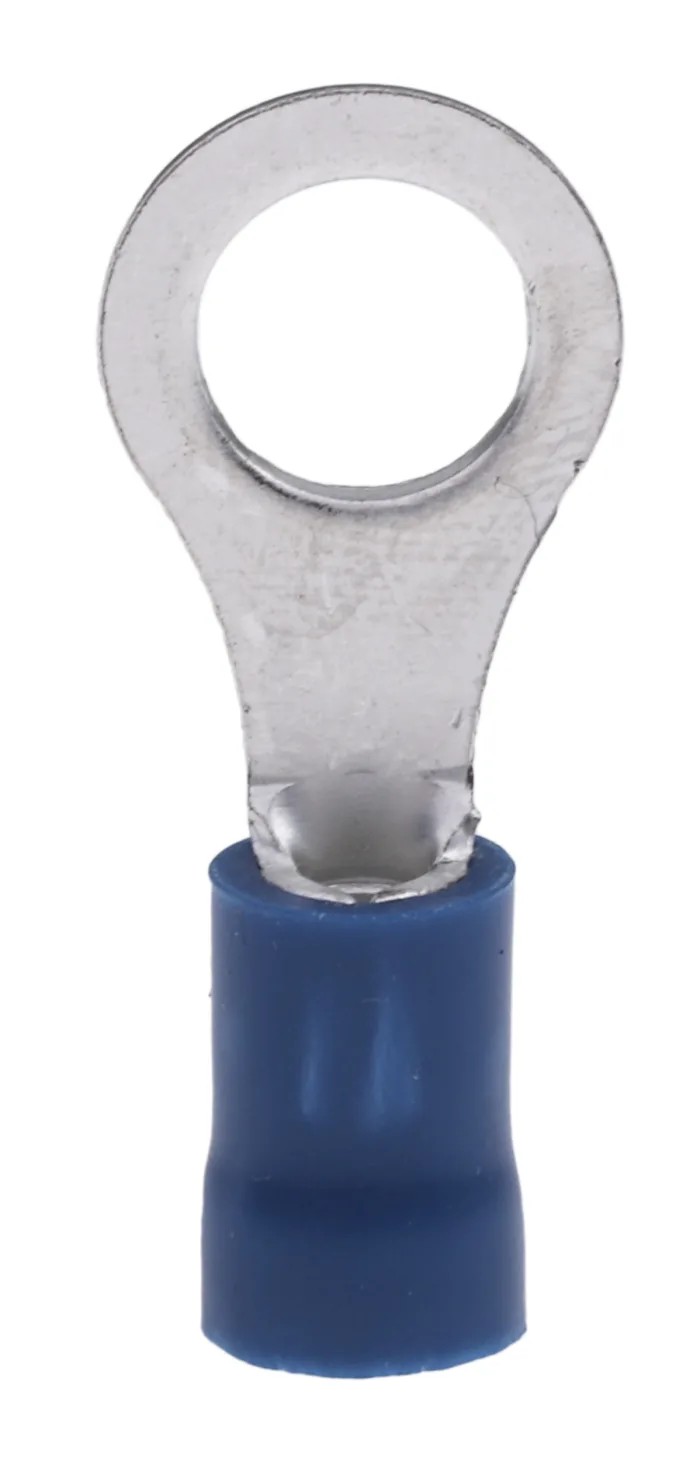

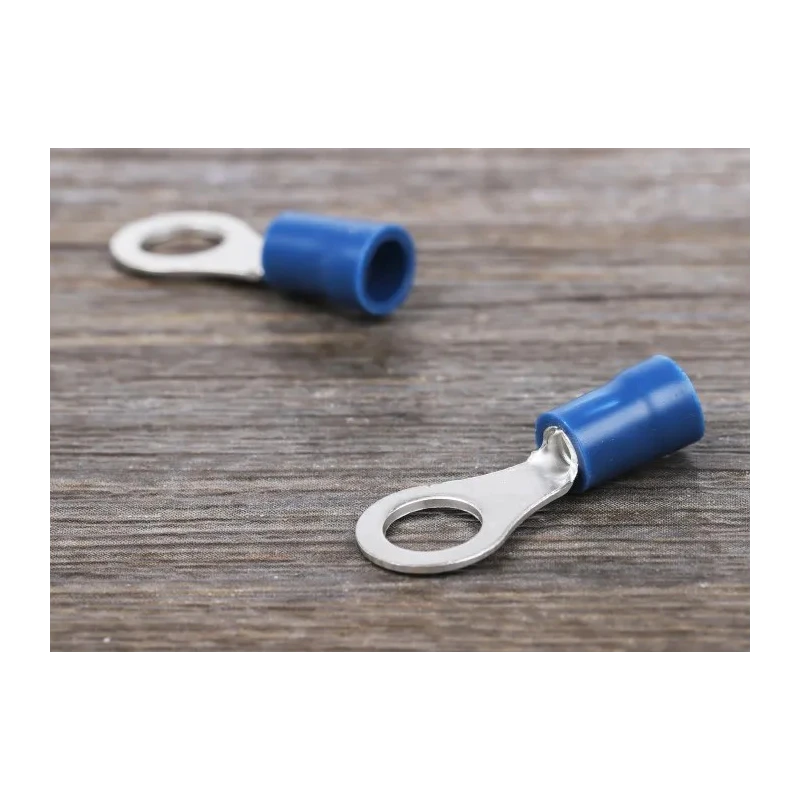

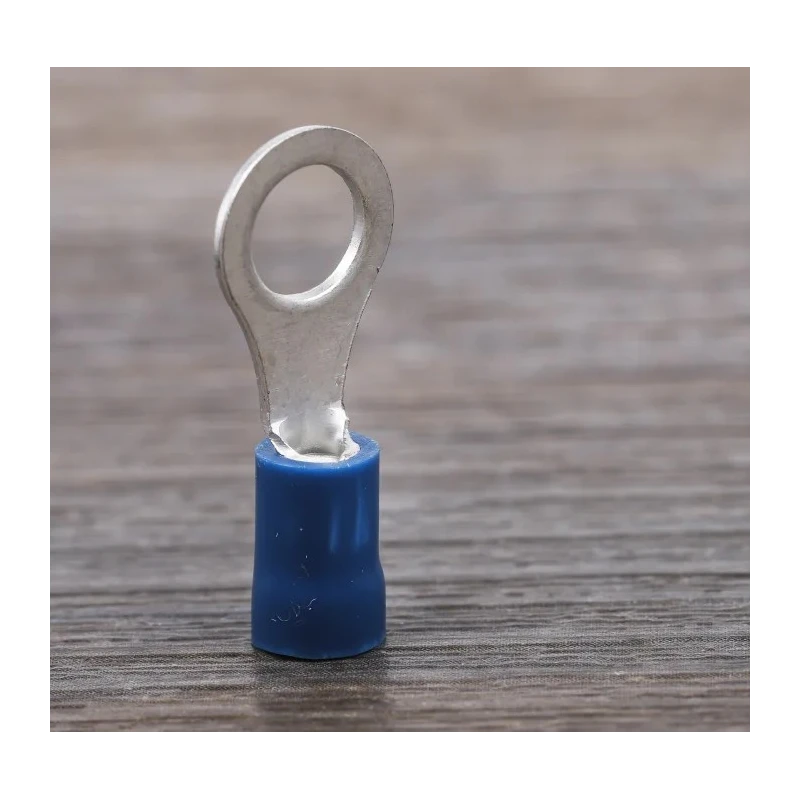

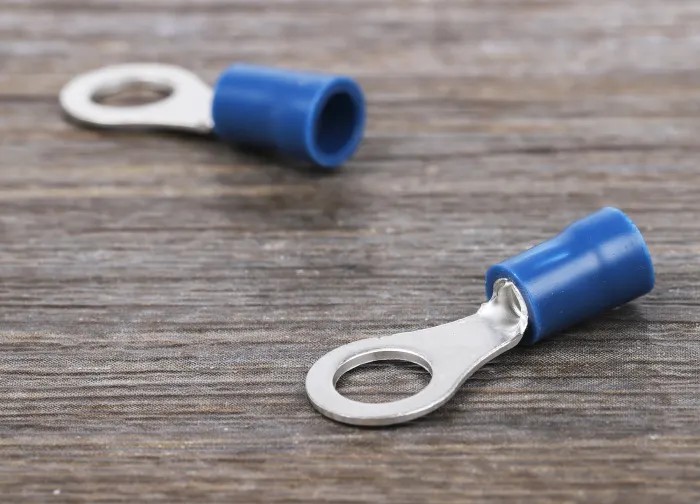

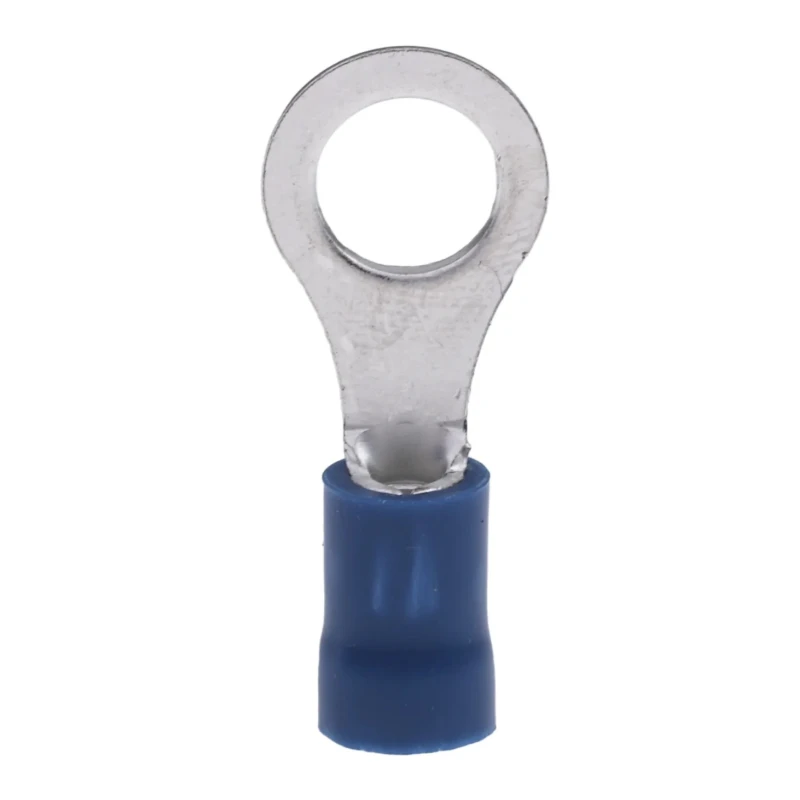

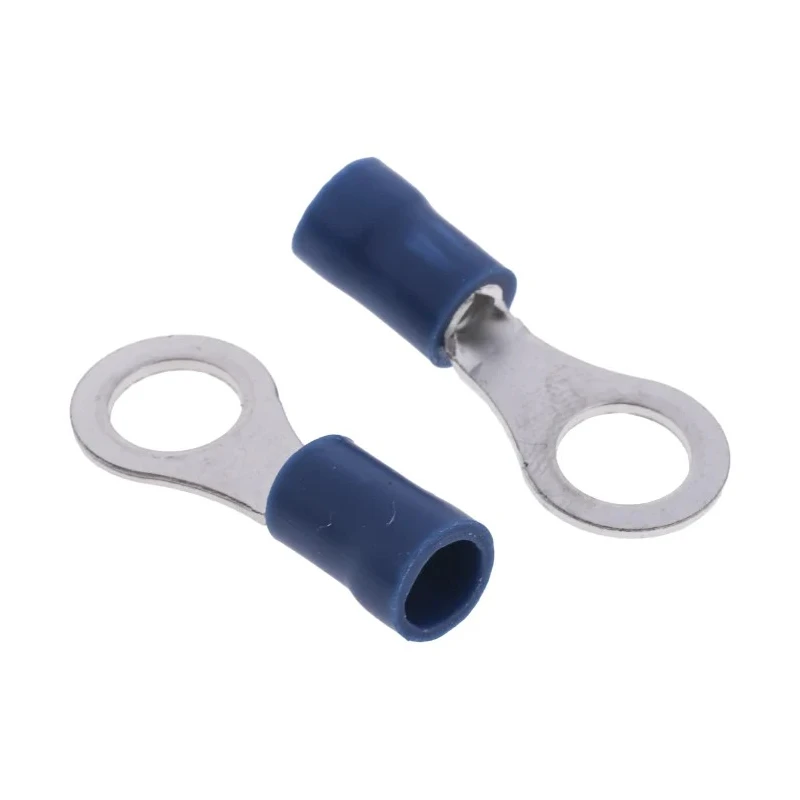

RS PRO Insulated Ring Terminal M6 Stud Size 16 AWG to 14 AWG Wire Size Blue 534-569

RS PRO 534-569 insulated ring terminal is designed for connecting electrical cables to M6 studs with wire sizes from 16 AWG to 14 AWG. The ring terminal is made from highly conductive copper and features tin plating to enhance corrosion resistance and electrical performance. The blue vinyl insulation provides electrical insulation and aids in quick size identification.

This Ring Terminal has an outer ring diameter of 10.5mm and an inner ring diameter of 6.35mm, with an overall length of 26.7mm and a thickness of 0.8mm. It operates reliably up to a temperature of 75°C and is ideal for use in industrial machines, automotive wiring, communication equipment, power supplies, and domestic appliances.

The expanded insulation entry allows for easy wire insertion and ensures a secure mechanical and electrical connection when crimped correctly. This product supports high conductivity and durable connections through its copper contact and tin plating finish.

Typical use cases include wiring in industrial control systems, automotive electrical assemblies, and communication devices where reliable wire-to-stud connections are required. Copper contact material ensures high electrical conductivity.

Tin plating provides corrosion resistance and durability. Color-coded vinyl insulation for quick terminal size identification. Expanded insulation entry for simple wire insertion and crimping. Operates up to 75°C for versatile application environments.

Suitable for industrial, automotive, communication, power supply, and domestic appliance wiring. M6 stud size compatibility with precise ring diameters. Blue insulation color corresponds to wire size range 1.5mm² to 2.5mm² (16-14 AWG).

This product is manufactured in Taiwan, Province Of China, ensuring reliable industrial-grade quality and performance. For additional RS PRO wire terminal products, explore the Electronics & Electricals category.
