RS PRO PT100 Stainless Steel Sheathed RTD Sensor 6 mm Diameter, 35 mm Length, 2 Wire, Class B Accuracy, 250 °C Max PT100

RS PRO PT100 RTD Sensor PT100 model is a high-quality temperature sensor featuring a 6 mm diameter and 35 mm long stainless steel sheath designed to accurately measure surface temperatures. With 2-wire termination and IEC 60751 Class B accuracy, it delivers precise temperature readings up to a maximum of 250 °C, making it ideal for varied industrial applications.

This RTD sensor operates on the principle of platinum resistance, where temperature changes correspond to changes in electrical resistance. The platinum element provides excellent linearity across the sensing range from -50°C to +250°C, ensuring reliable and repeatable measurements.

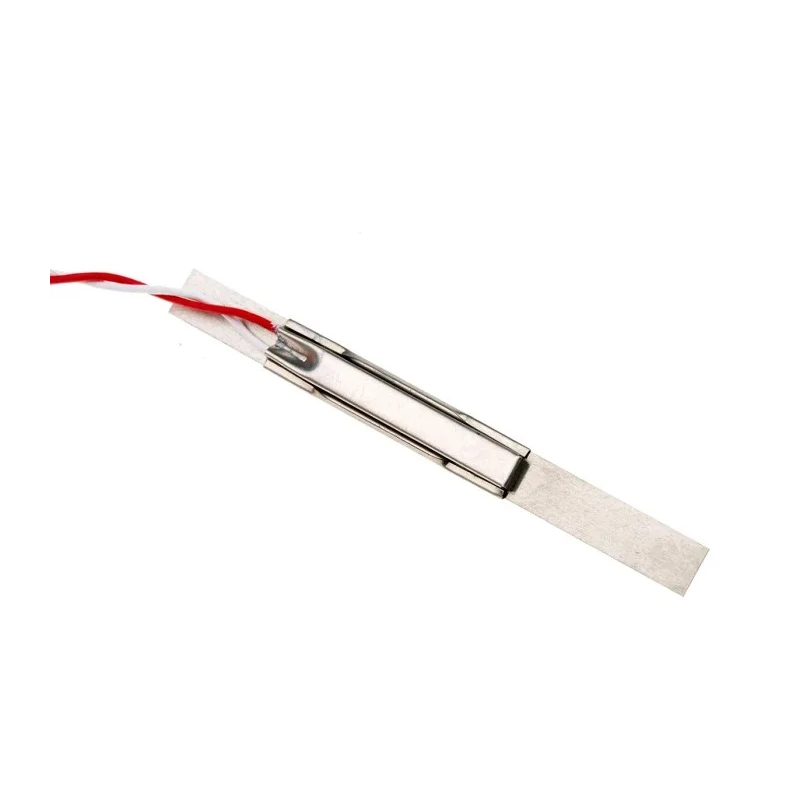

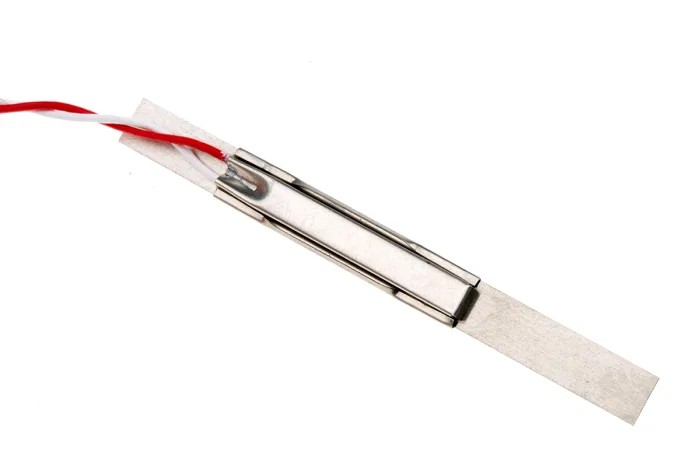

The sensor's construction includes a flat stainless steel sheath protecting the sensing element while allowing for direct contact on surfaces. The twin twisted leads are insulated with robust Teflon material, resistant to moisture, chemicals, and thermal stress, thereby extending sensor durability in harsh environments.

Applications for this RS PRO PT100 RTD sensor include air conditioning and refrigeration systems, chemical processing plants, plastics manufacturing, grills, exhaust gas monitoring, and food processing. Its compact size and stainless steel build make it well suited for laboratories and industrial setups requiring precise thermal monitoring.

The sensor features a platinum resistance element with high stability and precise output. Compliance with IEC 60751 Class B accuracy ensures tolerance within ±(0.75 + 0.005*l|t|) °C, where l|t| is the absolute temperature.

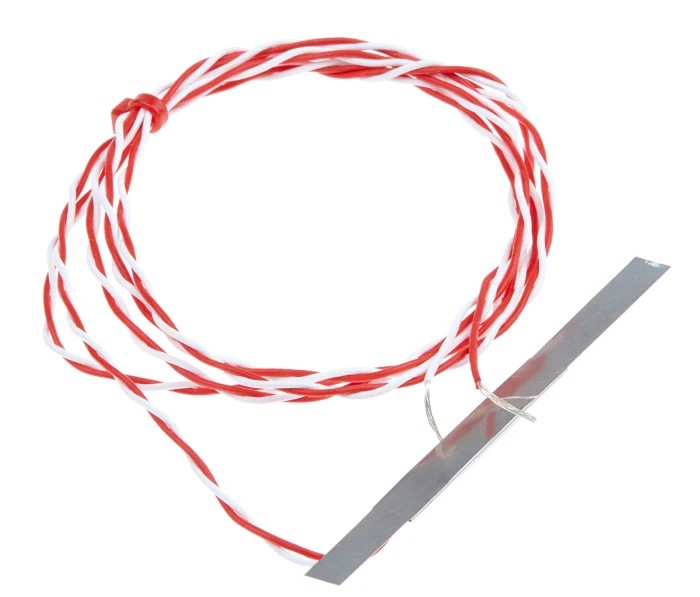

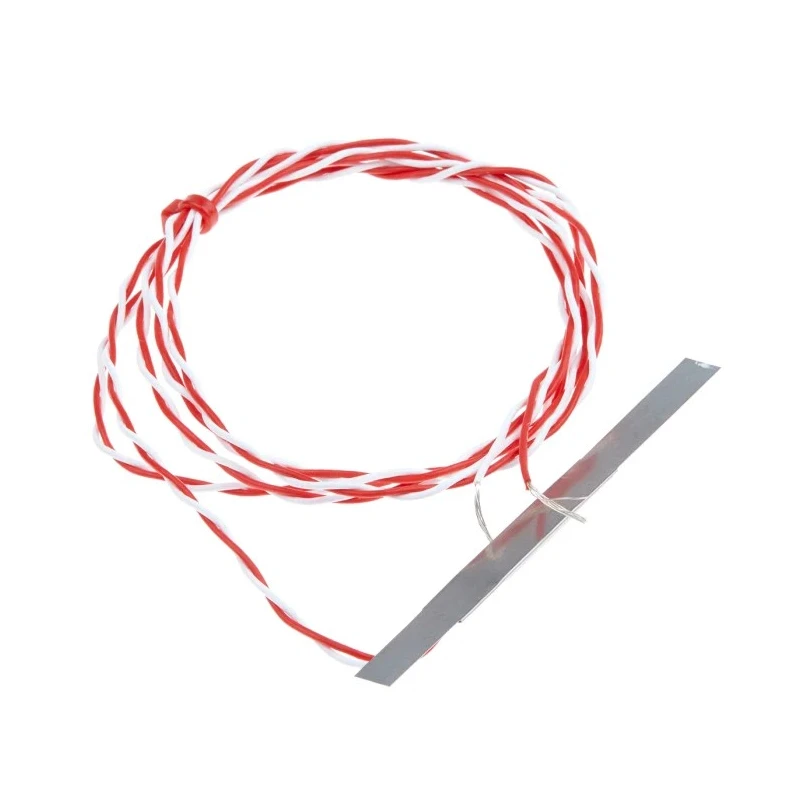

Durable stainless steel sheath provides reliable protection for the sensing element and stable measurement surface. Teflon insulated 1-meter-long cable leads offer excellent thermal and electrical insulation. Designed for surface temperature measurement from -50 °C up to 250 °C maximum.

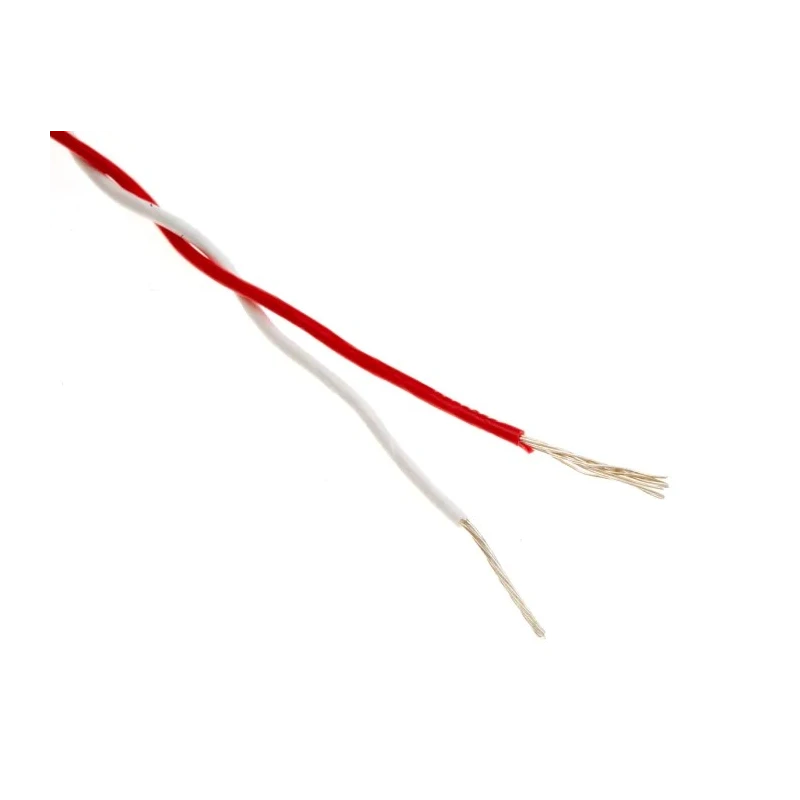

Suitable for industrial and laboratory temperature sensing across various sectors. Bare wire tail termination facilitates easy connection to measurement systems.

Set includes one RS PRO PT100 RTD Sensor with the above specifications. This sensor is shipped in new condition, made in the United Kingdom, and offers dependable performance for demanding industrial temperature monitoring applications. For additional options and related products, explore the RTD Sensors category on EnvMart.
