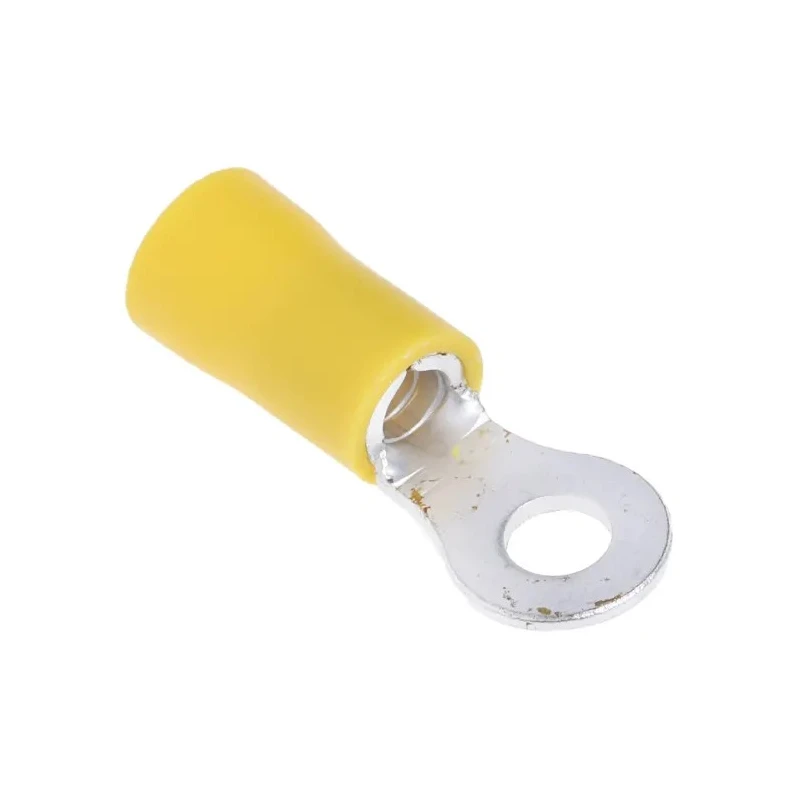

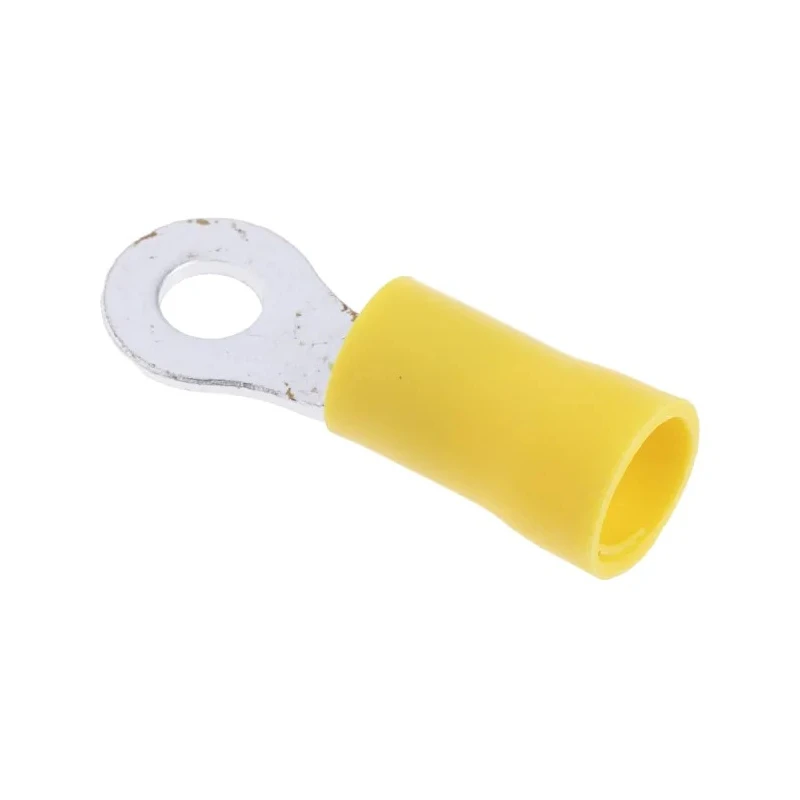

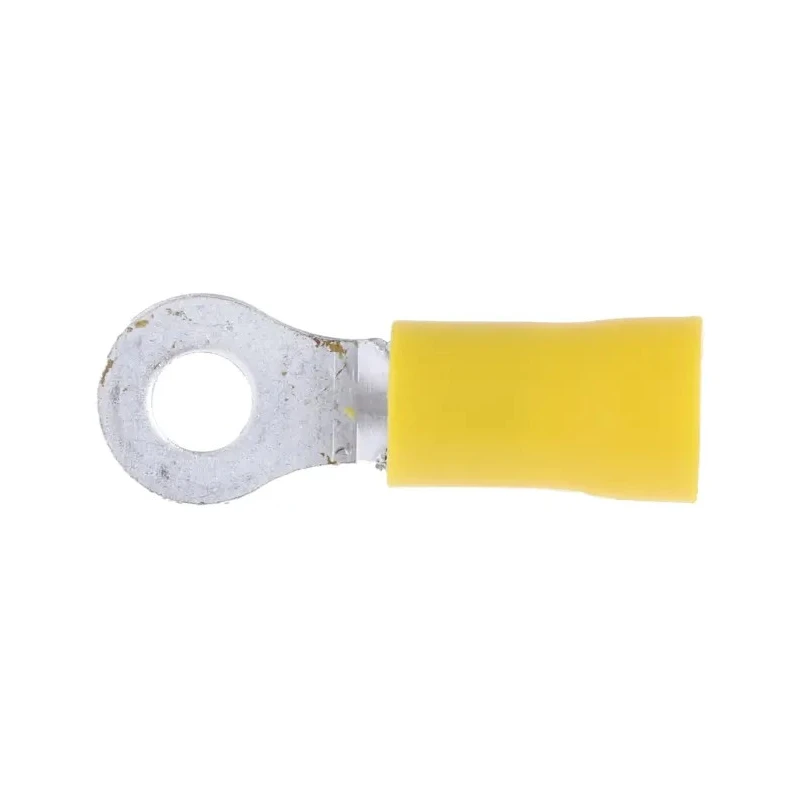

RS PRO Insulated Ring Terminal M4 Stud Size 12 AWG 10 AWG Wire Size Yellow 534-452

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Insulated Ring Terminal M4 Stud Size 12 AWG 10 AWG Wire Size Yellow 534-452

Name: RS PRO Insulated Ring Terminal M4 Stud Size 12 AWG 10 AWG Wire Size Yellow 534-452
Brand: RS PRO
SKU: 167352
Price: 0.23 USD
Availability: InStock



Category Ring Terminal Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Yellow
THICKNESS	1mm
Model	534-452
Insulation	Insulated
Overall Length	25.8mm
Contact Material	Copper
Maximum Operating Temperature	75°C
Insulation Material	Polyvinyl Chloride
Contact Plating	Tin
Minimum Wire Size mm²	2.5mm²
Maximum Wire Size mm²	6mm²
Minimum Wire Size AWG	12AWG
Maximum Wire Size AWG	10AWG
Outer Ring Diameter	9.5mm
Inner Ring Diameter	4.3mm
Stud Size	M4
YEL RING TERM 3BA/M4Brand	NEUTRAL

Key Features

The terminal features a copper body with tin plating for excellent conductivity and corrosion resistance.
Vinyl insulation provides electrical insulation and aids in quick size identification.
It supports wire sizes from 2.5mm² to 6mm² suitable for various electrical applications.
The ring terminal has a 9.5mm outer diameter and a 4.3mm inner diameter ring for secure mounting on M4 studs.
Maximum operating temperature is 75°C, ensuring reliable performance in typical industrial environments.
The 25.8mm overall length facilitates easy wire connection and crimping.
Applications include industrial control systems, automotive wiring, communication equipment, power supplies, and domestic appliances.

Product Description

RS PRO 534-452 insulated ring terminal is a high-quality electrical connector designed to securely connect wires using an M4 stud. It is suitable for wire gauge sizes ranging from 12 AWG to 10 AWG (2.5mm² to 6mm²), featuring a yellow polyvinyl chloride (PVC) insulation for electrical protection and easy identification.

The terminal is made of copper with tin plating that enhances electrical conductivity and offers excellent resistance to corrosion, ensuring durability and reliable performance. The outer ring diameter measures 9.5mm, and the inner ring diameter is 4.3mm, precisely sized for M4 studs.

The insulation thickness is 1mm, providing safe insulation to the ring terminal, with a maximum operating temperature of 75°C, which suits diverse industrial and commercial environments. The overall length of the terminal is 25.8mm, allowing for straightforward wire insertion and crimping.

These insulated ring terminals are widely used in industrial control systems, automotive electrical wiring, communication equipment setups, power supply connections, and numerous domestic appliance electrical jobs. Their color-coded insulation aids in quick size identification and proper wiring practices.

The copper body with tin plating ensures high conductivity and corrosion resistance. Vinyl insulation provides electrical insulation and protection. Roomy insulation entry for easier wire insertion. Color-coded yellow insulation for fast terminal size identification.

Reliable crimping performance with compatible crimp tools. Meets operational requirements for up to 75°C temperature environments. Ideal for automotive, industrial machines, power supplies, and communication devices.

This Ring Terminal is made in Taiwan, Province Of China, reflecting quality manufacturing standards. Suitable crimping tools include RS PRO stock number 533-279 for optimum connection quality.
