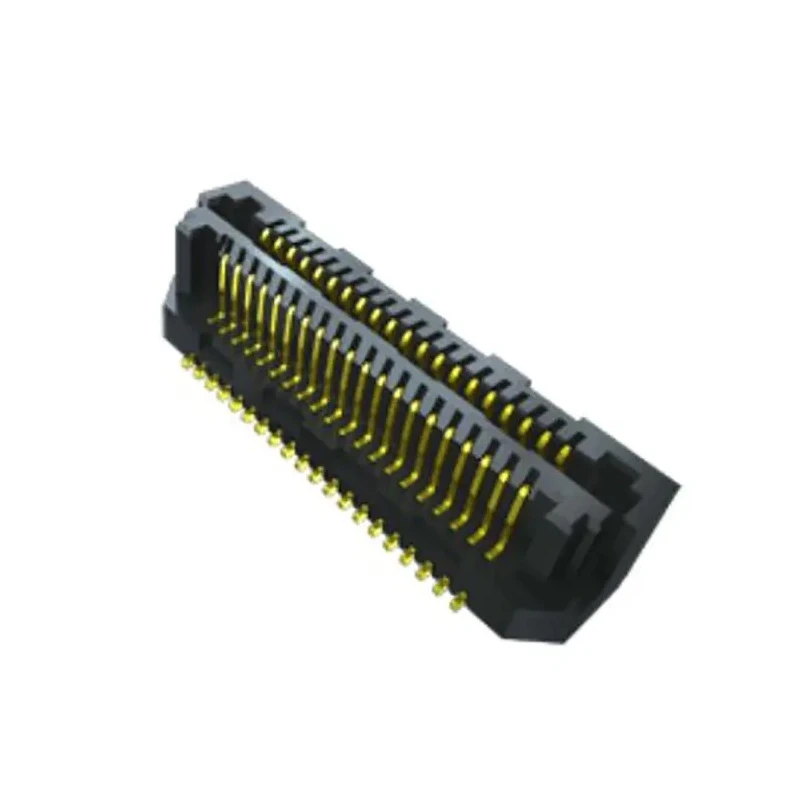

Samtec LSS Series Vertical Surface PCB Header 10 Contacts 0.635 mm Pitch 2 Row Shrouded LSS-105-01-F-DV-A-K-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Vertical |
| Current | 1.7A |
| Model | LSS-105-01-F-DV-A-K-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | LSS |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.635mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Precision 0.635 mm pitch ensures accurate and consistent connection.
- Dual-row configuration provides increased contact density.
- Shrouded housing improves connector durability and protection.
- Constructed with gold-plated phosphor bronze contacts for excellent conductivity.
- Liquid crystal polymer housing offers high temperature resistance from -55°C to 125°C.
- Designed for vertical surface mount on PCBs to optimize layout.
- Supports a current rating of up to 1.7A for dependable power transmission.
- Compatible with board-to-board connector systems for modular assembly.
Product Description
Samtec LSS-105-01-F-DV-A-K-TR is a high-quality vertical surface PCB header engineered for high-speed board-to-board connectivity applications. Featuring 10 male contacts spaced at a precise 0.635 mm pitch across two rows, this shrouded connector is built for durability and reliable electrical performance.
The housing is made from black liquid crystal polymer, known for its mechanical strength and excellent thermal stability, operating reliably in a temperature range from -55°C to 125°C. Phosphor bronze contacts are gold-plated to ensure low electrical resistance and long-term signal integrity.
Its surface mount design allows for efficient PCB layout, and the shrouded feature provides extra protection against physical damage and electrical shorts. Rated for currents up to 1.7A, it is suitable for a variety of electronic component assemblies where compact and robust connections are needed.
This connector supports up to 100 I/Os in complex board configurations, reducing inventory and increasing modularity in designs. Precision 0.635 mm pitch for tight and reliable contact spacing. 10 male contacts in a dual-row vertical layout.
Robust liquid crystal polymer housing with excellent thermal properties. Gold-plated phosphor bronze contacts for superior electrical conductivity. Shrouded design enhances connector durability and protects against misalignment.
Surface mount type for easy PCB integration. Rated for 1.7 Amperes current carrying capacity. RoHS compliant, meeting environmental and safety standards.
This PCB header is ideal for use in electronics manufacturing, assembly of printed circuit boards, telecommunications, computing, and other industrial electronics applications requiring compact, reliable, and high-performance interconnects.
Explore more electronic connectors and components in the Electronics & Electricals category at EnvMart to find complementary parts and accessories for your projects.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this PCB header are spaced at a precise pitch of 0.635 mm.
This model features a total of 10 male contacts arranged in a dual-row configuration.
It is rated for a maximum current of 1.7A, suitable for dependable power transmission.
The housing is made from liquid crystal polymer, while the contacts are constructed from phosphor bronze and gold-plated for excellent conductivity.
This connector operates reliably within a temperature range of -55°C to 125°C.
Yes, this model is RoHS compliant, meeting environmental and safety standards.
It utilizes a surface mount type design for easy integration onto PCBs.
It is compatible with board-to-board connector systems, allowing for modular assembly.
The specific dimensions are not provided, but it is designed to optimize layout on printed circuit boards.
The contacts in this PCB header are oriented vertically.
The shrouded design enhances connector durability and protects against misalignment and physical damage.
This PCB header is manufactured in India.
