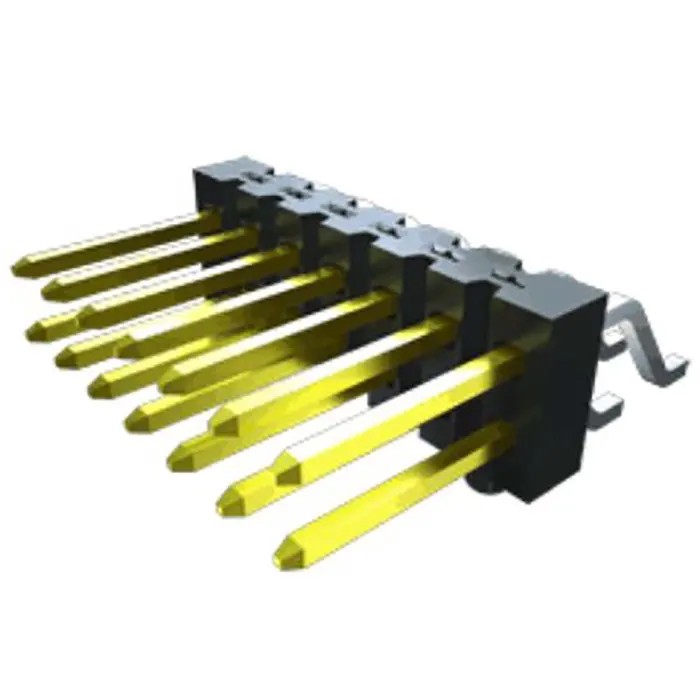

Samtec TSM Series Vertical Surface Pin Header 9 Contacts 2.54 mm Pitch 1 Row Unshrouded TSM-109-01-T-SV-P
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Vertical |
| Model | TSM-109-01-T-SV-P |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold or Tin |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
Key Features
- The header features a single row configuration suitable for board-to-board connections.
- Constructed with a liquid crystal polymer housing for high durability.
- Contacts are made of phosphor bronze with gold or tin plating for optimal conductivity.
- Designed for operation across a wide temperature range from -55°C to 125°C.
- Rated for a maximum voltage of 475 V AC ensuring safety and robustness.
- Unshrouded design facilitates easy access to pins during assembly.
- Mount type is surface mount technology (SMT) providing secure attachment to PCBs.
- Ideal for industrial electronics, telecommunications, and power supply applications.
Product Description
Samtec TSM-109-01-T-SV-P is a high-quality vertical surface mount pin header designed for secure board-to-board connections. This pin header includes 9 male contacts arranged in a single row with a 2.54 mm pitch, making it compatible with standard PCB layouts.
The housing is made from liquid crystal polymer, offering excellent thermal and mechanical stability for demanding industrial environments. The phosphor bronze contacts plated with gold or tin ensure superior conductivity and corrosion resistance.
Engineered to operate reliably within a temperature range from -55°C up to 125°C, this header supports a maximum AC voltage rating of 475 V, ensuring safe electrical performance in power and signal transfer applications.
The unshrouded design provides easy solder termination and accessibility during production assembly. Mounting via surface mount technology makes it suitable for modern automated PCB assembly lines.
Commonly used in electronic manufacturing, telecommunications equipment, and power distribution systems, this header brings dependable performance in harsh industrial settings. The header features a single row with 9 male solder termination pins.
Liquid crystal polymer housing provides high durability and heat resistance. Phosphor bronze contacts with gold or tin plating ensure electrical performance and corrosion resistance. Wide operating temperature range from -55°C to 125°C supports diverse industrial environments.
Voltage rating of 475 V AC supports a range of electronic applications. Unshrouded pin design allows ease of access and soldering. Surface mount technology ensures reliable PCB attachment and easy assembly.
This product is ideal for industrial electronics, telecommunication systems, and power connectors in various manufacturing and electronic component assembly applications. The robust design and quality materials ensure long service life and consistent electrical performance under demanding conditions.
Explore more industrial-grade PCB Pin Header components on EnvMart for a complete and reliable electronics assembly solution.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 2.54 mm, which is standard for many PCB layouts.
This model features 9 male contacts arranged in a single row.
The maximum voltage rating for the TSM-109-01-T-SV-P is 475 V AC.
The contacts are made of phosphor bronze and are plated with either gold or tin for optimal conductivity.
It operates reliably within a temperature range from -55°C to 125°C.
This pin header utilizes surface mount technology (SMT) for secure attachment to PCBs.
The housing is constructed from liquid crystal polymer, providing high durability and thermal stability.
This model features an unshrouded design, allowing easy access to the pins during assembly.
The termination type for this model is solder, suitable for secure connections on PCBs.
It is commonly used in industrial electronics, telecommunications, and power supply applications.
The contacts are oriented vertically in this pin header model.
The country of origin for this pin header is India.
