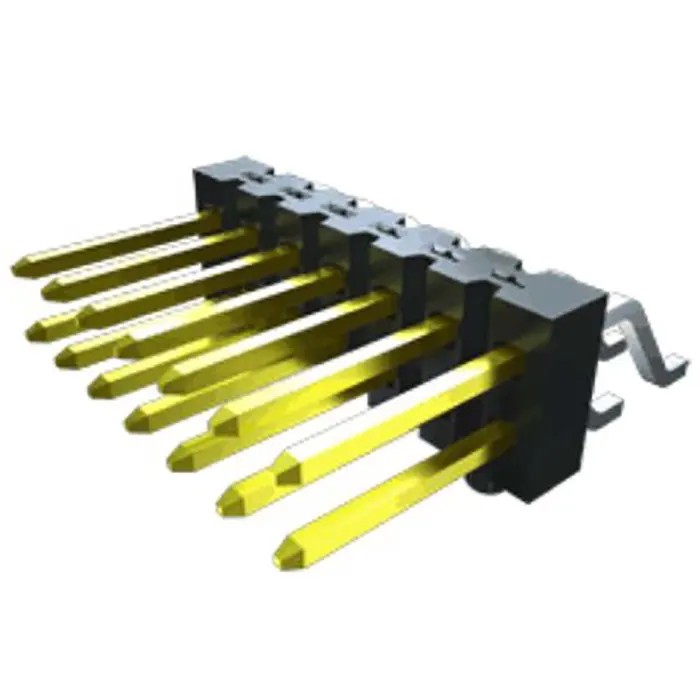

Samtec TSM Series Vertical Surface Pin Header 10 Contacts 2.54 mm Pitch 2 Row Unshrouded TSM-105-01-LM-DV-P-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 5.4A |
| Model | TSM-105-01-LM-DV-P-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
Key Features
- The header features a vertical orientation suitable for surface mount technology.
- Constructed with a liquid crystal polymer housing for durability and thermal stability.
- Phosphor bronze contacts plated with 0.25 μm gold ensure excellent conductivity and corrosion resistance.
- Supports a maximum current of 5.4 amperes and voltage rating of 475 volts AC.
- Operates reliably within a temperature range of -55°C to +125°C.
- Includes unshrouded male contact pins facilitating easy solder termination.
- Designed with 2.54 mm row pitch for standard spacing compatibility.
Product Description
Samtec TSM-105-01-LM-DV-P-TR vertical surface pin header is a compact, high-performance PCB connector featuring 10 male contacts arranged in 2 rows with a 2.54 mm pitch. This unshrouded pin header is built with a black liquid crystal polymer housing providing mechanical strength and excellent temperature resistance in harsh industrial and electronic environments.
The phosphor bronze contacts with 0.25 μm gold plating on the post and matte tin on the tail ensure superior electrical conductivity and corrosion protection. The header supports a current rating of 5.4 A and a voltage rating of 475 V AC, making it suitable for various electronic and industrial applications requiring reliable board-to-board connectivity.
This component is ideal for use in electronics manufacturing, telecommunications equipment, instrumentation, and control panel assemblies. It features a vertical orientation and surface mount type, ensuring compatibility with standard PCB designs. The operating temperature ranges from -55°C to 125°C, addressing demanding environmental conditions.
The unshrouded design facilitates straightforward solder termination and inspection. This Samtec TSM series header enables easy integration into electronic assemblies requiring secure, high-quality connections.
The header features a vertical orientation suitable for surface mount technology. Constructed with a liquid crystal polymer housing for durability and thermal stability. Phosphor bronze contacts plated with 0.25 μm gold ensure excellent conductivity and corrosion resistance.
Supports a maximum current of 5.4 amperes and voltage rating of 475 volts AC. Operates reliably within a temperature range of -55°C to +125°C. Includes unshrouded male contact pins facilitating easy solder termination. Designed with 2.54 mm row pitch for standard spacing compatibility.
Recommended for industrial, electronic manufacturing, laboratory instrumentation, telecommunications, and commercial electronics applications. Explore more PCB Headers and connectors in the Electronics Components category at EnvMart for comprehensive connectivity solutions.
