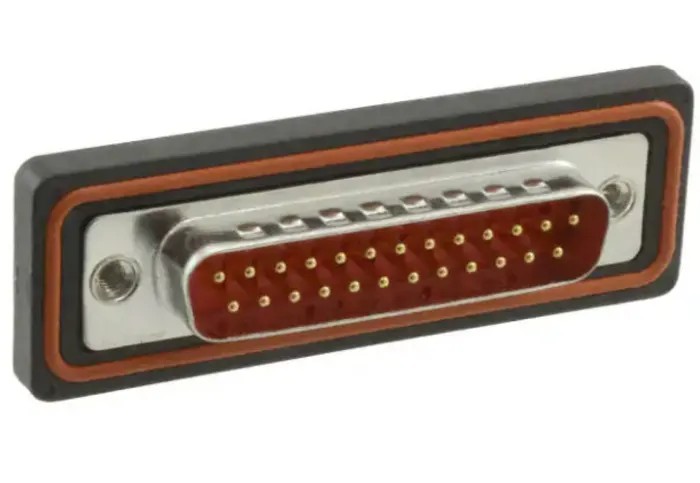

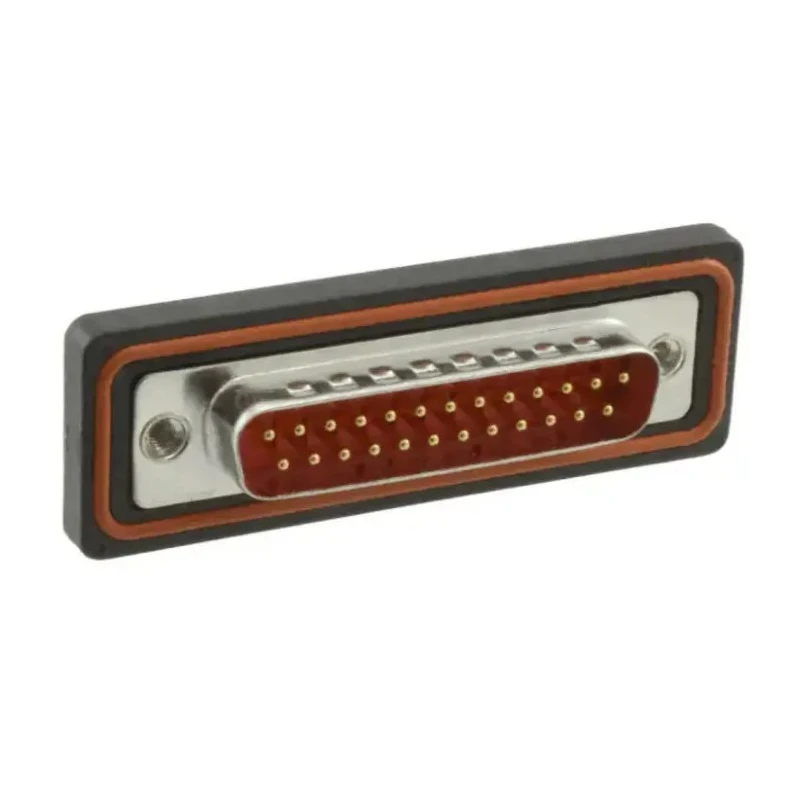

FCT from Molex 25 Way Straight Panel Mount D-Sub Connector 2.84 mm Pitch Brass Housing Male FWDR25PA / 1727040047

FCT from Molex FWDR25PA / 1727040047 is a 25 Way Straight Panel Mount D-Sub Connector that features a brass housing and copper alloy contacts plated with gold over nickel to ensure durability and excellent electrical performance. The connector has a standard pitch of 2.84 mm and is designed for male contacts, supporting a current of 7.5A and voltage of up to 1000V. This connector is suitable for a broad range of industrial, electronic, and electrical applications where reliable signal and power transmission are critical.

Its panel mount type with straight orientation facilitates easy assembly and secure connections. The mounting hardware includes 4 to 40 screw locks, providing mechanical stability and preventing accidental disconnections during operation. Rated for an operating temperature range between -25°C and 70°C, this connector performs reliably in both cold and warm environments.

The housing made of brass combined with PBT resin material enhances mechanical strength and environmental resistance. This D-Sub connector complies with UL94-0 flammability rating and RoHS directives, ensuring it meets established safety and environmental standards.

Commonly used in applications involving FCT coaxial, high power, high voltage, and pneumatic contacts, it offers robustness and compatibility in complex system integrations. Its IP67 rating offers water and dust resistance to protect connections in challenging environments.

Connector designed with 25 contacts for versatile connectivity. Panel mount type with straight orientation suits standard installations. Houses male contacts plated with gold over nickel for excellent conductivity. Supports current rating of 7.5A with voltage tolerance up to 1000V.

Features 4 to 40 screw lock mounting hardware for secure fastening. Operating temperature ranges from -25°C to 70°C, suitable for varied environments. Constructed from brass housing with copper alloy contacts for durability.

Complies with UL94-0 and RoHS standards ensuring safety and environmental compliance. Series 172704 compatible with FCT coaxial and pneumatic contacts.

EnvMart offers this high-quality D-Sub Connector for industrial, electronic, and manufacturing applications where dependable connectors are essential. Browse our extensive collection to find compatible and complementary components.
