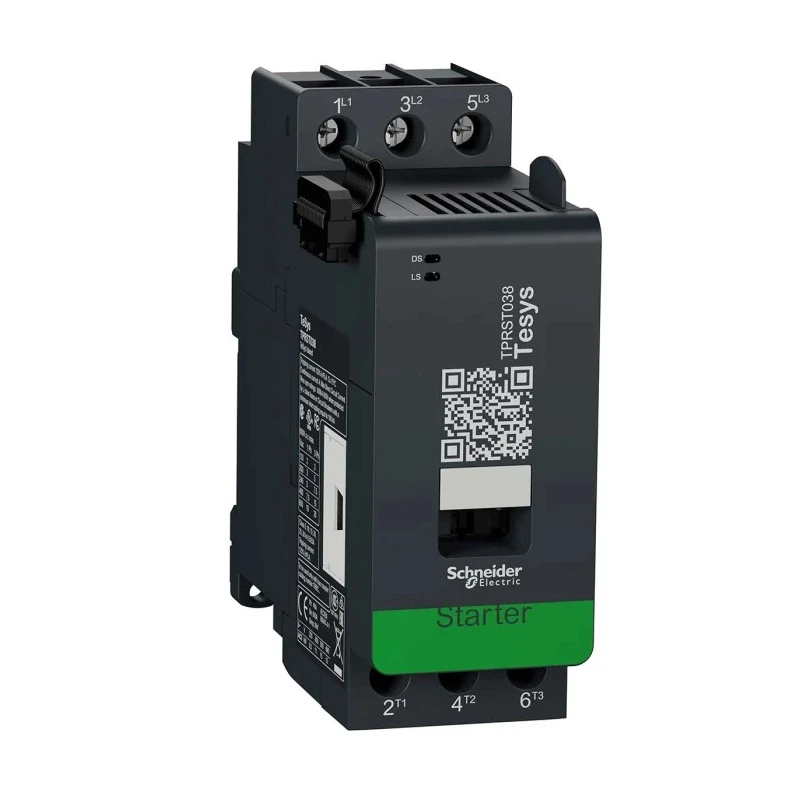

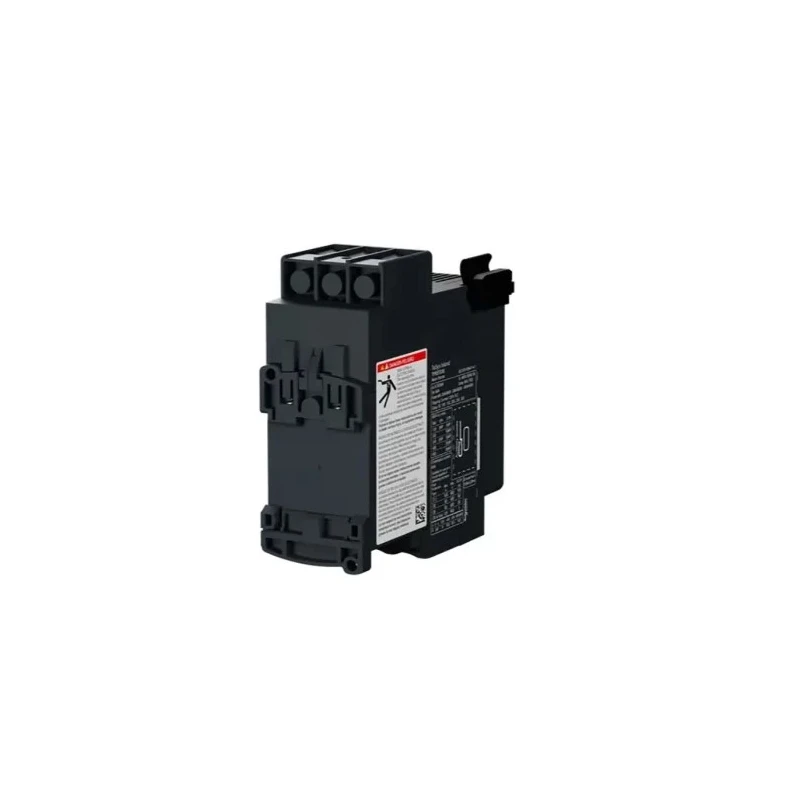

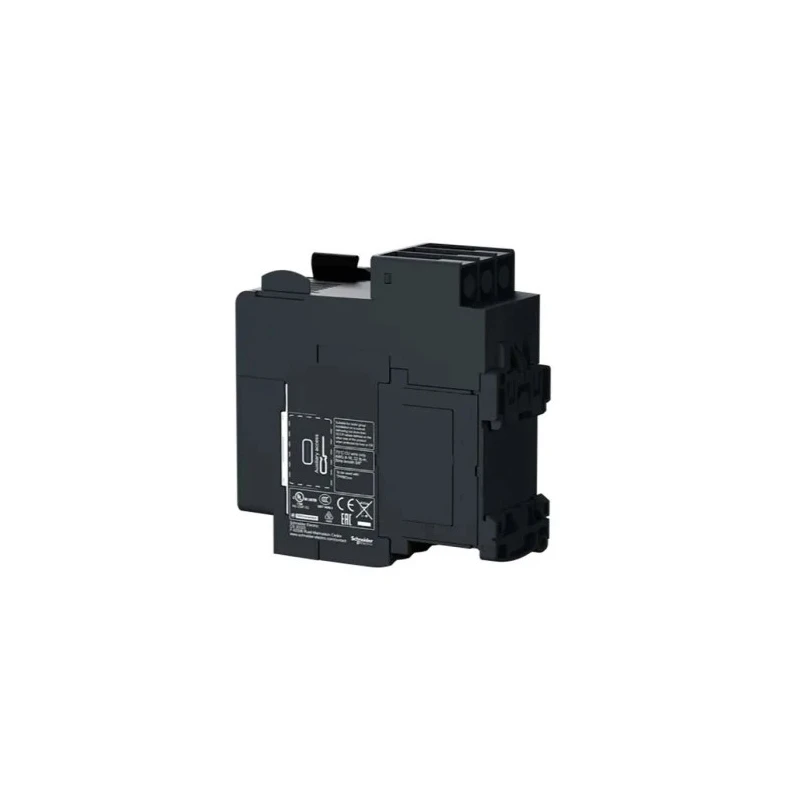

Schneider Electric TeSyS Island Direct Online (DOL) Starter, 690V, 18.5 kW, 3 Phase, 40A, IP20, Model TPRST038
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Model | TPRST038 |
| IP Rating | IP20 |
| Mount Type | Horizontal, Vertical |
| Overall Length | 121mm |
| Current Rating | 40A |
| Series | TeSyS Island |
| Overall Width | 45mm |
| Power Rating | 18.5kW |
| Sub Type | DOL |
| Interfaces | EtherNet/IP, Modbus TCP, PROFINET or PROFIBUS |
| Number of Phases | 3 |
| Maximum Voltage | 690V |
| Number of Poles | 3 |
| Overall Depth | 115mm |
Key Features
- Compatible with Schneider Electric TeSyS Island automation systems.
- Supports AC-1, AC-2, AC-3, and AC-4 utilization categories.
- Provides upstream voltage detection and electrical line/load protection.
- Operates via bus coupler connection for reliable motor starting.
- Constructed with 3 poles and supports horizontal or vertical mounting.
- Includes power and energy monitoring when used with TPRVM voltage module.
- Compact dimensions with 121 mm length, 45 mm width, and 115 mm depth.
- Meets international standards including CSA, UL, EAC, EN/IEC, and CCC approvals.
Product Description
Schneider Electric TPRST038 Direct Online (DOL) Starter is designed as part of the TeSyS Island motor starter range, built for industrial and commercial motor control applications. Rated for 18.5 kW and operating at 690V for 3 phase motors, this starter supports a current rating of 40A and has an IP20 protection level suitable for controlled environments.
This starter enables direct connection to an automation controller via the compatible TPRBC bus coupler and is operational only when connected to it. It ensures safe motor starting with features such as upstream voltage presence detection, electric line and load protection, and supports power and energy monitoring functionalities when combined with the TPRVM voltage interface module.
The device includes 3 poles and allows flexible installation with horizontal or vertical mount options, making it suitable for various motor control panel configurations.
Compact and robust, the starter measures 121 mm in length, 45 mm in width, and 115 mm in depth, making efficient use of control cabinet space. It complies with multiple international safety and performance standards including CSA C22.2 No. 60947-4-1, EAC, EN/IEC 60947-1, UL 60947-4-1, and CCC certifications, ensuring dependable operation in diverse settings.
Manufactured in France, this motor starter embodies Schneider Electric's stringent quality and reliability processes. It is widely applicable for industrial automation, manufacturing plants, HVAC systems, water treatment, and other commercial motor control applications requiring high-performance and smart motor management.
Compatible with TeSyS Island automation platform. Supports multiple motor starter utilization categories. Includes electrical protection and monitoring features. Flexible mounting options suit varied panel designs. Robust construction with compact dimensions.
Conforms to international safety and performance standards. Manufactured in France under certified quality processes. Ideal for industrial, commercial, and automation applications. Explore the wide range of Schneider Electric Motor Starters on EnvMart for efficient and reliable industrial motor control solutions.
