TDK Standard Metal Oxide Varistor 4.95nF Capacitance 10A Clamping 2970V 47V B72214S0300K101

Free Delivery in India | Lowest Global Shipping Charges

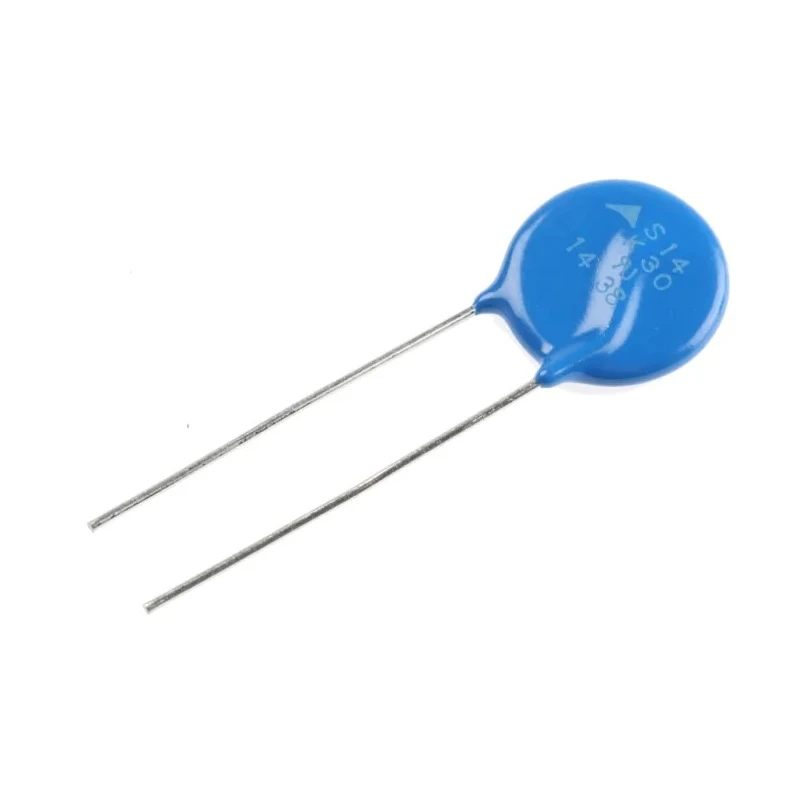

TDK Standard Metal Oxide Varistor 4.95nF Capacitance 10A Clamping 2970V 47V B72214S0300K101



Category Electronic Components Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	15.5mm
Brand	TDK
Material	Metal
THICKNESS	4.4mm
Length	43.5mm
Model	B72214S0300K101
Depth	4.4mm
Mount Type	Lead
Series	Standard
Energy Rating	1J
Maximum Operating Temperature	85°C
Capacitance	4.95nF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	1465V dc
Standards/Approvals	CSA, 07, CQC S05, UL, VDE, S20, S14, S10, IEC
Pin Count	2
Lead Pitch	7.5mm
Maximum AC Voltage	1100V ac
Clamping Voltage VC	2970V
Clamping Current	10A
Maximum Surge Current	1kA
Varistor Voltage	47 V

Key Features

High clamping voltage of 2970 volts ensures robust voltage spike protection.
Varistor voltage rated at 47 volts for precise electrical response.
Standard radial epoxy-coated metal oxide construction with tinned copper leads.
Operates in temperature range from -40°C to 85°C for versatile applications.
Compact dimensions including 15.5mm diameter and 43.5mm length allow for easy integration.
Designed for surge currents up to 1kA and energy rating of 1 joule.
Suitable for lead mount with 7.5mm lead pitch for PCB assembly.
Manufactured according to CSA, UL, VDE, IEC approvals.

Product Description

TDK B72214S0300K101 is a Standard Metal Oxide Varistor engineered for efficient surge protection in electronic circuits. This component features a capacitance of 4.95nF and a robust clamping current of 10 amperes, making it ideal for suppressing voltage spikes and transient surges.

Designed with a varistor voltage rating of 47 volts and a high clamping voltage of 2970 volts, it offers reliable clamping action to protect sensitive electronics. The varistor utilizes a metal oxide composition with an epoxy-coated ceramic body, bolstered by tinned copper leads for excellent electrical conduction and environmental resistance.

The device is rated for maximum alternating current voltage of 1100V AC and a maximum DC voltage of 1465V DC. Its surge current withstand capability reaches up to 1 kiloampere, combined with an energy rating of 1 joule, supporting transient suppression in demanding industrial and commercial settings.

The physical dimensions are compact, with a diameter of 15.5mm, length of 43.5mm, and thickness and depth of 4.4mm each. It features a pin count of 2 and lead pitch of 7.5mm suitable for through-hole mounting on printed circuit boards.

This varistor is resistant to temperature extremes between -40°C and 85°C, ensuring dependable performance in a variety of environmental conditions, including industrial, laboratory, electronic, and power supply applications.

Certified to multiple standards including CSA, UL, VDE, and IEC, this component assures quality and safety compliance. Its standard series design and automotive non-compliance make it suited for general industrial electronics rather than automotive electronics.

High clamping voltage of 2970 volts ensures robust voltage spike protection. Varistor voltage rated at 47 volts for precise electrical response. Standard radial epoxy-coated metal oxide construction with tinned copper leads.

Operates in temperature range from -40°C to 85°C for versatile applications. Compact dimensions including 15.5mm diameter and 43.5mm length allow for easy integration. Designed for surge currents up to 1kA and energy rating of 1 joule.

Suitable for lead mount with 7.5mm lead pitch for PCB assembly. Manufactured according to CSA, UL, VDE, IEC approvals. Epoxy coated ceramic body ensures durability and electrical insulation.
