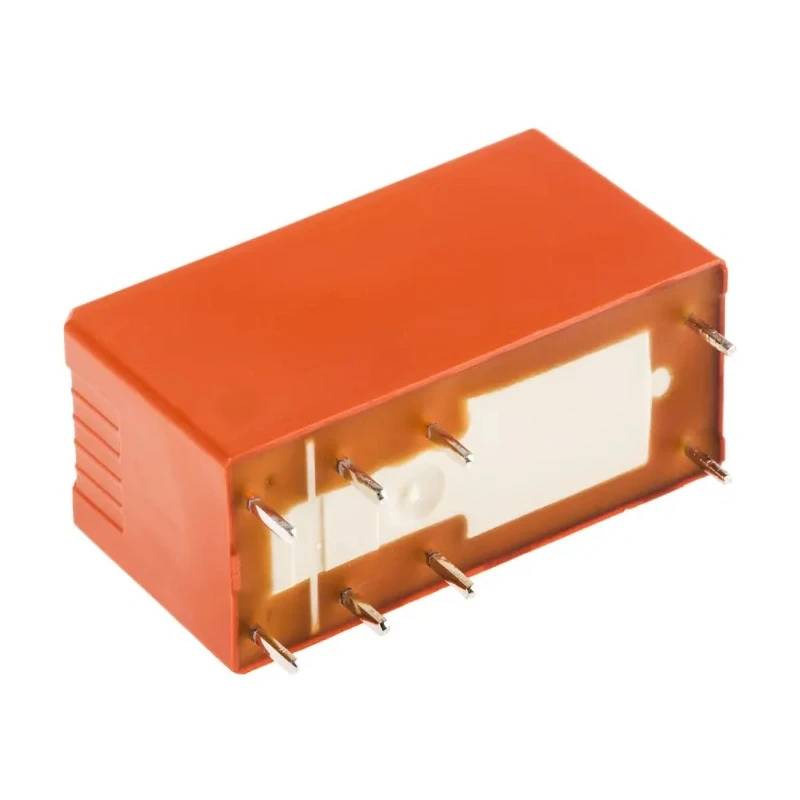

TE Connectivity High Temperature PCB Power Relay 12V DC Coil 16A Switching Current SPDT RTH14012

TE Connectivity RTH14012 is a high temperature PCB power relay operating with a 12V DC coil and supporting a switching current of 16A in an SPDT contact configuration. This relay is designed for demanding applications requiring reliability at elevated temperatures, capable of functioning in ambient conditions up to 105°C.

The relay's coil consumes only 500mW, making it efficient and sensitive for precise switching operations. Constructed with Silver Nickel Alloy contacts, it ensures durability and consistent electrical performance. The device mounts onto printed circuit boards using through-hole 5mm pinning and solder terminal types, facilitating secure mechanical and electrical connections.

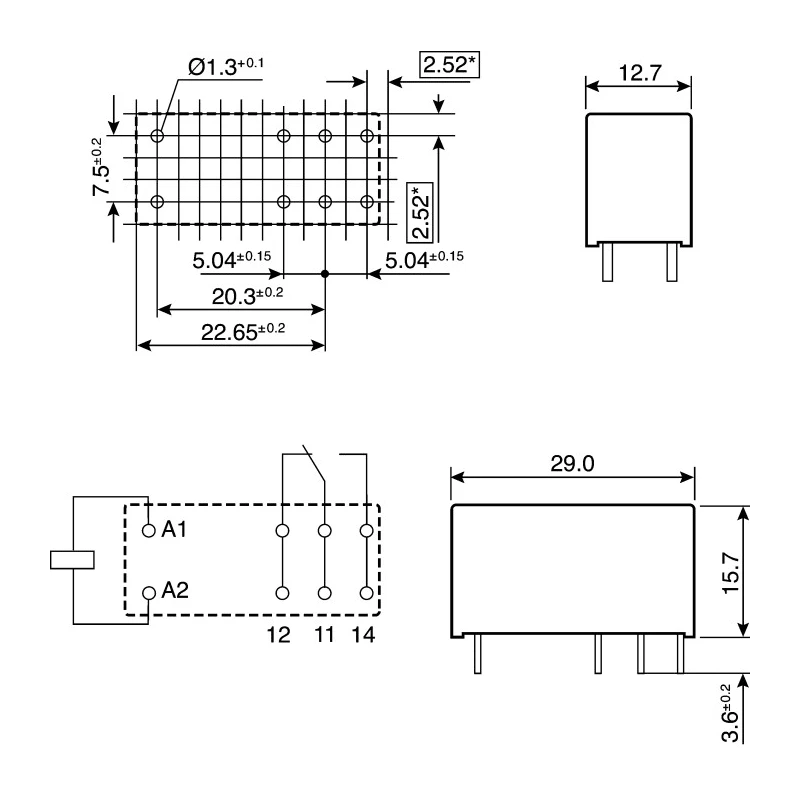

Its compact dimensions - 29mm length, 15.7mm height, and 12.7mm width - allow integration into tight spaces on electrical assemblies. Rated for switching AC voltages up to 400V AC, it is suitable for appliances like oven controls, cooking plates, and other industrial electrical control systems where reliable power relay performance is essential.

Designed with reinforced insulation and flux-proof enclosure, the RTH14012 relay provides enhanced safety and longevity. It complies with industry standards including RoHS and IEC 61810, and is manufactured in Austria ensuring high quality production.

The relay is suitable for operating at ambient temperatures up to 105°C. It employs a sensitive 500mW coil power consumption for efficient switching. Contact material uses a Silver Nickel Alloy for durability and reliability.

Designed for PCB mounting with through-hole 5mm pinning and solder terminals. Switching AC voltage is rated up to 400V AC, suitable for varied electrical control uses. The relay body dimensions are compact with 29mm length, 15.7mm height, and 12.7mm width.

Incorporates reinforced insulation and flux proof design to ensure safe operation. Applications include oven control, cooking plate control, and similar industrial uses. Manufactured in Austria with compliance to RoHS and IEC 61810 standards.

This power relay is ideal for use in industrial, commercial, and laboratory automation systems requiring durable, high-temperature resistant relays. It ensures dependable switching and operational efficiency in electrical and electronic devices.
