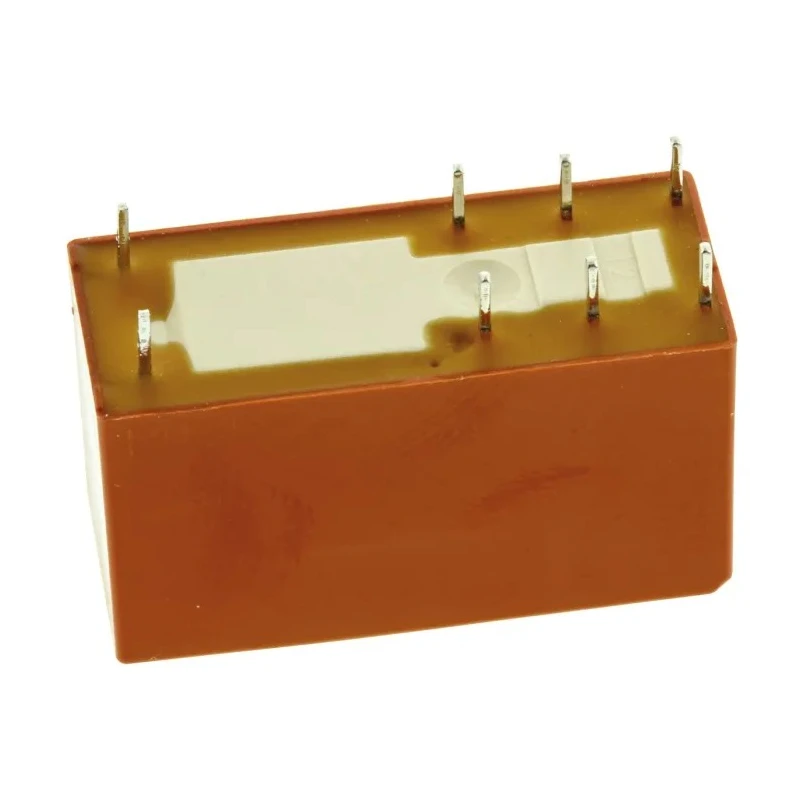

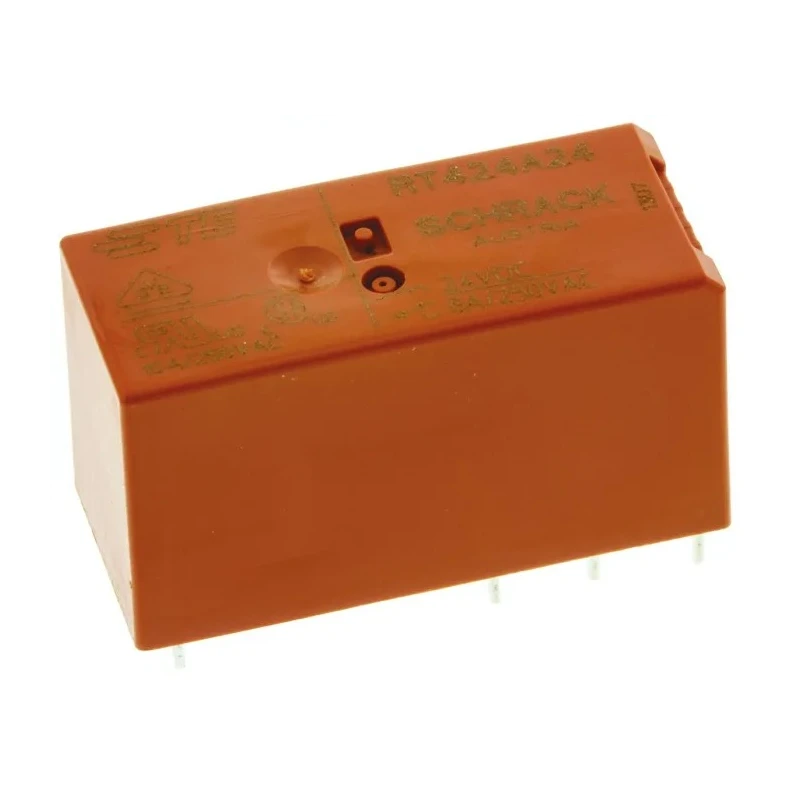

TE Connectivity PCB Power Relay 24V dc Coil 8A Switching Current DPDT RT424A24

TE Connectivity RT424A24 PCB Power Relay is a robust and reliable relay designed for industrial and electronic applications requiring precise switching and memory functionality. With a coil voltage of 24V DC and a maximum switching current of 8A, this DPDT relay offers exceptional performance for power relay uses in electrical, automation, and signal conditioning systems.

The relay features a double pole double throw contact configuration, allowing simultaneous control of two circuits. Its silver alloy contacts ensure excellent conductivity and long service life even under heavy electrical loads.

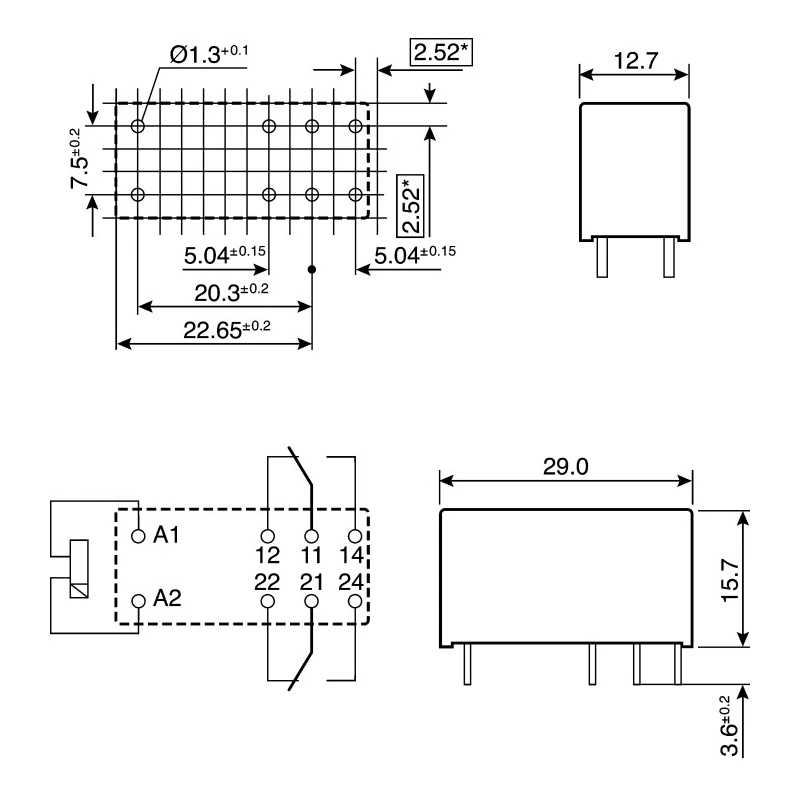

The coil resistance of 1.4 kΩ optimizes power consumption, while the relay’s operating temperature range from -10°C to 85°C enables operation in diverse environmental conditions. Measuring 29 mm in length, 15.7 mm in height, and 12.7 mm in width, this compact relay is suitable for PCB mounting with solder type terminals, offering secure and effective installation.

The RT424A24 belongs to the SCHRACK series, known for reinforced insulation, shock resistance up to 100g, and flux-proof design, making it ideal for industrial automation, manufacturing, HVAC, and battery-powered equipment where latching functions and memory retention during power failure are essential.

Equipped with a 24V DC coil voltage designed for PCB mounting. Double Pole Double Throw (DPDT) contact configuration for versatile switching. Offers a maximum switching current of 8 amperes and 400V AC switching voltage.

Constructed with silver alloy contacts for reliable conductivity and durability. Coil resistance is 1.4 kΩ, supporting energy efficiency. Operating temperature ranges from -10°C to 85°C, suitable for varied environments.

Compact dimensions: 29 mm length, 15.7 mm height, and 12.7 mm width. Features PCB mount type with solder terminals for secure installation. Complies with RoHS standards, ensuring environmental safety. Relays are bistable/latching type, suitable for memory function applications and battery-powered equipment.

This relay is manufactured in Austria and meets RoHS compliance for environmental regulations. It is a quality product from TE Connectivity, a trusted brand for industrial-grade electronic components.

EnvMart offers this relay under Electronics & Electricals category with applications in Power Relay switching, automation, control systems, and PCB assembly projects.
