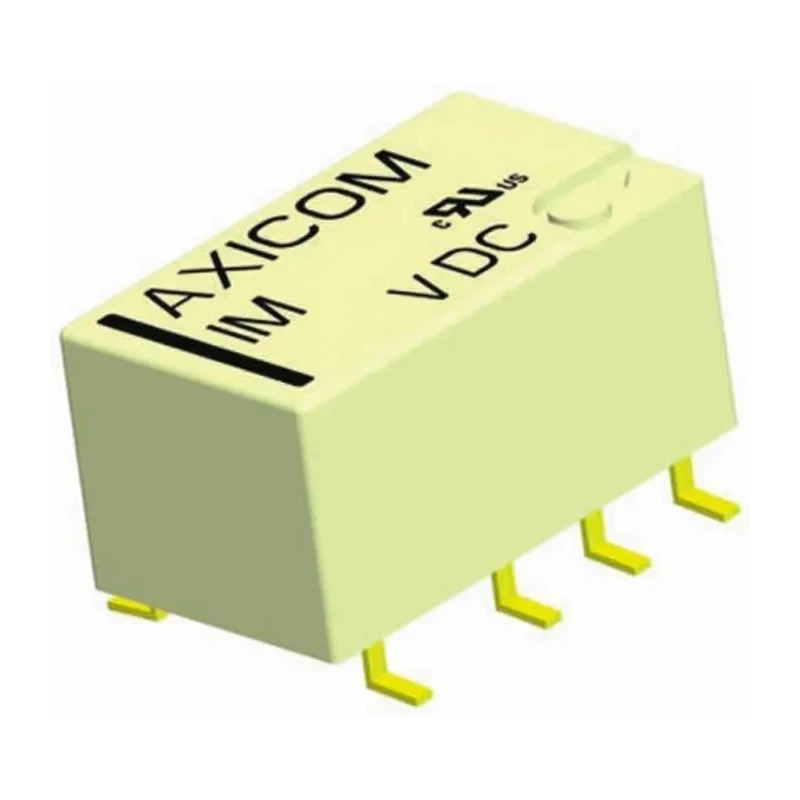

TE Connectivity PCB Power Relay 12V DC Coil 5A Switching Current DPDT IM06DGR
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.7mm |
| Length | 10mm |
| Model | IM06DGR |
| Width | 7.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Surface Mount |
| Contact Resistance | 50mΩ |
| Standards/Approvals | UL |
| Coil Resistance | 1kΩ |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
Key Features

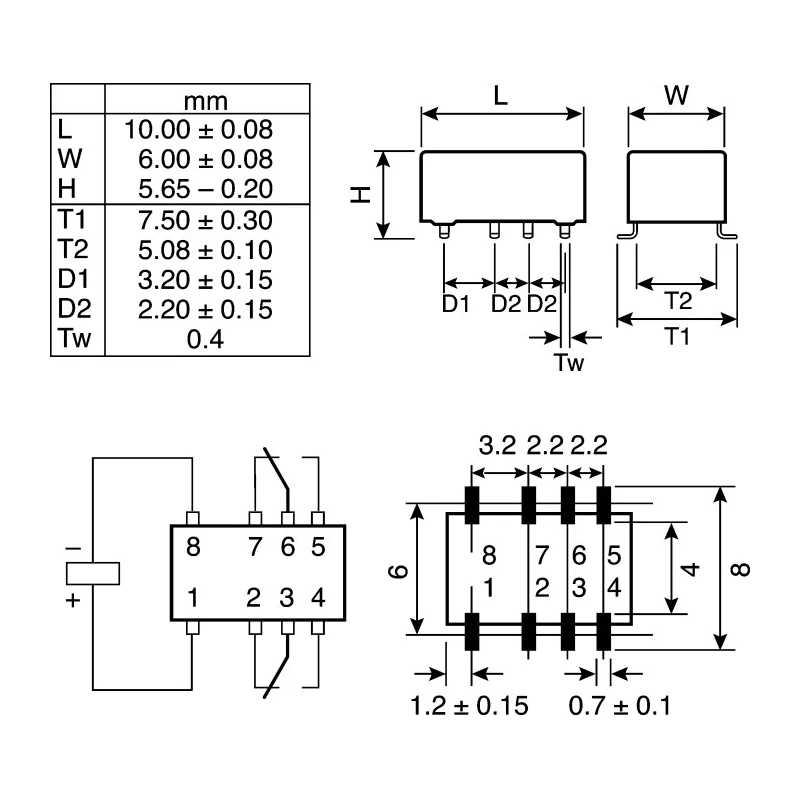

- The relay has a compact slimline design with a size of 10x7.5x5.7mm for PCB mounting.
- It uses gold plated bifurcated contacts for reliable switching performance.
- Coil resistance is 1kΩ with a coil power rating of 140mW for efficient operation.
- The relay provides switching voltages up to 250V AC and 220V DC with contact rating of 5A.
- It is hermetically sealed with IP67 protection for enhanced durability and reliability.
- Operating temperature ranges from -40°C to +85°C, suitable for harsh environments.
- The relay meets UL safety standards and withstands high mechanical shock up to 300G functional.
- Surface mount gull wing terminal type enables easy PCB assembly.
Product Description
TE Connectivity IM06DGR PCB Power Relay is a highly reliable component designed for use in a variety of industrial, automation, and electronic control applications requiring double pole double throw switching. Featuring a 12V DC coil and a switching current capability of 5A, this relay supports both AC and DC voltages up to 250V AC and 220V DC respectively.
The relay has a slimline and low profile construction measuring 10mm in length, 7.5mm in width, and 5.7mm in height, making it suitable for dense PCB layouts. Its gold plated bifurcated contacts enhance signal integrity and longevity. Coil resistance of 1kΩ and coil power consumption of 140mW ensure energy efficient coil activation.
This IM series relay is hermetically sealed (rated IP67), providing high resistance to environmental factors and mechanical shock (up to 300G functional, 500G survival), ensuring reliable long-term operation even in harsh industrial environments. The surface mount gull wing terminal design facilitates fast and reliable PCB mounting.
Operating temperature range of -40°C to +85°C enables use in extreme conditions. The relay complies with UL standards confirming its quality and safety credentials. Contact resistance is kept low at 50mΩ to reduce power loss and maintain electrical performance.
The relay offers a robust switching solution with DPDT contact configuration supporting 5A switching current. Compact and lightweight design fits into compact PCB footprints for space constrained applications. Gold plating on contacts ensures enhanced conductivity and corrosion resistance.
Surface mount gull wing terminals simplify automated PCB assembly processes. High shock resistance supports reliable function in industrial and automation systems. Wide temperature range operation supports demanding environmental conditions.
Hermetic sealing protects internal components from dust and moisture ingress. Certified to UL standards ensuring product safety and compliance. Low coil power requirements enable energy efficient designs. Suitable use cases include telecommunications equipment, industrial automation control panels, instrumentation, and other electronic devices requiring reliable power switching.
Explore our comprehensive range of Power Relays and related components to meet all industrial and electronic applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 5A.
This model measures 10mm in length, 7.5mm in width, and 5.7mm in height.
It operates with a 12V DC coil voltage.
The relay supports a maximum switching voltage of 250V AC and 220V DC.
The relay features a double pole double throw (DPDT) contact configuration.
The coil resistance is 1kΩ.
It uses gold plated bifurcated contacts for reliable switching performance.
The operating temperature range is from -40°C to +85°C.
This model is designed for PCB mounting with surface mount gull wing terminals.
The relay is hermetically sealed with an IP67 protection rating, ensuring resistance to dust and moisture.
It complies with UL safety standards, confirming its quality and safety credentials.
The contact resistance is kept low at 50mΩ to reduce power loss.
