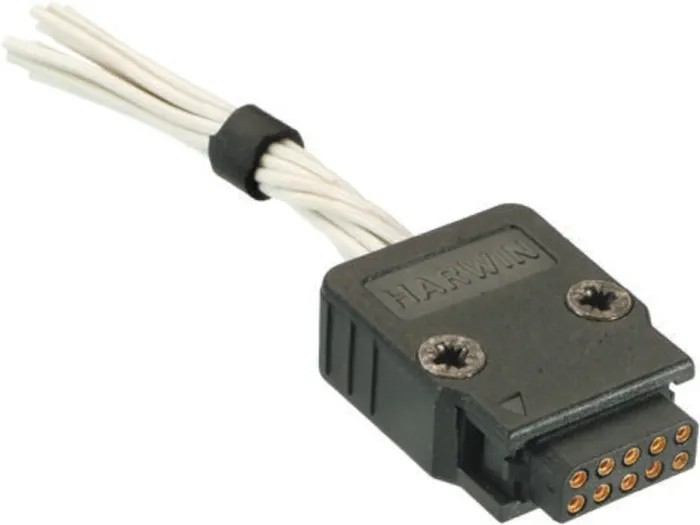

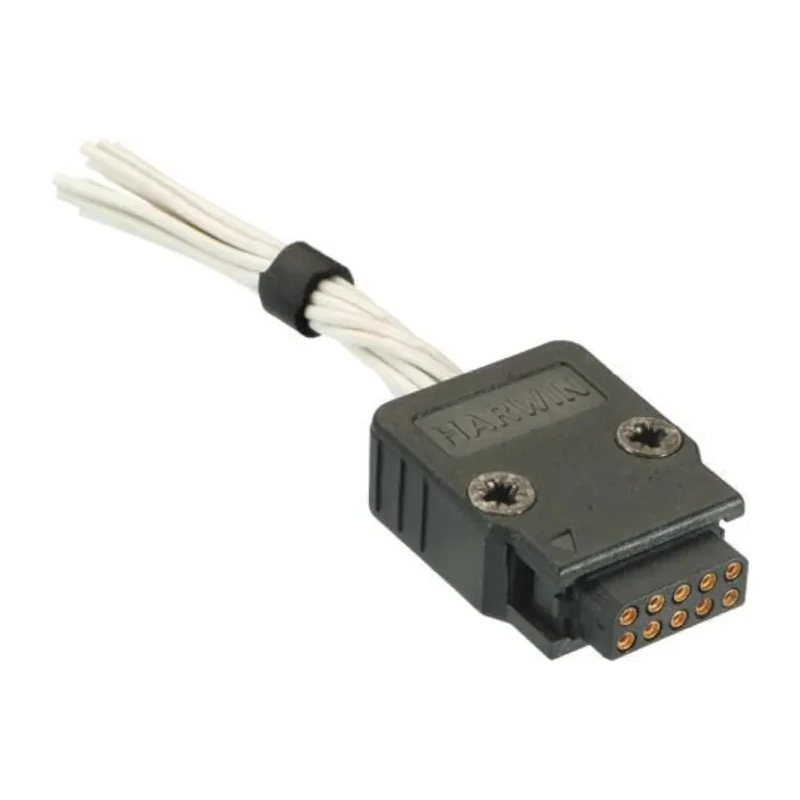

HARWIN M180 Female Connector Housing 12 Way 2 Row Straight 2 mm Pitch M80-8801298

Name: HARWIN M180 Female Connector Housing 12 Way 2 Row Straight 2 mm Pitch M80-8801298
Brand: HARWIN
SKU: 164609



Category Connector Housing Brand HARWIN Condition New

Specifications

Country of Origin	United Kingdom
Brand	HARWIN
Orientation	Straight
Length	18.3mm
Model	M80-8801298
Width	7.71mm
Mount Type	Cable
Housing Material	Fibreglass Reinforced Polystyrene
Series	M180
Number of Rows	2
Pitch	2mm
For Use With	Crimp Connector, Board-In Connector
Number of Contacts	12
Connector Gender	Female

Key Features

This connector housing is part of the M180 series, ensuring reliable electrical connections.
It features fiberglass reinforced polystyrene housing for durability and mechanical strength.
The housing is compatible with crimp connectors and board-in connectors for versatile usage.
Its compact dimensions of 18.3 mm length and 7.71 mm width make it suitable for tight PCB layouts.
Designed for industrial and electronic applications requiring high safety and vibration resistance.
Polarised mouldings ensure correct mate orientation and prevent misconnection.
High reliability four-finger Beryllium Copper contacts provide excellent contact integrity.
The product complies with standards BS9525-F0033, MIL C 55302, and CEC 75101-008 for quality assurance.

Product Description

HARWIN M80-8801298 is a female connector housing from the M180 series featuring 12 contact positions arranged in 2 rows with a 2 mm pitch, designed for cable mounting with straight orientation. The housing material is fiberglass reinforced polystyrene, offering superior strength and durability for demanding industrial environments and electronic applications.

The connector system is specifically engineered to withstand high loads of vibration, shock, and acceleration, making it ideal for applications requiring safety and reliability such as industrial machinery, automation, aerospace, and instrumentation.

The Datamate range, to which this connector belongs, utilizes highly durable four-finger Beryllium Copper contacts that ensure consistent performance over many mating cycles. The housing includes polarised mouldings to guarantee correct and secure mating, preventing misconnection that could compromise system integrity.

This connector housing is compatible with crimp and board-in connectors, providing flexibility in cable assembly and PCB interconnections. With a compact size of 18.3 mm length and 7.71 mm width, it supports efficient PCB space utilization and neat wiring layouts.

Complying with esteemed industry standards including BS9525-F0033, MIL C 55302, and CEC 75101-008, this product assures high quality and reliability in demanding environments. Manufactured in the United Kingdom, it meets strict manufacturing and quality control protocols.

This connector housing is part of the M180 series, ensuring reliable electrical connections. Fiberglass reinforced polystyrene housing provides mechanical strength and durability. Compatible with crimp and board-in connectors for versatile applications.

Compact dimensions support tight PCB layouts. High reliability four-finger Beryllium Copper contacts ensure long-term connection integrity. Polarised mouldings prevent misconnection risks. Complies with BS9525-F0033, MIL C 55302, and CEC 75101-008 standards.

Suitable for industrial, electronic, and harsh environment use cases. Manufactured in the United Kingdom under stringent quality control.
