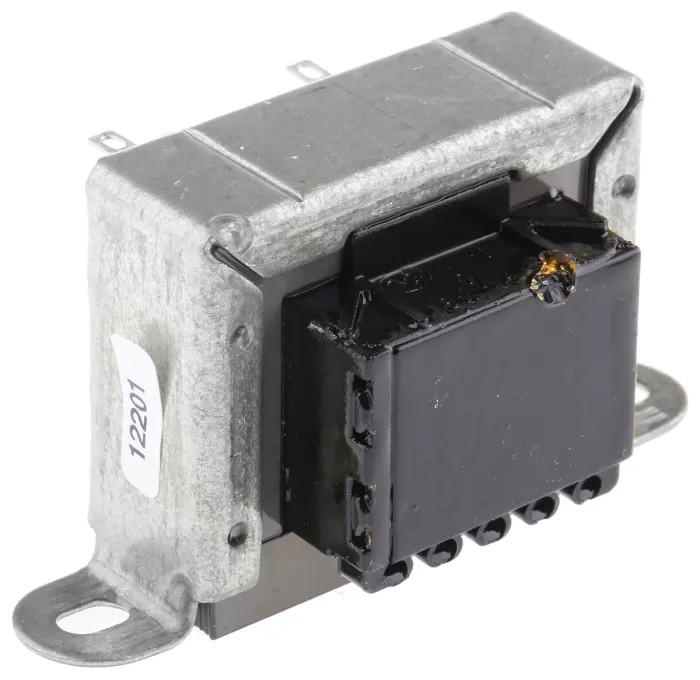

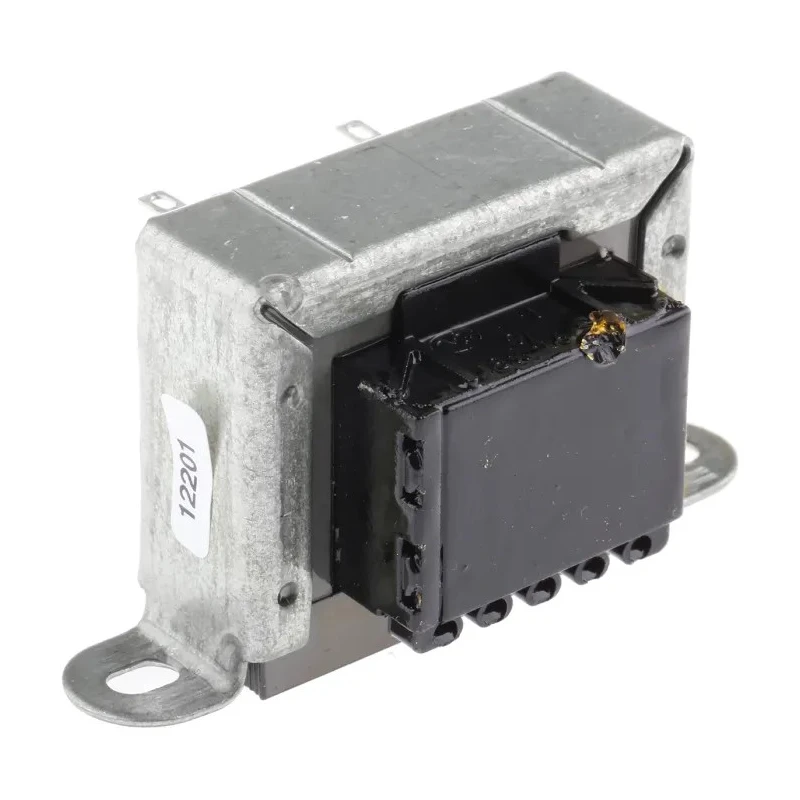

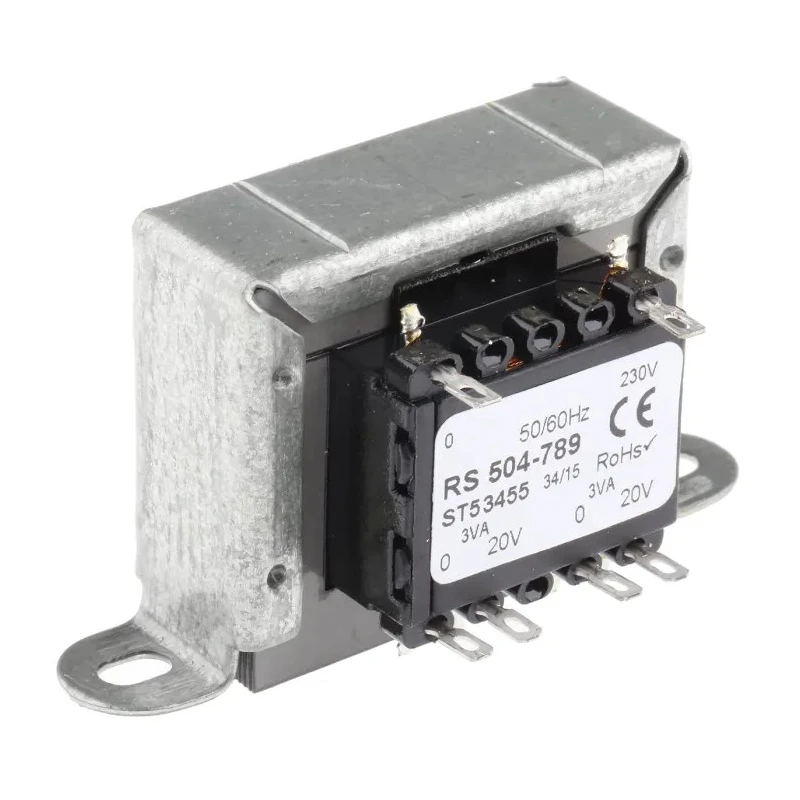

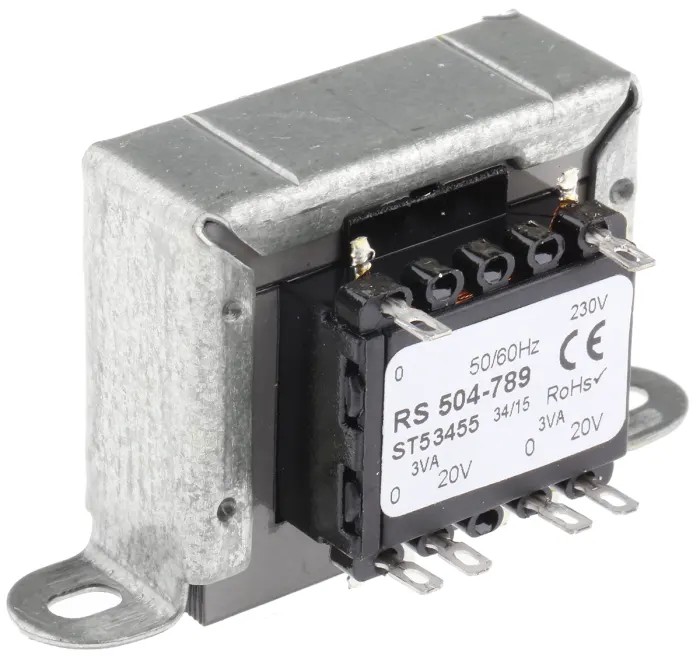

RS PRO 2 Output 6 VA Chassis Mount Transformer, 230 V ac Primary, 20 V ac Secondary, 50/60 Hz, Clamp Construction 504-789

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 2 Output 6 VA Chassis Mount Transformer, 230 V ac Primary, 20 V ac Secondary, 50/60 Hz, Clamp Construction 504-789

Name: RS PRO 2 Output 6 VA Chassis Mount Transformer, 230 V ac Primary, 20 V ac Secondary, 50/60 Hz, Clamp Construction 504-789
Brand: RS PRO
SKU: 164288
Price: 42.23 USD
Availability: InStock



Category Chassis Mount Transformer Brand RS PRO Condition New

Specifications

Country of Origin	Poland
Brand	RS PRO
Length	45mm
Model	504-789
Depth	37mm
Gross Weight	210g
Width	40mm
Maximum Operating Temperature	130°C
Minimum Operating Temperature	-30°C
Number of outputs	2
Primary Voltage	230 V ac
Secondary Voltage	20 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Walsall Transformers 6VA 2 Output Chassis Mounting Transformer, 20V acBrand	Walsall Transformers

Key Features

Operates reliably with a primary voltage of 230 V ac and frequency range of 50 to 60 Hz.
Features two independent secondary outputs that can be connected in series or parallel.
Constructed with fully shrouded double section bobbins and clamp mounting for secure chassis installation.
Tested according to BS3535 and EN 60742 standards ensuring quality and safety compliance.
Engineered to function in temperatures ranging from -30°C to 130°C for varied industrial environments.
Compact dimensions of 45 mm length, 40 mm width, and 37 mm depth save space in assemblies.
Lightweight at 210 g for easy manipulation and mounting in electronic equipment.
Fully varnish impregnated and 100% electrically flash tested for durability and reliability.

Product Description

RS PRO model 504-789 is a chassis mount transformer offering dual independent outputs each delivering 20 V ac with a total power rating of 6 VA. It operates on a 230 V ac primary supply at 50/60 Hz frequency, suitable for electronics, industrial, and power supply applications.

The transformer features a clamp construction design with fully shrouded bobbins and full varnish impregnation to ensure insulation reliability and mechanical protection. Its small form factor with 45 mm length, 40 mm width, and 37 mm depth allows integration into compact devices and control panels.

Certified to meet stringent international standards including ASNZS 61558, CE, IECBSEN 61558 series, and RoHS, this product is manufactured in Poland adhering to high-quality production protocols. It is designed for reliable operation in harsh environments with a wide temperature range from -30°C to 130°C.

Double section bobbin construction and clamp mounting enable easy and secure chassis mounting. The two independent secondary windings offer flexible wiring configurations, including series or parallel connections to vary output voltage and current as per design needs.

Tested fully for electrical integrity and flash testing to BS3535 and EN 60742 standards, this RS PRO transformer ensures safety and long-lasting performance for industrial, laboratory, manufacturing, and commercial power distribution systems.

Operates with 230 V ac primary voltage and dual 20 V ac secondary outputs. Power rating of 6 VA supports low power applications and electronic circuits. Clamp mounting type with compact 45x40x37 mm dimensions for space-saving installation.

Wide operating temperature from -30°C up to 130°C for use in various environments. Complies with international standards ASNZS 61558, CE, IECBSEN 61558, and RoHS. Manufactured in Poland ensuring high European quality standards.

This Chassis Mount Transformer is ideal for use in industrial controls, electronic devices, power supplies, and HVAC systems where reliable low voltage power conversion is required. Explore full RS PRO range for additional power ratings and mounting configurations at EnvMart.
