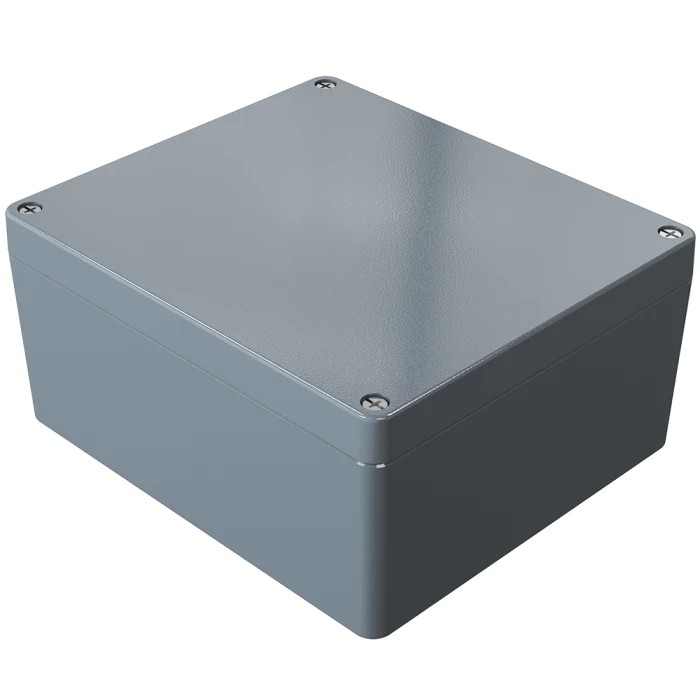

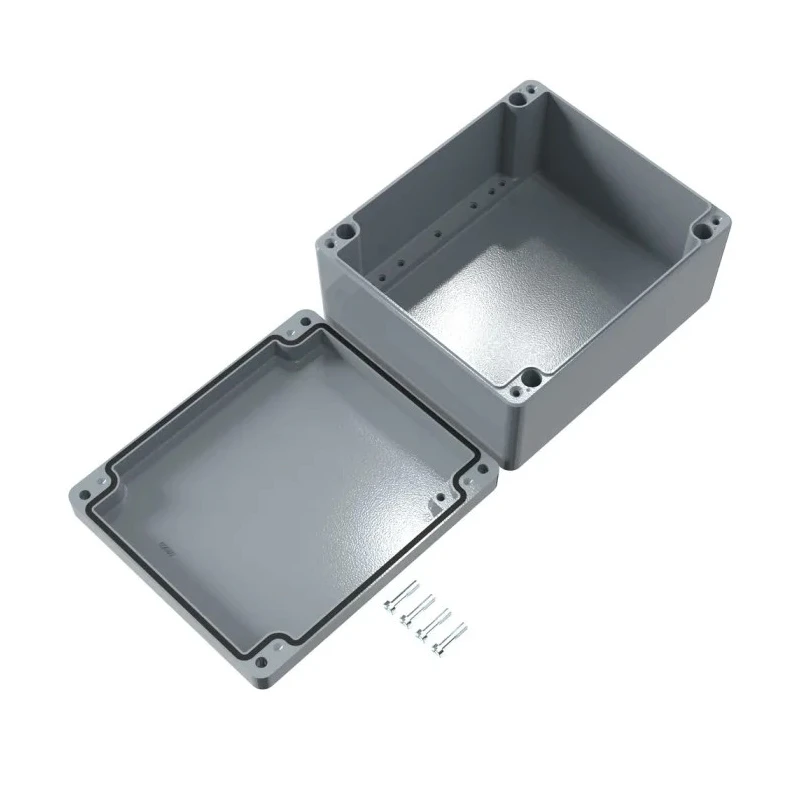

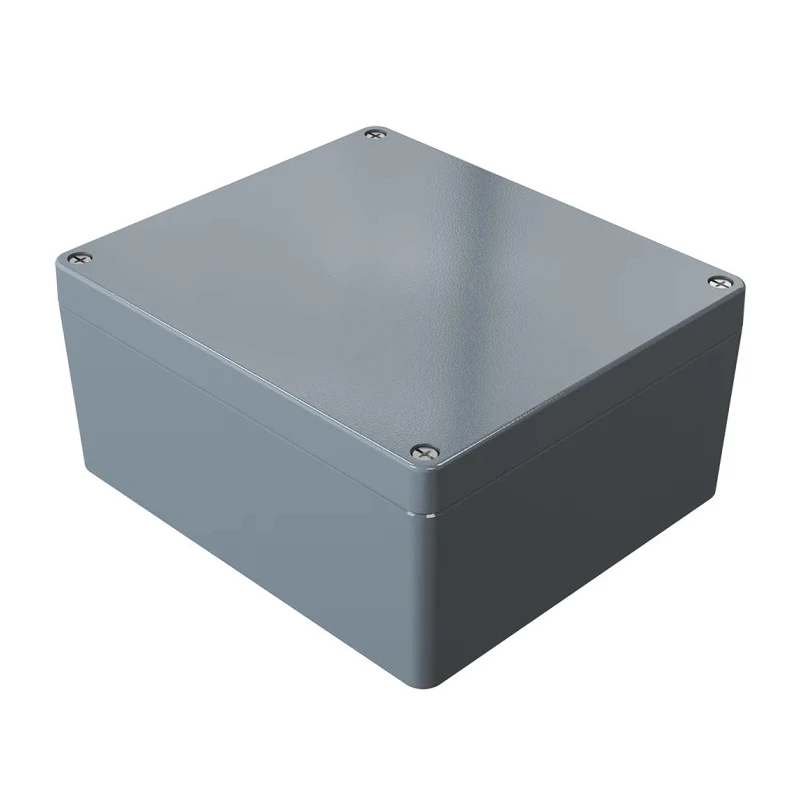

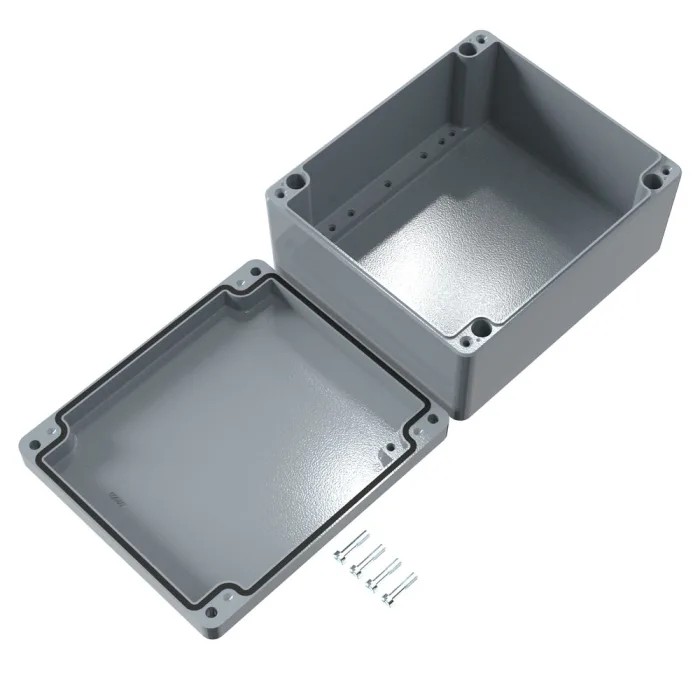

Rose Aluminium Standard Series Grey Grey Lid Die Cast Aluminium Enclosure IP66 IK09 111mm x 232mm x 202mm 01232011

Rose 01232011 Aluminium Standard Series Grey Grey Lid Die Cast Aluminium Enclosure is a reliable electrical enclosure designed to protect sensitive components in industrial and harsh environments. This enclosure features a die cast aluminium body providing excellent corrosion resistance and high conductivity, ideal for electrical and automation systems.

Its compact dimensions of 111mm height, 232mm length, and 202mm width make it versatile for storing smaller components such as printed circuit boards, computer connections, and telecommunication devices. The polyurethane gasket ensures a tight seal for effective protection against dust and water ingress, confirmed by its IP66 rating.

With an IK09 rating, it offers superior impact resistance, suitable for industrial and automotive sector applications. The enclosure meets UL 508A standards, guaranteeing compliance for industrial control panel installations. The grey lid is secured with stainless steel captive screws to prevent unauthorized access or tampering.

Installation is flexible with options for DIN rail or mounting plate setups, making it compatible with various industrial automation layouts. The enclosure operates reliably within a temperature range from -40°C to +90°C, accommodating demanding environmental conditions.

Applications include safeguarding printed circuit boards, computer wiring, telecommunications systems, and use within the automotive industry. The unit weighs 2.4kg and is manufactured in Germany, ensuring robust quality and performance.

The enclosure body is made of die cast aluminium for durability and corrosion resistance. The polyurethane gasket provides IP66 ingress protection against dust and water jets. UL508 approved for industrial control panels ensuring safety compliance.

IK09 rated for impact resistance in demanding environments. Includes stainless steel captive screws for secure lid fixing. Compact size suitable for various industrial electrical applications. Designed for DIN rail or mounting plate installations.

Operates effectively within -40°C to +90°C temperature range.

Rose Aluminium Standard Series enclosures are widely used in industrial automation, electrical distribution, telecommunications, and automotive sectors for reliable component protection. Explore more quality enclosures and related accessories in the Electrical Enclosures category at EnvMart.
