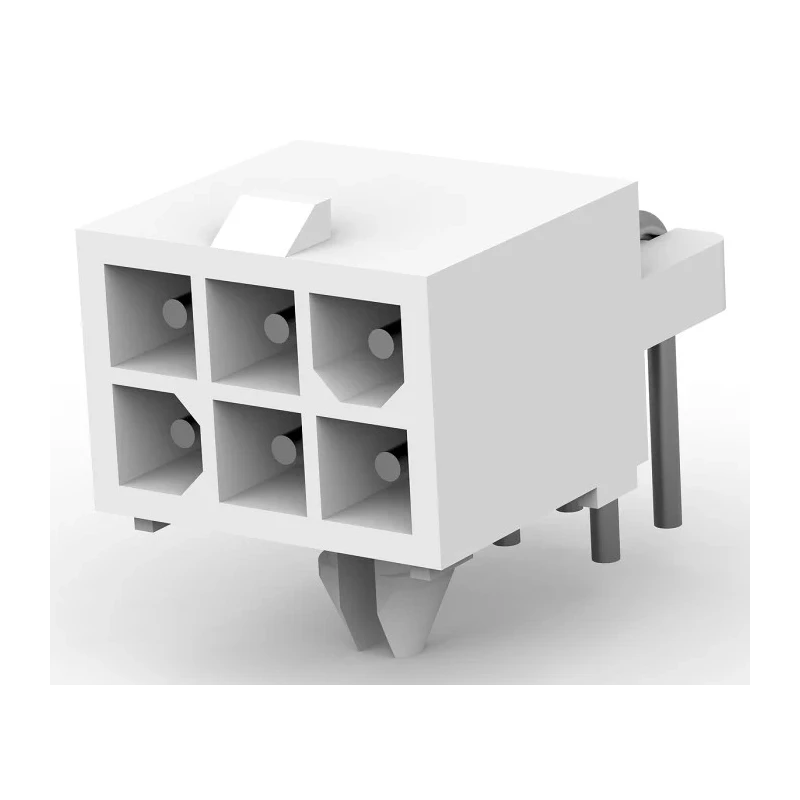

TE Connectivity Mini-Universal MATE-N-LOK Series Right Angle Through Hole PCB Header 6 Contacts 4.14 mm Pitch 1-770969-0

Name: TE Connectivity Mini-Universal MATE-N-LOK Series Right Angle Through Hole PCB Header 6 Contacts 4.14 mm Pitch 1-770969-0
Brand: TE Connectivity
SKU: 164003
Price: 2.26 USD
Availability: InStock



Category PCB Headers Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	TE Connectivity
Orientation	Right Angle
Current	9.5A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	Mini-Universal MATE-N-LOK
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	4.14mm
Contact Plating	Tin
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.69mm

Key Features

Constructed with a durable nylon housing that meets UL94V-0 standards for flame resistance.
Rated for 600V and 9.5A current for reliable electrical performance.
Includes brass contacts plated with tin for corrosion resistance and improved conductivity.
Equipped with a positive locking latch mechanism ensuring secure mating and retention.
Suitable for operation in temperatures ranging from -55°C to 105°C.
Designed with a 2-row configuration and a 3.69mm tail pin length for precise solder termination.
Shrouded connector system to provide protection and prevent accidental contact.

Product Description

TE Connectivity 1-770969-0 Mini-Universal MATE-N-LOK Series PCB Header is a professional right angle through hole connector designed for reliable wire-to-board connections in industrial and electronic equipment. This series features a 2-row contact arrangement with 6 male pins spaced at a 4.14 mm pitch, providing secure electrical connections compliant with high voltage and current requirements.

The connector housing is made from high-quality UL94V-0 rated nylon offering excellent flame resistance and mechanical durability. Contacts are manufactured from brass and plated with tin to ensure long-term corrosion resistance and electrical conductivity. The included positive locking latch mechanism ensures stable mating, preventing accidental disconnections during use.

The termination type is solder, with tail pins measuring 3.69 mm length, suitable for through-hole mounting on printed circuit boards. It operates reliably within a temperature range of -55°C to 105°C, making it appropriate for demanding industrial, manufacturing, and commercial electronic applications.

This connector system is ideal for use in PCB fabrication, assembly lines, and cable-to-board interface scenarios in sectors such as telecommunications, automation, instrumentation, and power electronics. It supports a maximum voltage rating of 600V and a current rating of 9.5A, suitable for moderate power transmission needs.

Durable nylon housing with UL94V-0 flame rating. Brass contacts plated with tin for longevity and conductivity. Positive locking latch for secure mating connections. Right angle orientation with 2 rows and 4.14 mm pitch.

Through hole solder termination with 3.69 mm tail pins. Operating temperature range from -55°C to 105°C. 600V voltage and 9.5A current ratings for reliable performance.

EnvMart offers this TE Connectivity Mini-Universal MATE-N-LOK PCB Header for professional and industrial use, enabling efficient and dependable electrical interfacing solutions. Browse our Electronics & Electricals and Connectors categories for advanced components.

Explore more products in our PCB Headers category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The connector is rated for a maximum voltage of 600V and a current rating of 9.5A, ensuring reliable electrical performance for various applications.

The housing is made from nylon, which is UL94V-0 rated for flame resistance, while the contacts are manufactured from brass and plated with tin for corrosion resistance and improved conductivity.

This model features a 4.14 mm pitch with a 2-row configuration, providing a total of 6 male contacts for secure connections.

The termination type for this connector is solder, with a tail pin length of 3.69 mm, suitable for through-hole mounting on printed circuit boards.

It operates reliably within a temperature range of -55°C to 105°C, making it suitable for demanding industrial and electronic applications.

Yes, it is equipped with a positive locking latch mechanism that ensures secure mating and retention, preventing accidental disconnections during use.

This model has a right angle orientation, which is beneficial for space-saving in PCB layouts.

The connector is manufactured in India.

It is suitable for wire-to-board connections in industrial, manufacturing, and commercial electronic applications, including telecommunications and automation.
