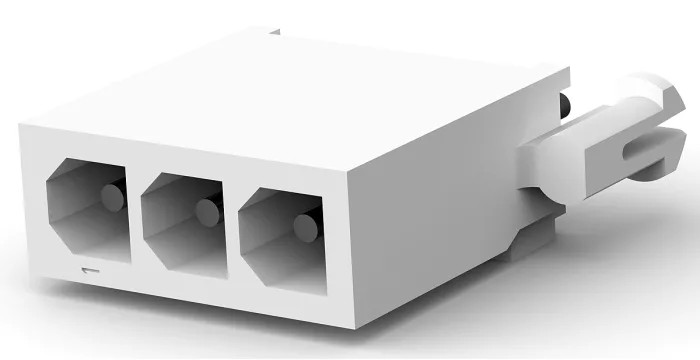

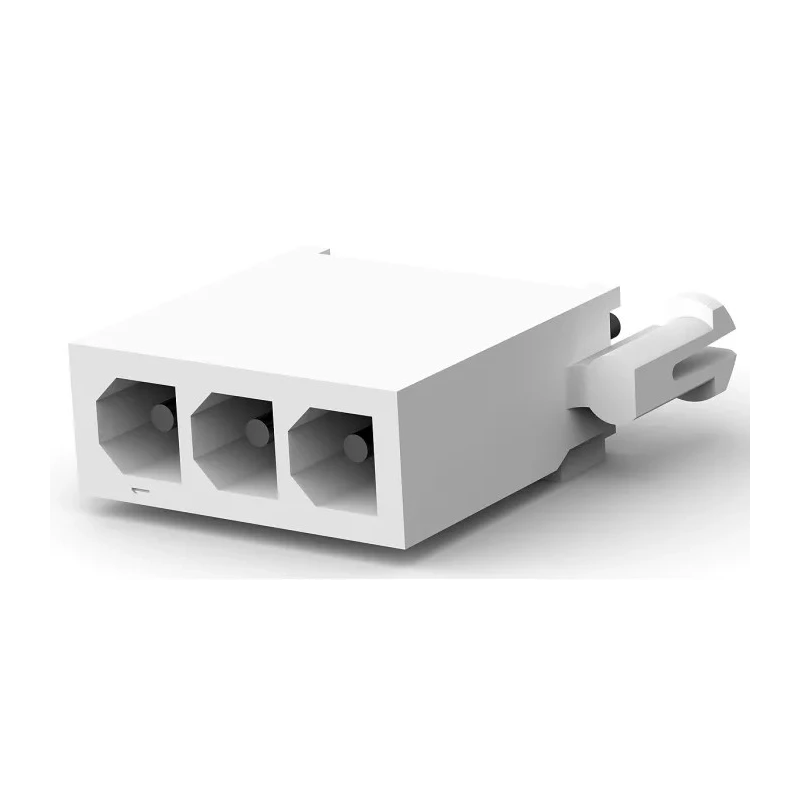

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header 3 Contact 4.14 mm Pitch 1 Row 1-770170-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 4.14mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.69mm |
Key Features
- Constructed with a nylon housing for strong insulation and durability.
- Features brass contact material with tin plating for reliable conductivity.
- Designed for wire-to-board connector systems with male contact gender.
- Operates safely at voltages up to 600V and current up to 9.5A.
- Supports operation in temperature ranges from -55°C to 105°C.
- Incorporates a positive locking latch mechanism for secure mating and PCB retention.
- Termination by soldering ensures strong and durable electrical connections.
- Tail pin length measures 3.69 mm, suitable for standard PCB thicknesses.
Product Description
TE Connectivity 1-770170-0 Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header is engineered for reliable wire-to-board connections with a 4.14 mm pitch and 3 contact points arranged in a single row.
The connector features a durable white UL94V-0 nylon housing, ensuring electrical insulation and fire retardance. Brass contact material plated with tin enhances electrical conductivity and corrosion resistance, while the shrouded design incorporates a positive locking latch mechanism to maintain secure connections and prevent accidental disconnection.
This male gender connector supports through hole mounting with solder termination, offering strong mechanical and electrical integrity. It is rated for 600 volts and 9.5 amperes of current, capable of operating continuously across a temperature range from -55°C to 105°C, catering to demanding electrical environments.
The tail pin length of 3.69 mm suits standard printed circuit board thickness, ensuring compatibility and ease of installation.
Mini-Universal MATE-N-LOK connectors are widely used in industrial, electronic manufacturing, automotive, and power distribution applications where durable and reliable PCB connections are critical. This product does not bear specific compliance certifications but adheres to robust quality materials and design conventions for connector systems.
Constructed with a nylon housing for insulation and durability. Brass contacts with tin plating for reliable conductivity. Wire-to-board connector system with male contact gender. 600V voltage and 9.5A current rating. Operating temperature from -55°C to 105°C.
Positive locking latch for secure mating and PCB retention. Solder termination type for robust connections. Tail pin length of 3.69 mm. Single row with 3 contacts and 4.14 mm pitch. Explore more PCB connectors and wire housing solutions from leading manufacturers in Electronics & Electricals category at EnvMart for your industrial and manufacturing needs.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB header is 600V.
This connector has a current capacity of 9.5A.
It operates within a temperature range of -55°C to 105°C.
This connector uses solder termination for robust connections.
This PCB header features 3 contacts arranged in a single row.
The pitch measurement of this connector is 4.14 mm.
The housing is made of nylon, and the contacts are brass with tin plating.
The tail pin length measures 3.69 mm, suitable for standard PCB thicknesses.
This connector is designed with male contact gender.
It supports through hole mounting, ensuring secure installation on PCBs.
This product does not bear specific compliance certifications but adheres to robust quality materials and design conventions.
This connector is suitable for industrial, electronic manufacturing, automotive, and power distribution applications where reliable PCB connections are critical.
