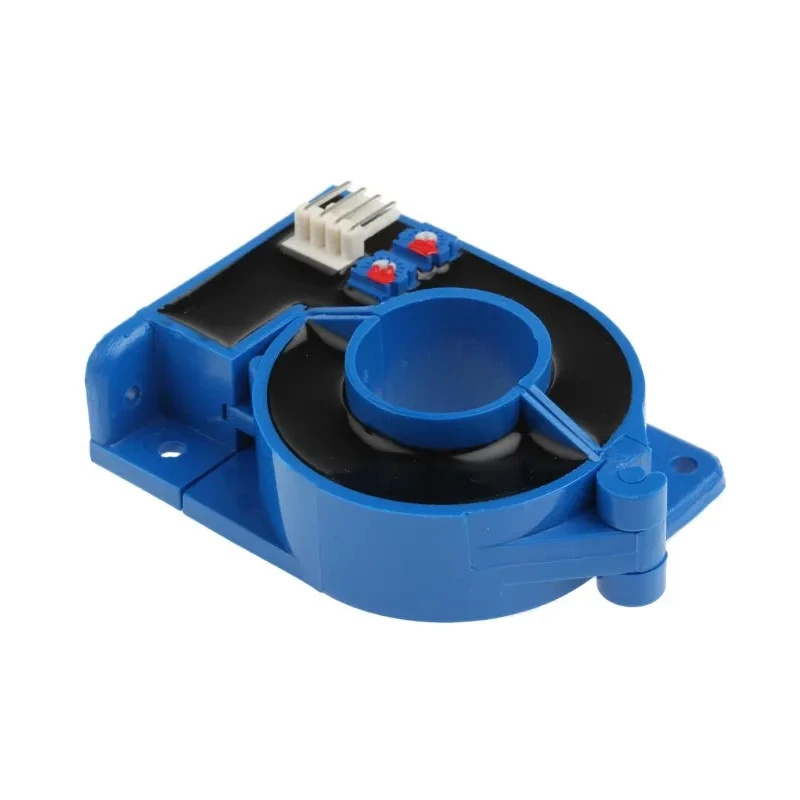

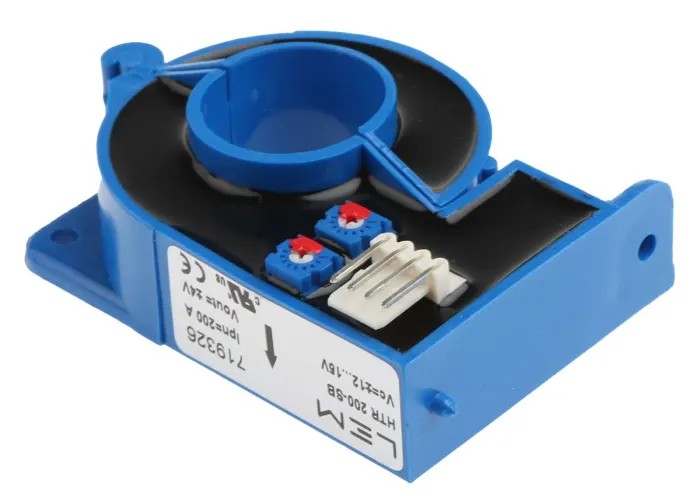

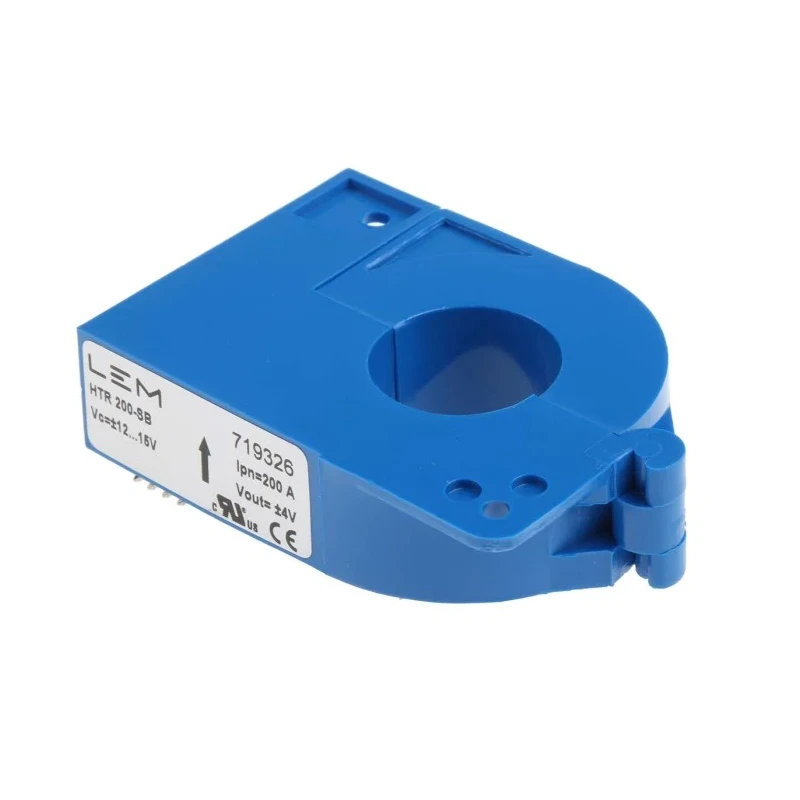

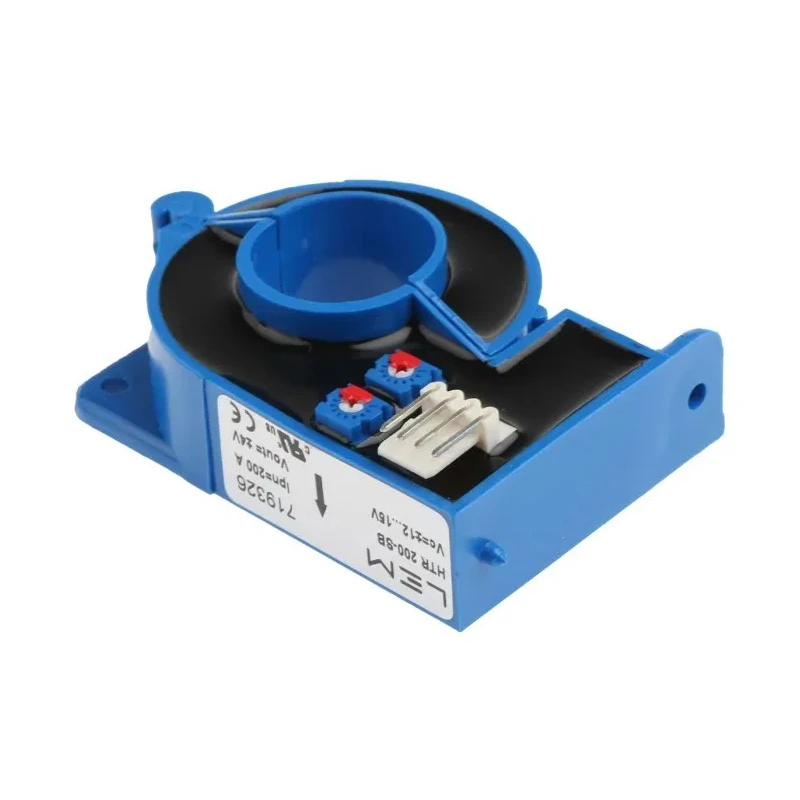

LEM Current Transformer HTR 200-SB Series 200 A 12V, 15 V 21mm Bore

LEM HTR 200-SB Current Transformer offers precise measurement of AC, DC, and pulse currents with galvanic isolation, making it ideal for industrial, electrical, and automation applications. This compact sensor features a 21 mm bore diameter and is designed for panel mounting, ensuring easy integration into control systems.

The device operates at supply voltages of 12 and 15 volts and supports frequencies up to 10 kHz, providing accurate and reliable current sensing for process control systems. Its Molex 5045-04/AG terminal connector enables secure and efficient electrical connections.

With an operating temperature range from -10°C to 70°C and compliance with UL 94-V0, IEC 61010-1, and EN 50178 safety standards, the HTR 200-SB is built for durability and long-term performance in demanding environments.

Weighing only 80 grams and measuring 46 mm width by 21.5 mm depth, this current transformer is designed to minimize space requirements without compromising functionality. The compact size and lightweight design allow straightforward installation in electrical panels and machinery.

Measures direct, alternating, and pulse currents with galvanic insulation. Compact design with 21 mm bore diameter. Terminal type: Molex 5045-04/AG connector. Operates at 12 V and 15 V supply voltage. Maximum operating frequency of 10 kHz for accurate sensing.

Temperature range: -10°C to 70°C for versatile use. Complies with UL 94-V0, IEC 61010-1, and EN 50178 standards. Panel mount type suitable for automation and control gear. Lightweight at 80 grams for ease of installation.

This current transformer is ideal for industrial, laboratory, HVAC, and manufacturing applications where precise current measurement and galvanic isolation are critical. Its performance and compliance make it a reliable choice for process control and electrical automation systems.
