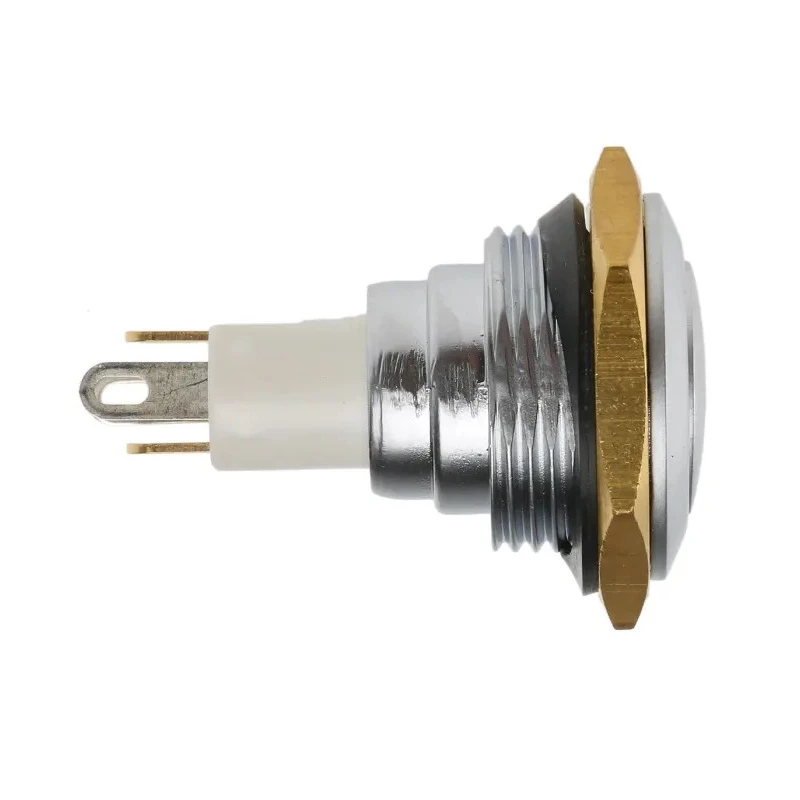

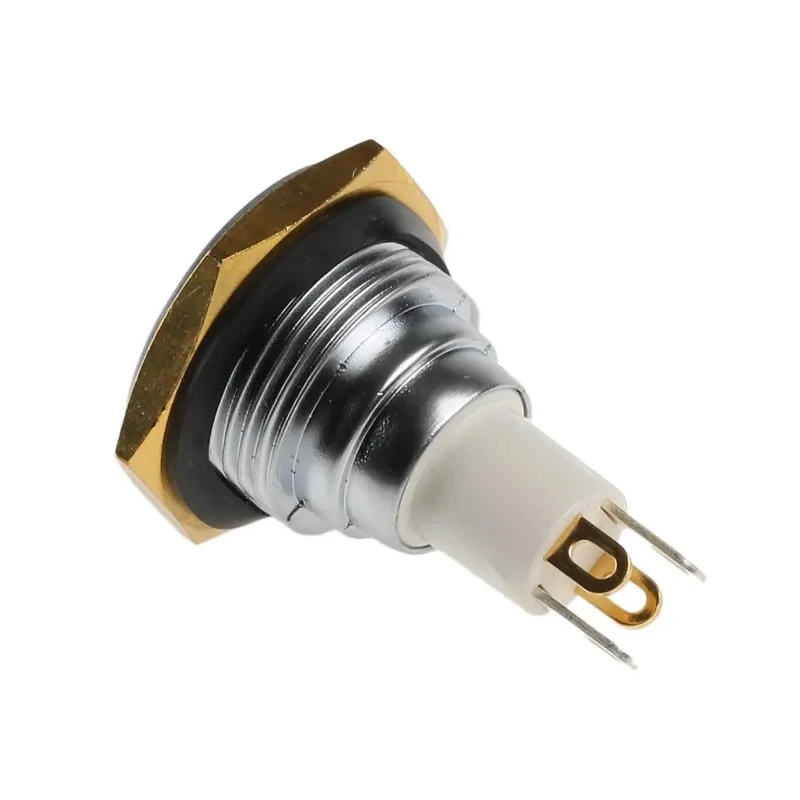

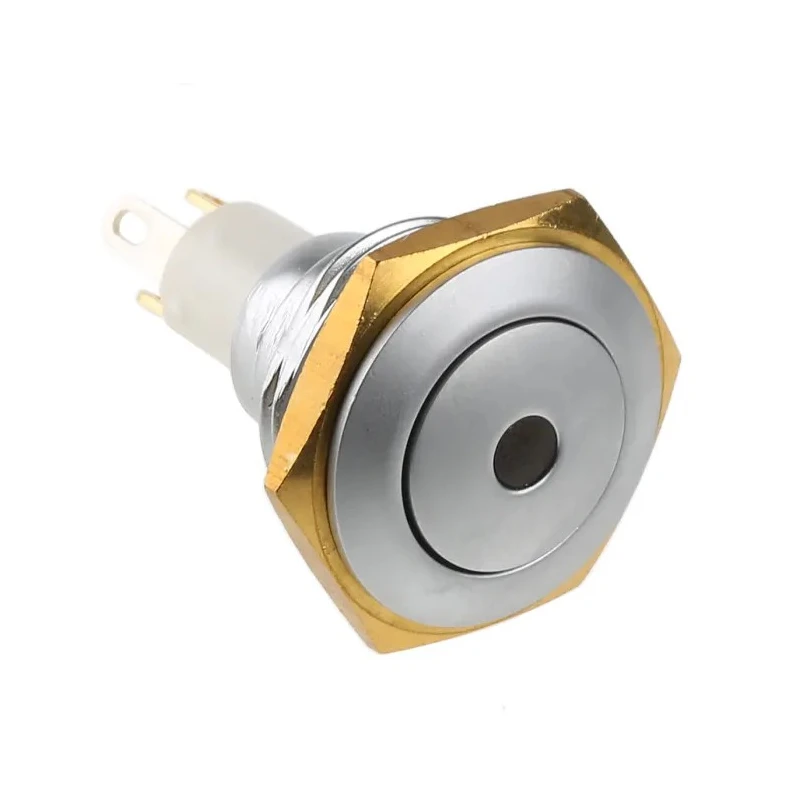

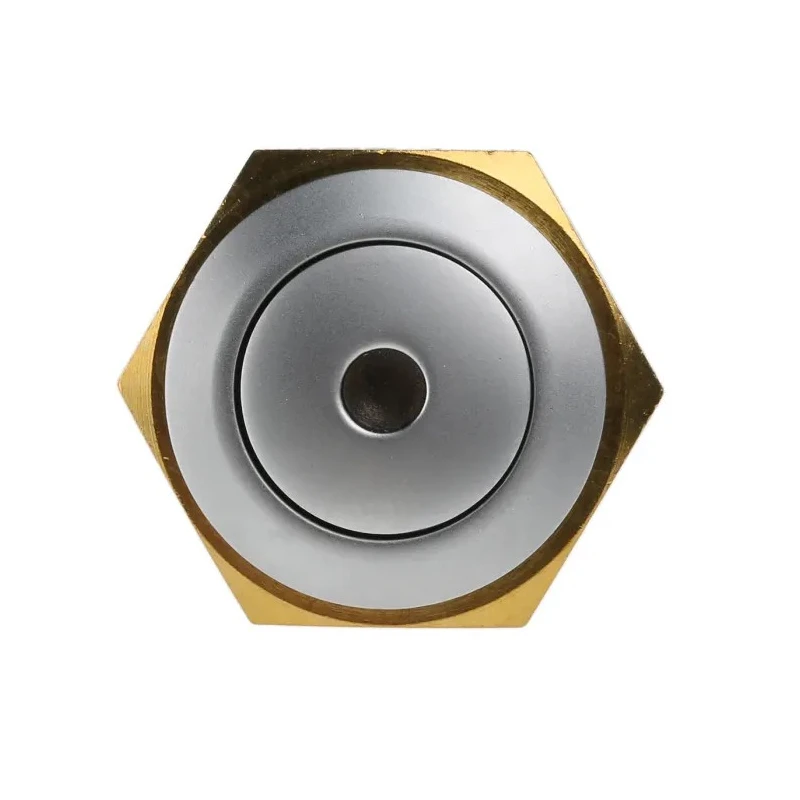

ITW Switches 57 Series Illuminated Miniature Push Button Switch Momentary Panel Mount SPST Green LED 57-112G

Name: ITW Switches 57 Series Illuminated Miniature Push Button Switch Momentary Panel Mount SPST Green LED 57-112G
Brand: ITW Switches
SKU: 141005
Price: 19.03 USD
Availability: InStock



Category Push Button Switches Brand ITW Switches Condition New

Specifications

Country of Origin	India
Brand	ITW Switches
Model	57-112G
IP Rating	IP67
Mount Type	Panel
Series	57
Maximum Operating Temperature	125°C
Contact Configuration	SPST
Switch Configuration	On-Off
Minimum Operating Temperature	-40°C
Panel Cutout Size	14.75 mm
Terminal type	Solder
Standards/Approvals	CSA, UL
LED Colour	Green
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	125V
Actuator Style	Button
Switch Contact Current	400mA
Contact AC Voltage	125V ac

Key Features

The switch features a silver actuator button with momentary operation.
It includes a green LED illumination for clear visual feedback.
The panel cutout size is precise at 14.75 mm for standardized mounting.
Constructed with zinc alloy and velour chrome plating for durability.
Gold plated contacts and terminals ensure reliable electrical performance.
Panel sealed design rated to IP67 protects against dust and temporary immersion in water.
Suitable for applications in industrial control, medical equipment, military, security, food processing, and transportation.
Operates with contact DC and AC voltage up to 125V and contact current of 400mA.

Product Description

ITW Switches 57-112G is an illuminated miniature push button switch from the 57 series designed for momentary operation and panel mounting with a 14.75 mm cutout. This SPST switch features a silver actuator button and a green LED indicator, making it suitable for precise control and status indication in industrial environments.

Manufactured to meet rugged application requirements, this switch is panel sealed to IP67, providing complete protection against dust ingress and resistance to temporary immersion in water. The durable zinc alloy body with velour chrome plating and gold plated contacts ensures extended operational life and reliability even under heavy use conditions.

With operational voltage ratings of 125V for both AC and DC and a contact current of 400mA, the switch is suitable for a variety of electronic and industrial applications including industrial control systems, medical equipment, military devices, security systems, food processing machinery, transportation equipment, and computer hardware.

The product maintains functionality across a wide temperature range from -40°C to 125°C, ensuring performance in diverse and challenging environments. It is certified by CSA and UL standards, underpinning its quality and compliance.

The switch features a momentary action silver actuator button with panel mounting. Green LED illumination for operational status indication. Precise 14.75 mm panel cutout size. Robust zinc alloy body with velour chrome plating.

Gold plated contacts and terminals for durability. IP67 panel sealing for dust and water resistance. Wide temperature operational range: -40°C to 125°C. Compatible with 125V AC/DC and 400mA contact current. Certified to CSA and UL standards.

This switch is an excellent choice for industrial automation, laboratory instrumentation, military systems, and other commercial applications requiring reliable, compact, illuminated push button control devices. Discover more products in the Push Button Switches & Components category at EnvMart for comprehensive industrial electrical solutions.
