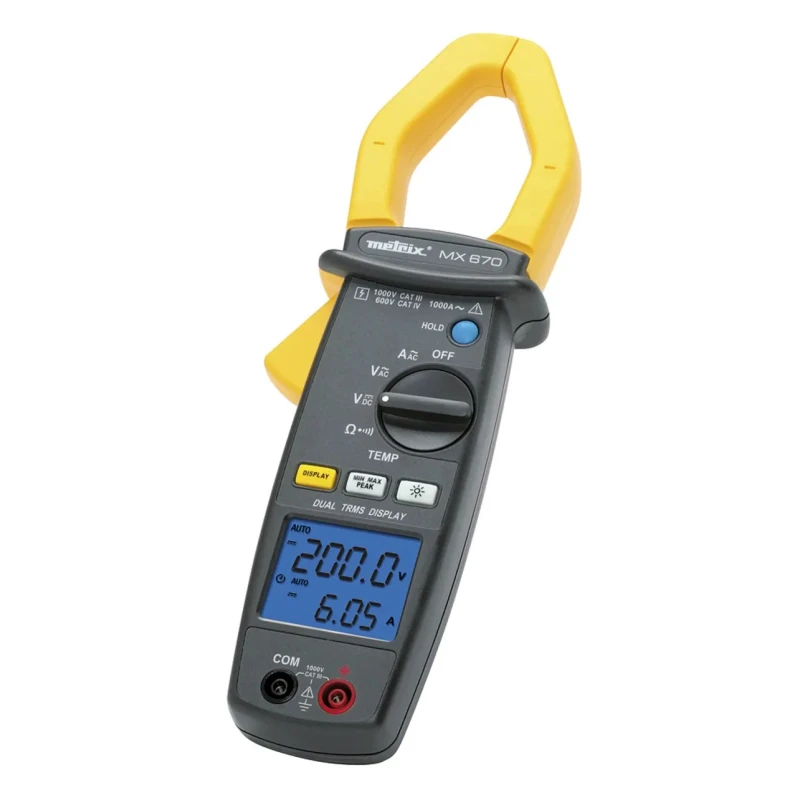

Metrix Clamp Meter MX670, 1.4 kA DC, 1 kA AC, 1400 V DC, 1000 V AC, CAT III CAT IV, Non-Contact Voltage Detector MX670

Metrix MX670 clamp meter is a professional measuring instrument designed for industrial and laboratory electrical testing requiring high accuracy and safety compliance. The device measures AC currents up to 1000 A and DC currents up to 1400 A, handling voltages up to 1400 V DC and 1000 V AC, making it suitable for electrical installation and maintenance in demanding environments.

Its true RMS measurement capability ensures accurate readings of AC and DC currents even in the presence of harmonic distortions. The clamp meter's ergonomic 42 mm jaw opening accommodates thick conductors easily, while the compact 272 mm length and 80 mm width housing allow convenient handheld usage.

The meter supports measurements of frequency, resistance up to 9.999 kΩ, and temperature from -40 °C to +1200 °C via the included K type thermocouple sensor. The Clear LCD display shows simultaneous dual readings, facilitating voltage and current monitoring at the same time.

Safety is paramount with compliance to IEC 61010 standards and CAT III 1000 V / CAT IV 600 V safety categories. Non-contact voltage detection adds an additional layer of safe testing. Its functions include HOLD, AUTO-HOLD, MIN, MAX, Peak, and zeroing for advanced diagnostics.

Supplied with a 9 V alkaline battery, soft carry bag, test leads with 4 mm probes, and K thermocouple sensor, the Metrix MX670 clamp meter is ideal for electrical contractors, maintenance technicians, HVAC engineers, and manufacturing quality control.

Common applications include industrial electrical system troubleshooting, power quality assessments, HVAC system installation, and laboratory test & measurement tasks requiring reliable clamp-on current and voltage readings.

Measures AC/DC current with True RMS accuracy. AC voltage and DC voltage measurements up to 1000 V and 1400 V respectively. Non-contact voltage detector for added safety. Temperature measurement via K thermocouple sensor.

Multiple measurement functions including frequency and resistance. Compact design with ergonomic jaw and dual display. Conforms to IEC 61010 and RoHS standards. Includes battery, test leads, thermocouple sensor, manual, and carry bag.

Explore more measuring tools from the Metrix brand and Clamp Meter category at EnvMart for all your industrial and laboratory electrical measurement needs.
