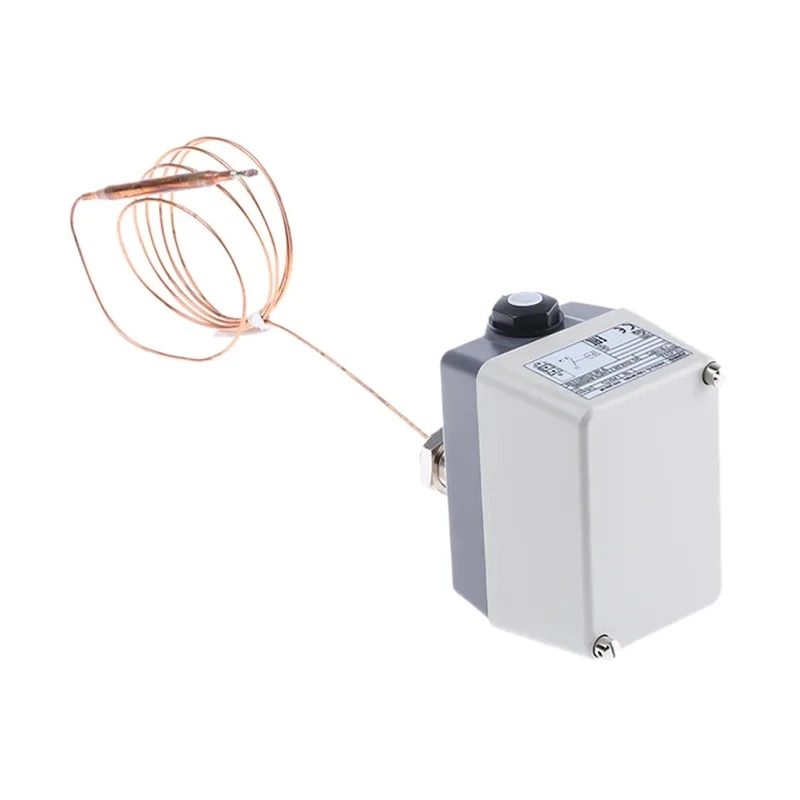

Jumo Surface Mount Capillary Thermostat Safety Temperature Limiter +150°C 1 603021/02-2-043-30-1000-40-10-00-00-000-00-6/000

Jumo 603021/02-2-043-30-1000-40-10-00-00-000-00-6/000 Capillary Thermostat is a surface-mounted temperature limiter designed to provide reliable safety monitoring in industrial and automation environments. It utilizes a capillary sensing element coupled with a microswitch to detect and limit temperature accurately up to +150°C, with manual reset functionality ensuring safe operation.

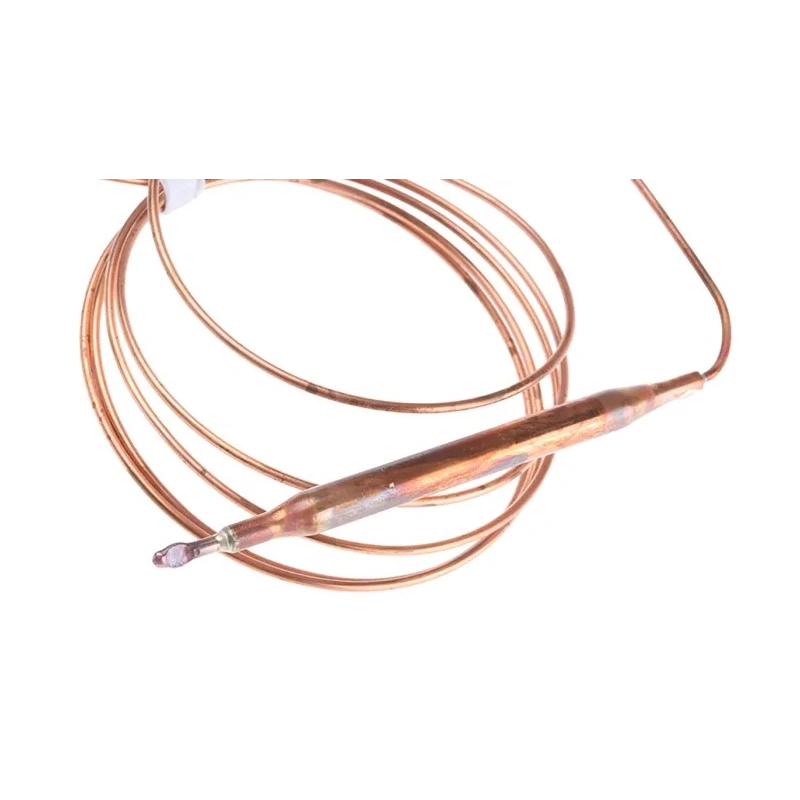

This thermostat features a 1 NO/1 NC contact configuration rated for 10A at 230V AC and DC, supporting versatile switching requirements. Its IP54 rated housing protects against dust and water, making it suitable for demanding industrial conditions. The device includes a 1000 mm long capillary tube allowing convenient placement of the sensing element away from the switch.

The switching point is adjustable internally, allowing fine calibration within the temperature range of 20°C to +150°C. The thermostat operates with a differential of 3-4%, preventing rapid cycling and ensuring stable temperature monitoring. Screw terminals and surface mount design facilitate straightforward installation.

Compliance with standards such as 97/23/EC (for ATH.-20 and ATH.-70 models) and DIN EN 14597 underlines the unit’s suitability for safety-critical applications. It serves as a safety temperature monitor, safety temperature limiter, temperature limiter, and temperature monitor in diverse industrial sectors including electrical automation, heating control, and safety systems.

Equipped with a 1 NO/1 NC contact configuration for switching functions. Rated for a contact current of 10A at 230V AC/DC. Features a 1000 mm capillary tube for remote sensing. IP54 housing provides protection against environmental ingress.

Manual reset type ensures safety in over-temperature conditions. Temperature range adjustable between 20°C and +150°C with a 3-4% differential. Surface mount installation with screw terminal connections. Conforms to relevant European safety and industrial standards.

This Jumo capillary thermostat is ideal for industrial automation, electrical systems, manufacturing processes, HVAC safety controls, and other applications requiring precise temperature safety monitoring and limiting.
