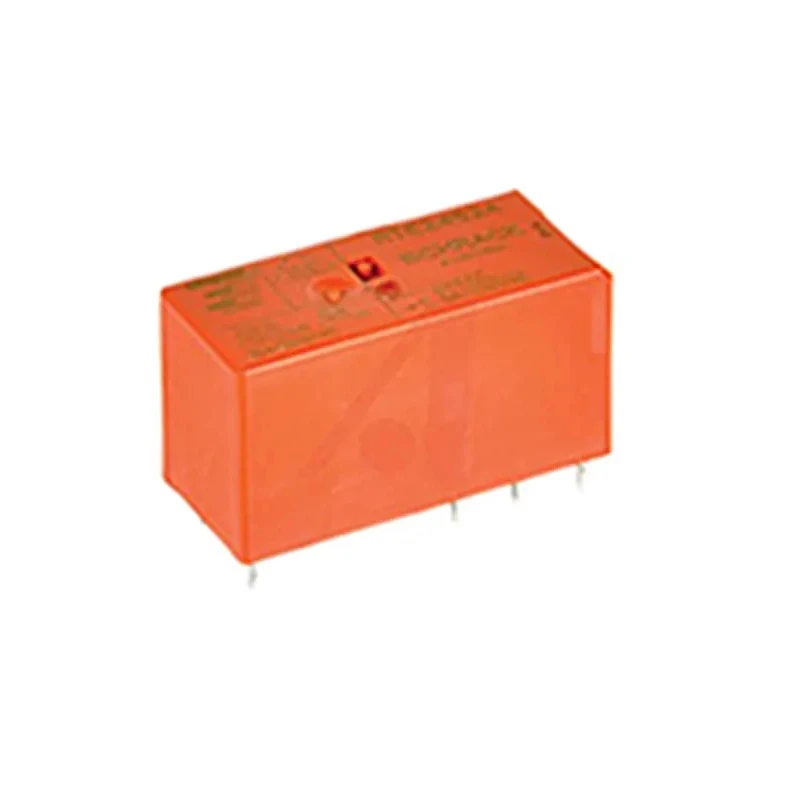

TE Connectivity PCB Power Relay, 24V AC Coil, 8A Switching Current, DPDT RTE24524

TE Connectivity RTE24524 PCB Power Relay offers a 24V AC coil voltage and 8A switching current in a DPDT contact configuration. This power relay is designed for efficient PCB mounting with a solder terminal type, supporting up to 400V AC switching voltage and 2kVAC switching power. It combines compact dimensions (29mm length, 12.7mm width, and 15.7mm height) with robust silver nickel alloy contacts, ensuring high reliability and durability.

The relay operates efficiently in a temperature range from -40°C to 70°C and features a coil resistance of 350Ω with coil power consumption of 0.76VA. Certified to meet VDE and cULus standards, it ensures compliance with safety and quality for industrial and commercial applications.

TE Connectivity’s RT Series includes through-hole mounting PCB power relays with various configurations. The RTE series, including this model, uses 5mm pinning and wash tight coil insulation for enhanced protection in demanding environments. Suitable applications include interface control, automation systems, domestic appliances, security lighting, and heating control systems, providing reliable switching performance in varied uses.

The contact material is silver nickel alloy, chosen for optimal electrical conductivity and long operational life. Installation is streamlined due to its solder terminal design and flux-proof pinning, ensuring compatibility with automated assembly processes.

This relay is manufactured in Austria with rigorous quality controls, ensuring consistent performance for critical applications. It is supplied in tubes, ready for efficient insertion into machinery to improve production throughput.

This relay is designed for PCB mount with a solder terminal type. It supports switching AC voltage up to 400V AC and switching power of 2kVAC. Operates reliably between -40°C and 70°C ambient temperatures. Constructed with silver nickel alloy contacts to ensure durability and performance.

Measures 29mm length, 12.7mm width, and 15.7mm height fitting compact PCB designs. Coil resistance is rated at 350Ω with a coil power of 0.76VA. It meets VDE and cULus standards and approvals for safety and reliability. Suitable for applications in automation, interface, heating systems, security lighting, and domestic use.

Features 5mm pinning and wash tight coil insulation for durability in demanding environments. Manufactured in Austria with high-quality materials and engineering. Explore more products in the Power Relay category at EnvMart for high-quality components designed to meet industrial and commercial automation needs.
