Samtec TSM Series Vertical Surface Pin Header 14 Contacts 2.54 mm Pitch 2 Row Unshrouded TSM-107-02-T-DV

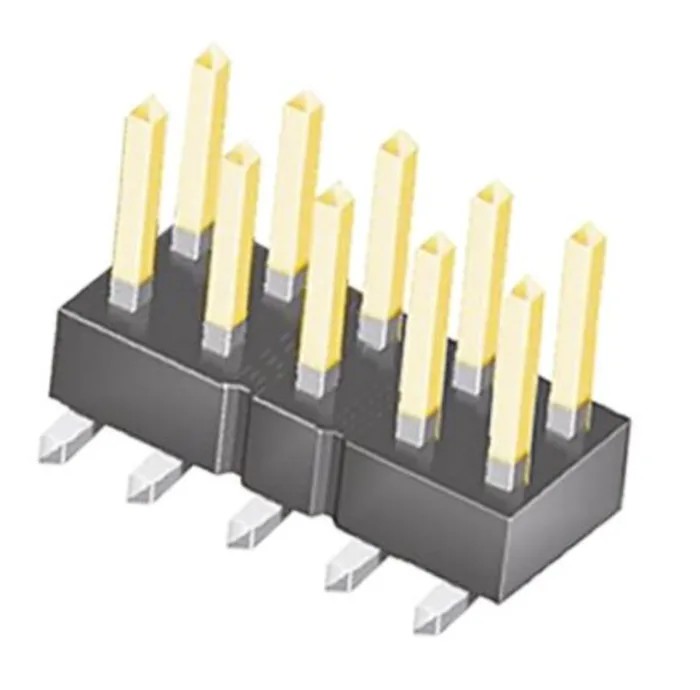

Samtec TSM-107-02-T-DV is a precision vertical surface mount pin header designed for high-reliability electronic assembly applications. Featuring 14 male contacts arranged in 2 rows with a 2.54 mm pitch, this unshrouded connector offers easy board-to-board interface with robust mechanical and electrical properties.

The insulating body is crafted from black liquid crystal polymer, combining high temperature resistance with mechanical strength. Contacts are made of phosphor bronze, ensuring excellent conductivity and durability. They are plated with either gold or tin over a 50 microinch nickel barrier plating, providing corrosion resistance and reliable termination.

This connector supports a broad temperature range from -55°C up to 125°C depending on plating, making it suitable for industrial, telecommunications, and consumer electronics. The vertical orientation and surface mount termination enables compact PCB layouts and simplified assembly processes.

Operating voltage is rated at 475 V, allowing use in moderate power signal and control applications. The unshrouded design offers ease of mating and unmating, ideal for prototyping and custom configurations.

The Samtec TSM series is RoHS compliant, meeting stringent environmental regulations for hazardous substances. This ensures the connector is safe for use in a wide range of applications including industrial controls, instrumentation, computing, and communication equipment.

The housing is made from liquid crystal polymer delivering reliable insulation. Contact material phosphor bronze provides excellent electrical performance. Gold or tin plating over nickel ensures durable contacts. 14 contacts organized in 2 rows with 2.54 mm pitch for precision connectivity.

Designed for vertical orientation and surface mount PCB soldering. Wide operating temperature range supports harsh environments. Rated for 475 V operating voltage suitable for multiple applications. Unshrouded design for ease of use and accessibility.

For engineers and designers requiring a reliable, high-quality PCB Pin Header, the Samtec TSM-107-02-T-DV provides exceptional performance and flexibility. Explore more PCB header solutions in the Electronics Components section at EnvMart.
