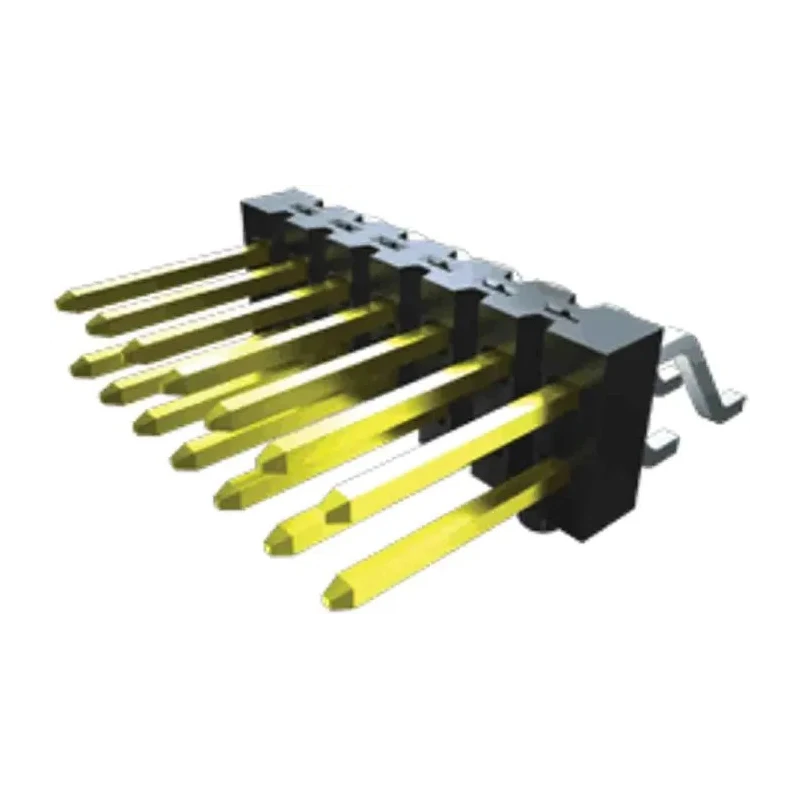

Samtec TSM Series Vertical Surface Mount Pin Header 14 Contacts 2 Rows 2.54 mm Pitch Unshrouded TSM-107-01-T-DV-A

Samtec TSM-107-01-T-DV-A is a high-quality vertical surface mount pin header belonging to the TSM Series designed for reliable electronic board-to-board interconnections. It features 14 male contacts arranged in two rows with a precise 2.54 mm pitch, making it suitable for various PCB connector applications in industrial and commercial electronics.

This pin header utilizes a black Liquid Crystal Polymer housing material that provides excellent insulation, mechanical strength, and temperature resistance. The contacts are crafted from phosphor bronze and plated with either gold or tin over 50 microinches of nickel, ensuring durability and superior electrical conductivity over extended use.

Operating temperatures range from -55°C up to 125°C, accommodating different plating options: tin-plated versions operate up to 105°C while gold-plated versions support up to 125°C. The connector is designed for surface mount solder-type termination, featuring an unshrouded male contact for easy PCB integration.

This component is rated to handle up to 475 volts, supporting robust electrical performance and reliability in complex electronic assemblies. The unshrouded design allows for straightforward mating with female connectors and is widely adopted in board-to-board connection systems.

The Samtec TSM Series pin header is RoHS compliant, confirming its adherence to environmental safety requirements, making it suitable for use in modern electronics manufacturing and assembly industries.

The connector features a vertical orientation suitable for surface mount PCB applications. The housing is constructed from high-grade liquid crystal polymer for insulating and physical durability. Contacts are gold or tin plated phosphor bronze ensuring excellent conductivity and corrosion resistance.

The device supports a broad operating temperature range from -55°C to 125°C based on plating choice. This pin header includes 14 male pins organized in two rows spaced at 2.54 mm pitch. Rated at 475 volts for reliable performance in demanding electronic environments.

Designed as an unshrouded type for easy access and mating with complementary connectors. Ideal for electrical component assemblies, electronic manufacturing, and industrial equipment connection needs. Explore our extensive catalog for PCB connectors and electronic components with precision and quality assurance at EnvMart.
