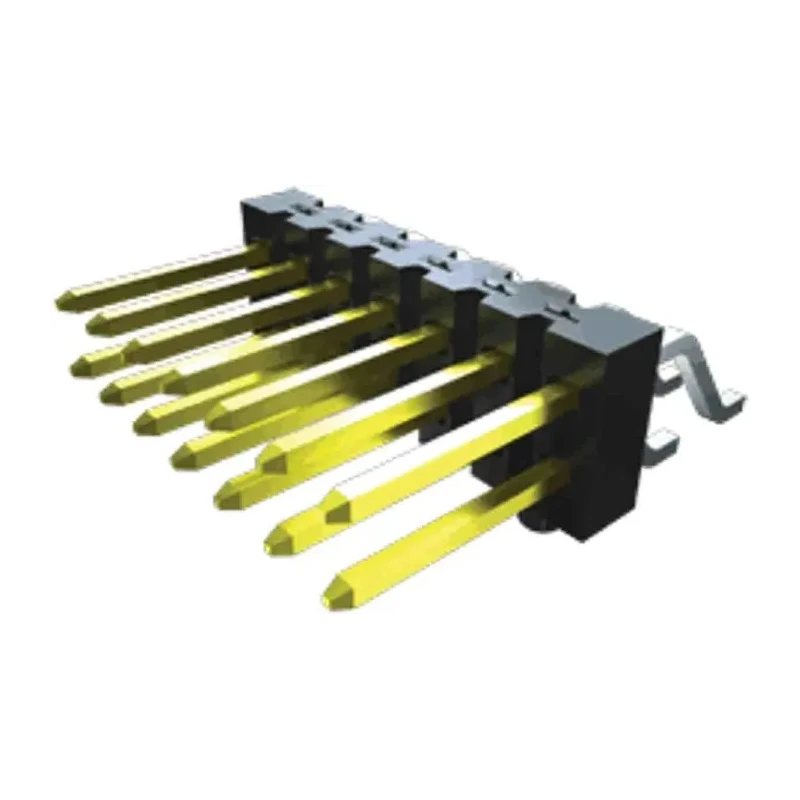

Samtec TSM Series Vertical Surface Pin Header 10 Contact, 2 Row, 2.54 mm Pitch, Unshrouded TSM-105-03-L-DV-P-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 5.4A |
| Model | TSM-105-03-L-DV-P-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Plating used | Au or Sn over 50 μ" (1.27 μm) Ni |
Key Features
- Designed for vertical orientation on printed circuit boards.
- Surface mount type ensures secure board connection.
- Constructed with black liquid crystal polymer housing for durability.
- Phosphor bronze male contacts plated with gold for reliable conductivity.
- Supports a current rating of 5.4 A and voltage up to 475 V.
- Operational temperature range from -55°C to 125°C ensures wide environmental tolerance.
- Unshrouded design offers direct access to contacts.
- Termination type is solder for firm and reliable connections.
Product Description
Samtec TSM-105-03-L-DV-P-TR is a high-quality vertical surface pin header designed for robust printed circuit board (PCB) interconnections. Featuring 10 gold-plated male contacts arranged in 2 rows with a 2.54 mm pitch, this connector provides secure, reliable electrical connections suitable for industrial, electronic assembly, and manufacturing applications.
The housing is crafted from durable black liquid crystal polymer, offering excellent mechanical strength and thermal stability. Contacts are made from phosphor bronze and plated with gold or tin over a 50 microinch nickel underplate, ensuring optimal conductivity and resistance to corrosion.
This pin header supports a current of 5.4 A and can withstand voltages up to 475 V, making it suitable for various power and signal transmission scenarios. Its unshrouded male design provides easy access for mating connectors, while the surface mount termination ensures a firm bond to the PCB.
Operating over a wide temperature range from -55°C to 125°C, this connector is highly versatile and reliable in harsh environments. It is fully RoHS compliant, ensuring it meets environmental safety standards.
Vertical orientation for PCB mounting supports compact assembly layouts. High-quality materials and plating for durability and excellent electrical performance. Gold or tin plating options ensure corrosion resistance and longevity.
Suitable for industrial, manufacturing, laboratory, and electronic applications. Unshrouded design facilitates easy connection inspection and maintenance. Provides stable and reliable board-to-board connectivity.
This product is an ideal choice for electronic engineers and manufacturers requiring a dependable, high-performance pin header for printed circuit boards. Explore more in our PCB Headers category at EnvMart for complementary connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 5.4 A and can withstand voltages up to 475 V.
The operational temperature range is from -55°C to 125°C, making it suitable for various environmental conditions.
This pin header features a pitch of 2.54 mm and has 10 contacts arranged in 2 rows.
The housing is made from black liquid crystal polymer, while the contacts are constructed from phosphor bronze and plated with gold.
It uses solder termination for secure and reliable connections to the PCB.
This model is unshrouded, providing direct access to the contacts for easy connection.
It is designed for vertical orientation on printed circuit boards.
It is suitable for industrial, manufacturing, laboratory, and electronic applications requiring reliable board-to-board connectivity.
The country of origin for this pin header is India.
It is designed for board-to-board connectivity.
Contacts are available with gold or tin plating over a nickel underplate, ensuring optimal conductivity and corrosion resistance.
This model features a surface mount type for secure board connection, but specific dimensions are not provided in the data.
